Specifications
bottle washing filling capping machinefilling:high accuracy,without effect of the "last drop"
delivery time:50days
The filling line is composed of bottle feeding machine,cylinder ultrasonic bottle washing machine ,filling machine,stoppering machine and capping machine.
1. bottle feeding machine, cylinder ultrasonic washing machine
Bottle feeding machine:
Dimension:800(L)×800(W)×1000(H) mm
Weight:50KG
It can be customer-made.

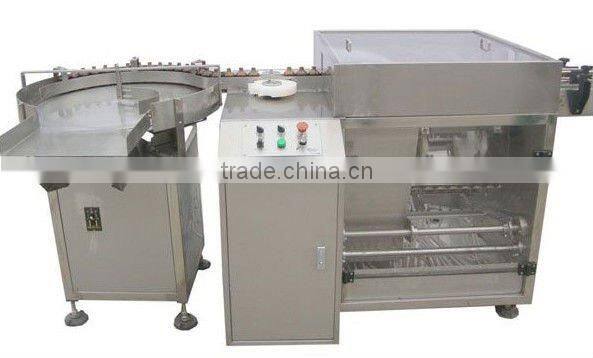

Cylinder ultrasonic washing machine:
Brief Introduction
1.applied for 20-500ml round bottles and shouldering irregular bottles to inside and outside washing
2.adopt twice water(disinfectant liquid and water) and one time air washing ,or three time water((disinfectant liquid and water) ) and one time air washing ,adopt purified compressed air to dry, to reach the requirement of manufacturing technique.
Main Technical Parameters
Application Bottles |
20-500ml |
Productive Capacity |
≤120bottle/min (depend on bottle size) |
Power Supply |
380V, 50HZ |
Power |
1.8KW |
Water Consumption |
0.6-1t/h |
Compressed Air |
15m³/h, 0.3-0.4kg/cm³ |
Machine Weight |
500KG |
Dimension |
1200(L)×1100(W)×1200(H) mm |

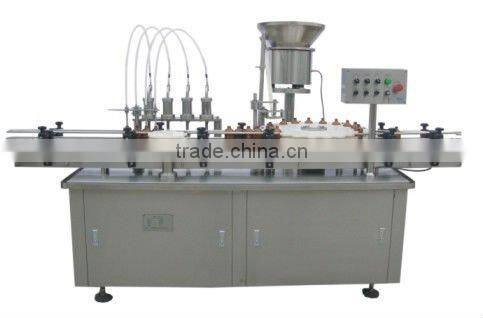

2. Filling and Stoppering Machine
Brief introduction:
1.used for filling and stoppering for 20-500ml glass or plastic bottle (in any shape).
2.liner filling,accurate filling volume,mechanical stoppering,steady performance and no contamination .
3.easy maintenance and can be connected to other equipments to compose production line
Main Technical Parameters:
Applied Bottles |
20-500ml |
Productive Capacity |
≥99% |
Filling Tolerance |
4 nozzles (can increase the nozzle according to the yield capacity) |
Stoppering nozzle |
one |
Qualified Stoppering Rate |
≥99% |
Power Supply |
380V ,50HZ |
Power |
1.5KW |
Gross Weight |
700KG |
Dimension |
2440(L)×1300(W)×1700(H) mm |

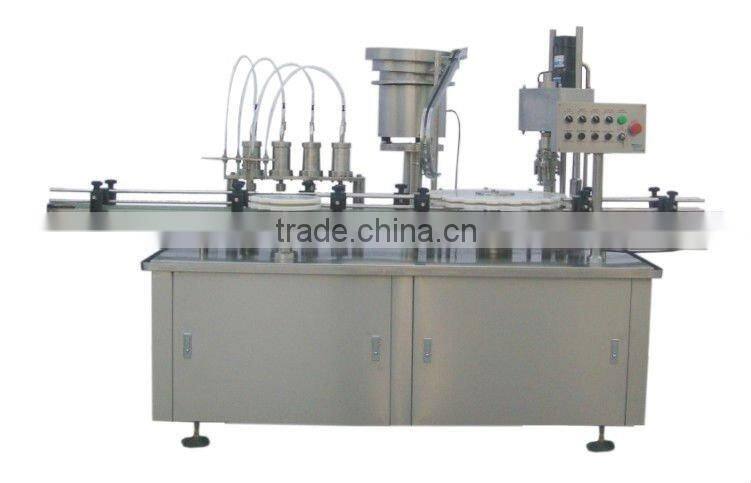

3. Capping/Screw-capping machine
Brief Introduction
1.can be applied for different cap in different material and different specifications
2.adopt identity torsion capping head, the capping device could not hurt the cap .
3.use 3-roller type capping knife ,it is easy to regulate the pressure.
4.applied for metal cap ,screw type cap, pilfer-proof cap,pressing cap,etc.
Main Technical Parameters
Applied Bottles |
20-500ml |
Production Capacity |
40-60 bottles/min |
Quarried cap putting |
≥99% |
Qualified capping/screw capping |
≥99% |
Power Supply |
380V, 50HZ |
Power |
1.6KW |
Gross Weight |
600KG |
Dimension |
2000(L)×1300(W)×1700(H) mm |
