Specifications
plete production line2.Feeding-ultrasonic washing machine-filler-seal-labeler
3.Material is all SS.
Complete production line
Brief Introduction:

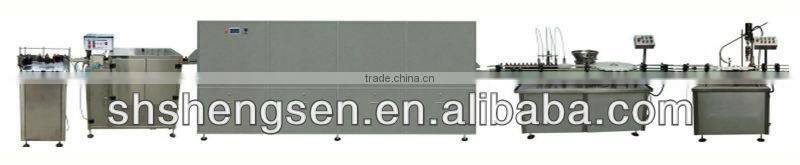

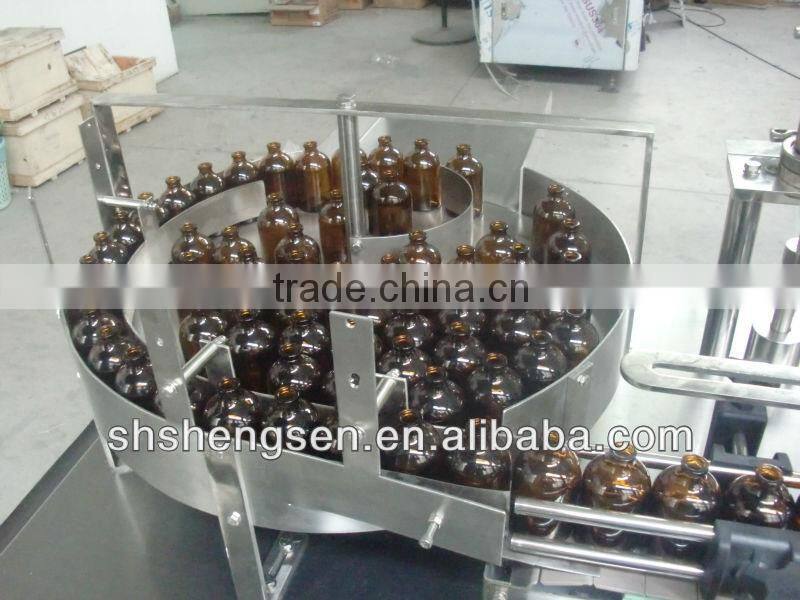

1.This line is composed of bottle feeding machine ,cylinder ultrasonic washing machine ,filling stoppering machine,capping machine and labeling machine etc.
2.This line is applied to 20-500ml bottle feeding,dry and sterilizing ,filling stoppering ,capping and labeling.Only changing some mould the machine could be applied for different size bottles.
3.The line is applied for glass or plastic bottle;it has a wide application and easy adjustment ,widely used in injection and vaccine,etc.
4.The yield capacity of the whole line depends on the bottle size ,shape and liquid viscosity.
5.The tunnel sterilizer ,protection covers and laminar flow are for optional.
MainTechnical Parameters
Application |
20-500ml |
Yield Capacity |
40-60pcs/min 80-120pcs/min |
Cleanness |
>99% |
Filling Tolerance |
0-2% |
Qualified stoppering rate |
≥99% |
Qualified cap putting rate |
≥99% |
Qualified capping/screw capping rate |
≥99% |
Power Supply |
380V ,50HZ |
Power |
9KW |
Dimension |
8000(L)×1300(W)×1800(H) mm |
