Specifications
PL1600 Concrete Batching Plant/ Concrete Batcher1.High accuracy
2.Mixing uniform and thoroughly

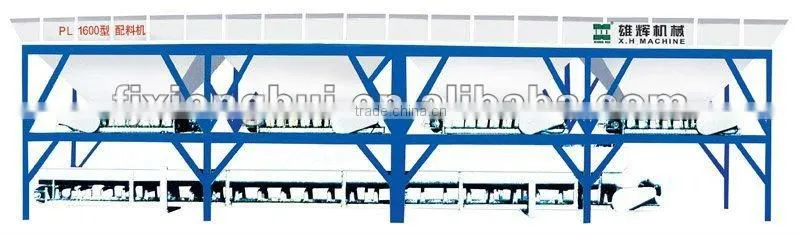

PL1600 Concrete Batching Plant/ Concrete Batcher
The batching system of the machine is equipped with weight control devices and sensors, which can process materials with quantitative, batching, control, and automatically revise. The machine has advantages of reasonable layout, compact structure, easy operation, accurate batching, and reliable control.
Detailed production description:
(1)Model: PL1600-3
(2)Volume of weighing Hopper: 1600L
(3)Volume of storing Hopper: 3*3.7m3
(4)Productivity(m³/h)(Dry Materials): 80m3/h
(5)Batching Accuracy: +/- 2%
(6)Max. Weighing Value (Kg): 3000 kg
(7)Type of Batching Materials: 3
8Charging Height (mm): 2734mm
9Conveyor Speed (m/s): 1.6m/s
(10)Power (kw): 11kw
(11)Total Weight(Kg): 6500kg
(12)Outline Size(mm): 9360*2250*2880
