Introduction of automatic lined carton machine :

1. Automatic carton package machine can be singly use, applied to various specifications of bottles, pots, cans, tubs, combined use with automatic packing machine and filling machine, to complete the back-end packing line.

2. The bottled water, juice, beer, oil, milk, medicine, shampoo etc etc or canned beer, juice, milk, food etc can be automatically arranged and packed into the carton according to the box filler. And the filled carton will automatically sent to the conveyor roller connected with the unmanned automatic production line.

3. Automatic box filler or carton filler is widely used in medicine, food, daily chemicals, and other light industry.

General Specification of automatic carton package machine:

The box filler is mainly adopted Pneumatic equipments, electrical as auxiliary working method; It is in small overall size and nice appearance, low power consumption. It is working stable and operated easy. Conveyor is driven by rod less cylinder produced by TPC-Korea.

 1. Bottle grasper:

 According to different bottle shape, bottle grasper is specially designed, 2 suits of air bag style grasper head, no injury to bottles;

2. Bottle grasping:

  Bottler grasping is driven by double trip cylinders, that means there is designed height difference for bottle grasping area and box filling part;

3. Conveyor machine:

  Bottle grasping suit and grasping elevator is droved by conveyor machine, going between bottle grasping area and box filling area, droved by the rod less cylinder produced by YSC-Korea.

4. Auto bottle divider:

 Controlled by mini motor, divide incoming bottles in 4 ways, avoid stuff and jam efficiently, enhance working efficiency.

5. Conveyor:

 Driven by asynchronous motor, according to different request, use conducer and contactor to control, will apply auto bottle supply, auto bottle arranging, auto carton supply and auto box out;

6. Bottle grasping suit:

 2 suit of grasping devices, each with 750ml-12bottles, distance divided by cylinder drive;

Technical parameter of carton package machine:

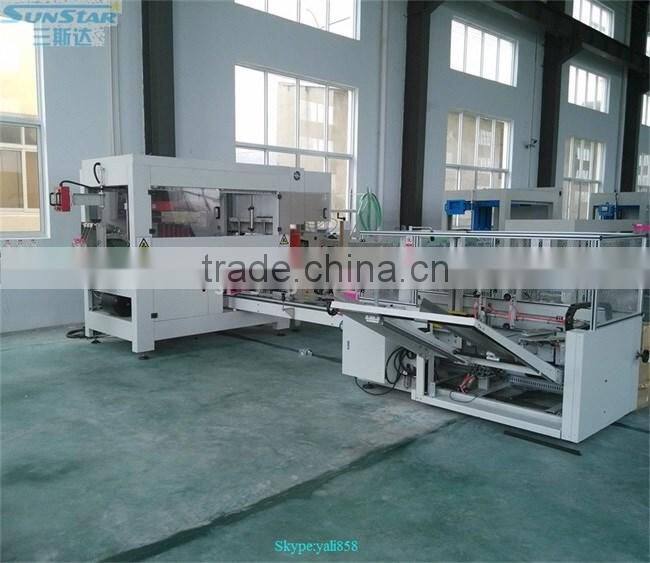

Pictures of carton forming machine:

Automatic carton packing machine

Automatic carton packer complete with automatic bottle divide part

The bottom of automatic carton packaging machine

Automatic bottle divide part of box filler

Automatic bottle grasper

Automatic box opener, box packing machine and box sealing machine
