Double Sides Adhesive Labeling Machine
Product introduction:
Double Sides Adhesive Labeling Machine---Two Sides labeler uses self-adhesive label, can simultaneously label front and back of square, flat, round and ellipse bottles. Can also label on only one side. Two sides labeler is manufactured in high quality control and setting the developed control system. Every system designs all achieve the best condition and the best stable in any environment. Even in the fast speed, the machine could remain exactly labeling.
Specialty:
1.Adopting Germany SIEMENS PLC control unit
2.Adopting easy operation large touch sensitive screen
3.Adopting Germany label sensor
4.Adopting Japan object sensor
5.The machine body is SUS304 stainless steel and 6063 aluminum alloy structure.
6.Labeling head can deflex ±20o to suit for tapered bottles
7.Can be equipped with coding machine or printing machine, print clearly. (optional )
8.High labeling speed and high precision
9.Can be operated alone or contract with the production line.
Technical parameter:
Standard model:STB-200
Label width(max):180mm
Label length:10-300mm
Conveyer belt width:120mm
Diameter of bottle(max): 110mm
Outside diameter of label roll(max): 350mm
Inside diameter of label roll: 76mm
Labeling speed(max):21m/min
Accuracy of labeling:±1mm
Overall size(L*W*H):3000*1400*1500mm
Product name:
Double sides labeling machine, two sides labeling machine, adhesive labeling machine, two sides labeler, self-adhesive labeler
Product details picture:
Double sides self-adhesive label sticker machine

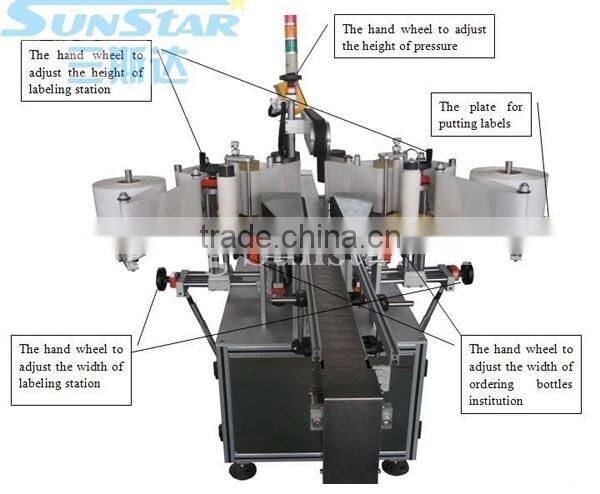

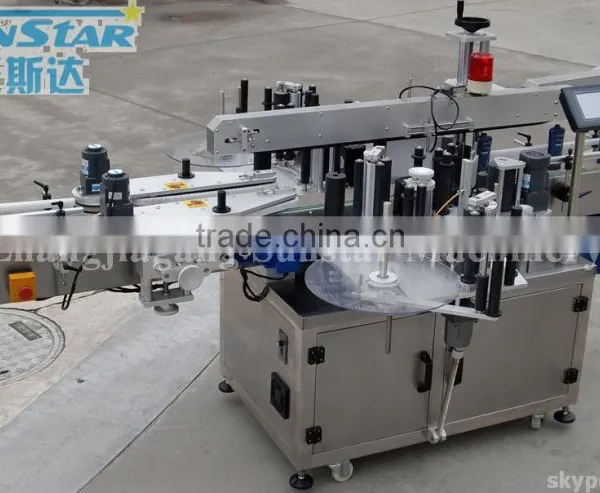

Double Sides Adhesive Labeling Machine details
Self-adhesive labels
Sticked double labels bottle
...
