Skype nancyhyy88 CAD Garment Cutting Machine,Fabric Cutting Laser
CW1610 CAD Garment Cutting Machine,Fabric Cutting Laser home textile
2, CW-1509 technical parameters:
Model: |
CW-1509 |
Processing area: |
1500 mm x 900 mm |
Laser power: |
60W-80W |
Laser type: |
Closed CO2 laser tube |
Cutting speed: |
0-800mm/s |
Engraving speed: |
0-1000mm/s |
Position accuracy: |
<0.02mm |
Image format: |
DXF/ PLT / BMP/ AI / HML / DST |
Work voltage: |
220 ±10% 50Hz(60Hz) |
Cooling system: |
Enforce water cooling and protect system |
Whole machine power: |
1500W |
Weight: |
330KG |
Work temperature: |
1°C-45°C |
Work humidity: |
5% - 95% Non-condensate water |
Machine size: |
2100 x1500x1100 mm |
3,Applicable industry:
This series o CAD Garment Cutting Machine,Fabric Cutting Laser is suitable to professional user who is concerning much about engraving and
cutting effect in garment,leather,clothtoy,computerized embroidery and clipping,model,art work,
and. decoration,architecture upholster,package and printing,paper products and other industries

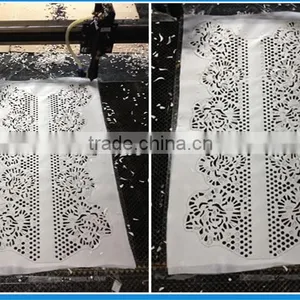

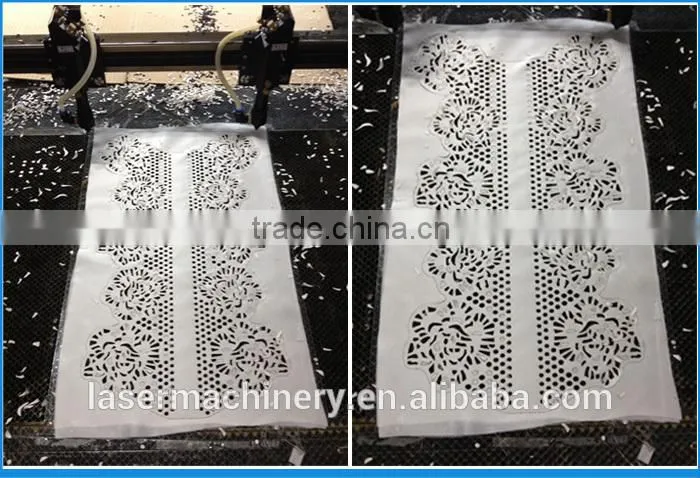

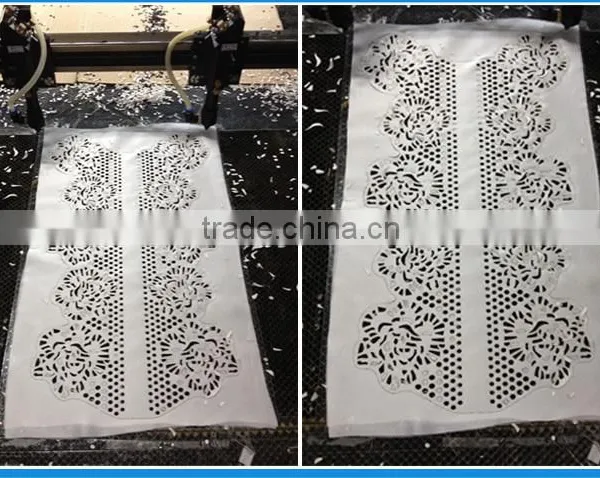

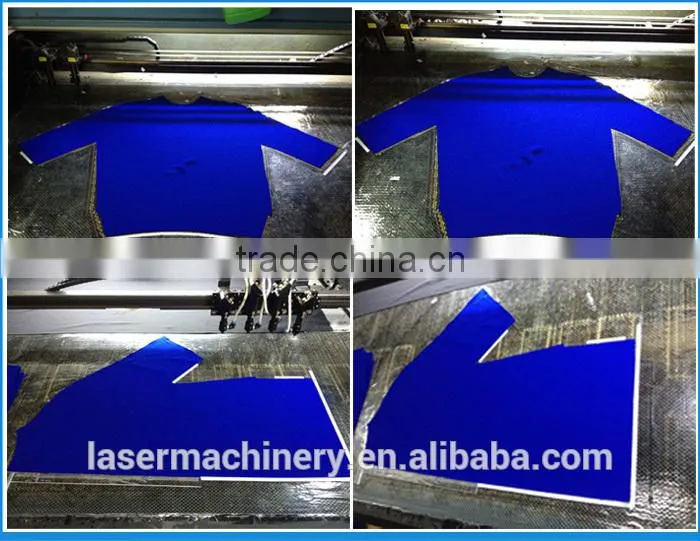

4, China processing sample:
5,Standard Accessories:
1,laser tube: 1pcs Closed CO2 glass laser tube in 80W-150W
2,Cardinal Plate:1pcs CX(self-development)
3,Software:1pcs
4,Cooling system:1pcs CW-5000 type industry water tank
5,Air-exractor:1pcs
6,Air pump:1pcs
7,Lens:3pcs reflector lens and 1pcs converging Lens.
III,Laser cutitng machine's parts be followed:
Plate:stainless steel plate, steel mesh backplane According to the different sectors.

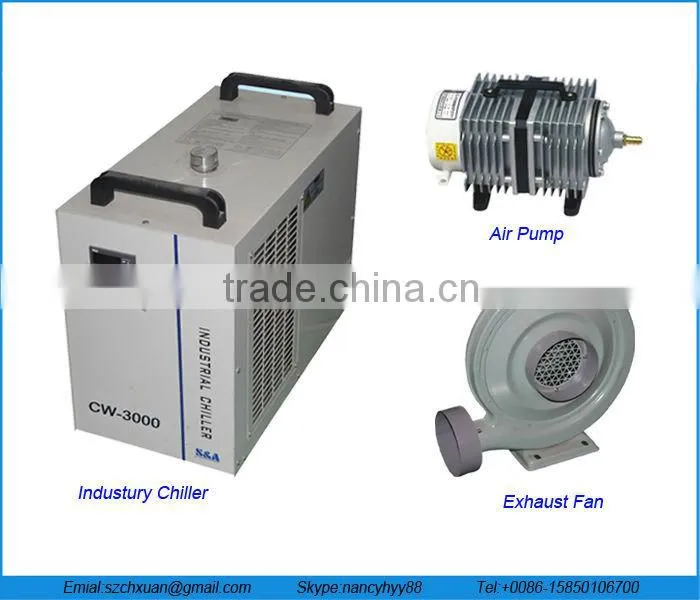

Functions:1,Blower:Draining the exhaust and dust, Adsorption is cutting objects at the same time.
2,Exhaust pipe : connected machines and fans Will exhaust gas emissions
The water cooler:To the laser tubes for cooling,high temperature alarm
Air Pump or Compressor : to be cut Cool the surface, blowing out the dust Focusing lens protection
A cloth rack:The textile fabrics, Automatic Feeding type
Suzhou Chuangxuan laser technology co., ltd is a integrated laser industrial servicer, we
specialized in the professional field of laser service such as design, produce and sale etc.
We are producing machines, laser marking machines; our products and service are widely existed
in every light industry.Such as wood,bamboo,card,acrylic,plastic,textile,garment,wedding dress,
clean loth and metal and non-metal marking.
