Wxd3590 6.3mm 100k Alternatives B104 Potentiometer of Bourns

Name: Wxd3590 6.3mm 100k Alternatives B104 Potentiometer of Bourns
Brand: Bonens
SKU: 126970107
Availability: InStock

US$ 0.98 - 1.6 MOQ: 25 Pieces

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

Bonens

Model Number:

WXD3590S

Tong Yue Xin Commercial And Trading Co., Ltd. (Chengdu)

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name Bonens

Model Number WXD3590S

Type Rotary Potentiometer

Technology Wirewound

Resistance 100ohm~100KΩ

Resistance Tolerance ±2%, ±5%

Rated Power 2W (70°C)

Max. Operating Voltage 500V (DC or AC peak value)

Operating Temperature -55°C~+125°C

wxd3590 6.3mm 100k alternatives b104 potentiometer of Bourns

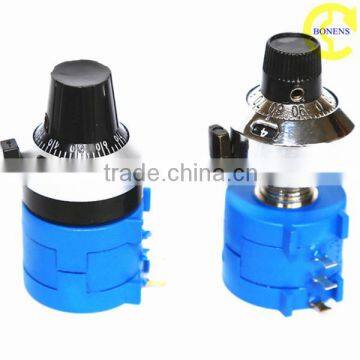

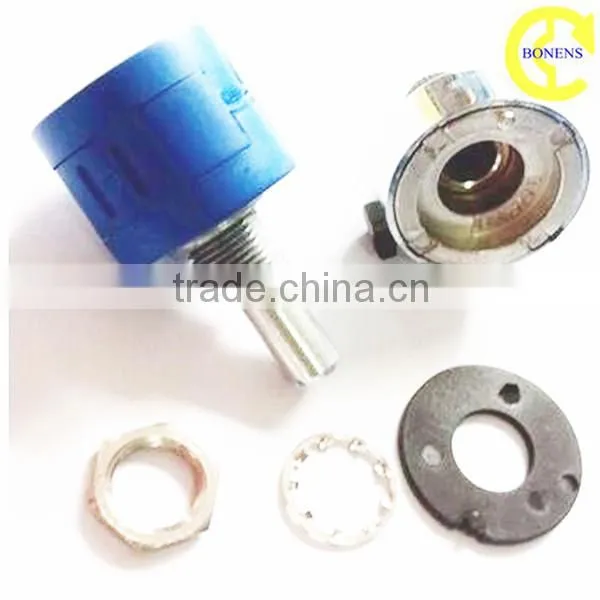

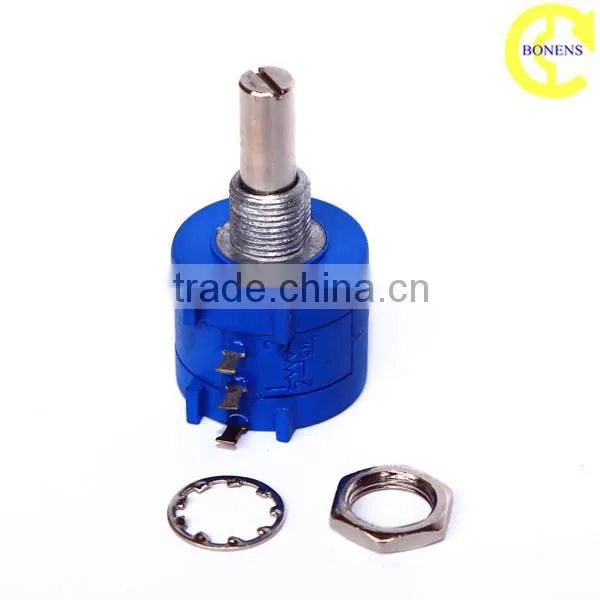

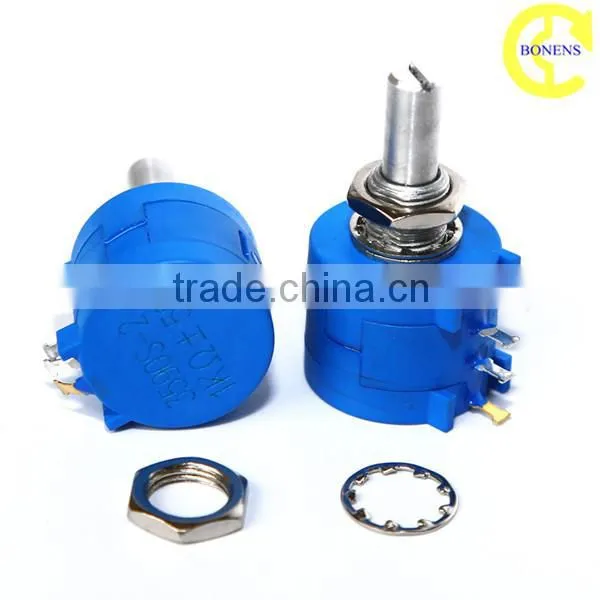

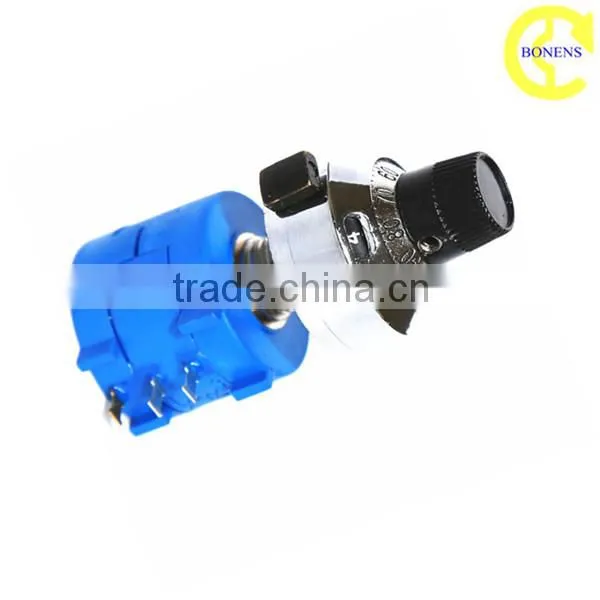

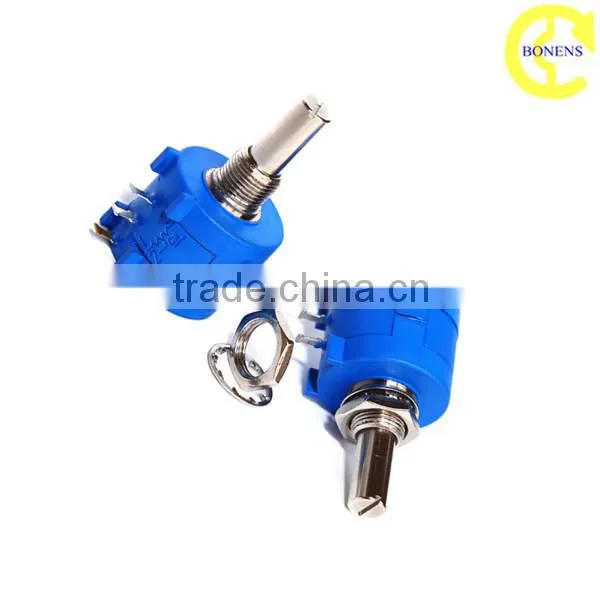

♦Wxd3590 pictures:

♦Wxd3590 Drawing:

♦Wxd3590 Data sheet:

Electrical Characteristics	Range of nominal resistance	100~100KΩ
	Resistance tolerance	±2%, ±5%
	Terminal resistance	≤2%R or 5Ω
	Linear accuracy	±1%, ±0.5%
	Electrical angle	3600°±10°
	Insulation resistance	≥ 200MΩ
	Withstand voltage	500V (DC or AC peak value)

Environment Characteristics	Rated power	2W (70°C)
	Temperature range	-55°C~+125°C
	TCR	±100×10-6/°C
	Temperature shock	ΔR≤±3%R
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Moisture proof (GJB306A- 96-Method106, not for 7a, 7b inapplicability)	ΔR≤±3%R, Insulation Resistance≥100MΩ
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, Electrical break≤100μS
	Rotational life(10000cscles)	ΔR≤±3%R,peak noise≤500Ω,Starting Torque≤20mN.m
	Electrical endurance (70°C, 2W, 1000h)	ΔR≤±3%R
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤±3%R, Insulation Resistance≥100MΩ, Starting Torque ≤20mN.m

Physical Characteristics	Total mechanical travel	3600°±10°
	Rotational torque	2~10mN.m
	Stopper torque	≥300mN.m
