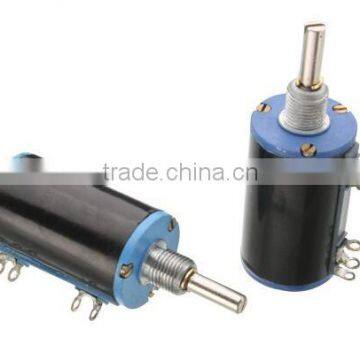

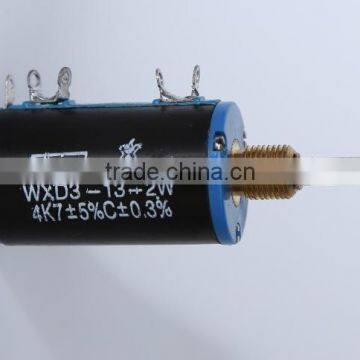

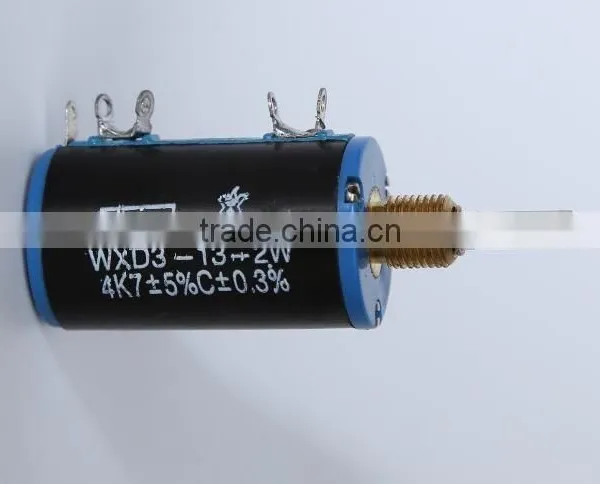

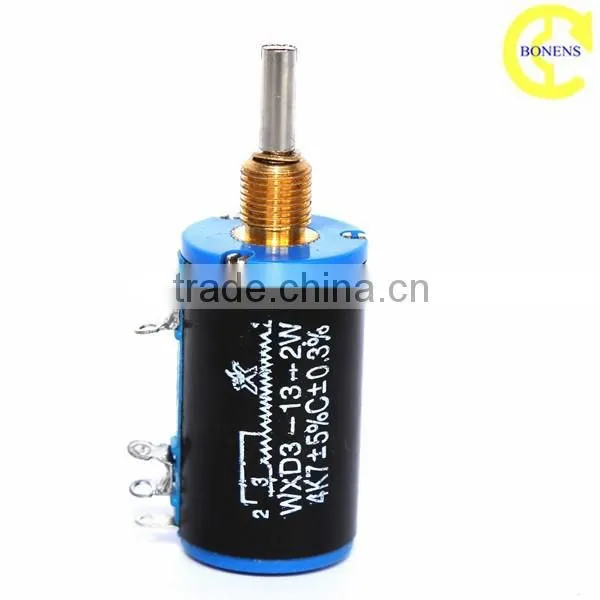

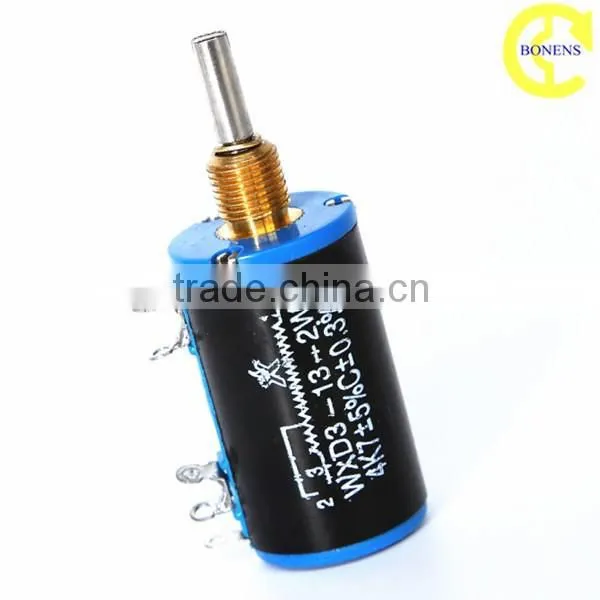

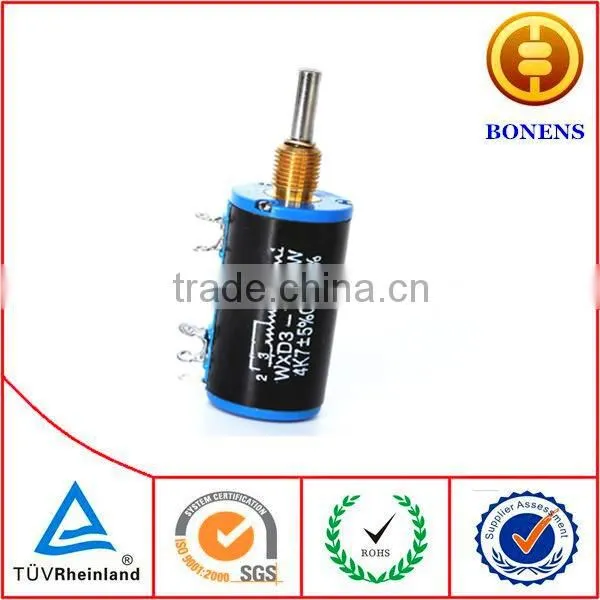

WXD3-13 2w 10 Turns 10k B103 Wirewound Potentiometer

Name: WXD3-13 2w 10 Turns 10k B103 Wirewound Potentiometer
Brand: Bonens
SKU: 126970153
Availability: InStock

US$ 0.6 - 0.7 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

Bonens

Model Number:

wxd3-13

Tong Yue Xin Commercial And Trading Co., Ltd. (Chengdu)

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzheng

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name Bonens

Model Number wxd3-13

Type Rotary Potentiometer

Technology Wirewound

Resistance 100Ω~100KΩ

Resistance Tolerance ±5%

Rated Power 2W

Max. Operating Voltage 160V

Operating Temperature -55℃~+125℃

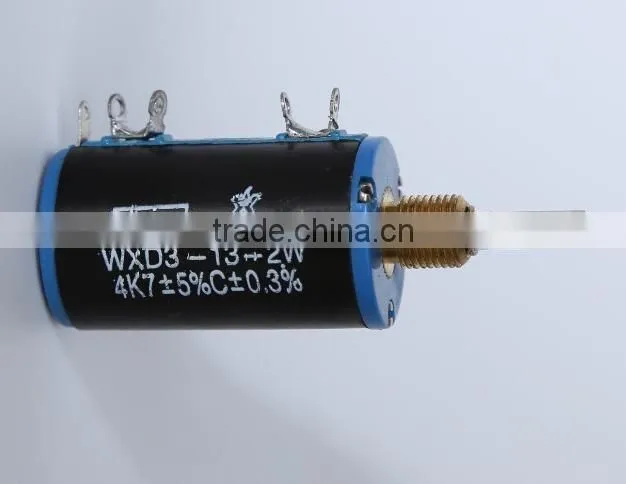

WXD3-13 2w 10 turns 10k b103 wirewound potentiometer

Product Description

WXD3-13 potentiometer data:

Electrical Characteristics	Range of nominal resistance	100Ω~47KΩ
	Resistance tolerance	±5%
	Terminal resistance	≤±0.2%R or 5Ω
	Peak Noise	≤100Ω
	Insulation resistance	≥ 200MΩ (100V AC)
	Withstand voltage	160V (DC or AC peak value)
	Electrical angle	1800° ± 10 °
Environment Characteristics	Rated power	2W ( 300V 70 °C )
	Temperature range	-55°C~+125°C
	TCR	±100×10-6/°C
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ
	Electrical endurance (2W, 1000h)	ΔR≤± 3%R
	Mechanical endurance (1000 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± 3%R, Insulation Resistance≥100MΩ,starting torque ≤20mN.m
Physical Characteristics	Total mechanical travel	1800° ± 10 °
	Rotational torque	2-10mN.m
	Standard package	50 pcs /box
