Specifications
1.For Making Electric Concrete Pole2.Durable electric cabinet and motor
3.Neat finished products
4.Higher efficiency
A.Brief of The Electric Concrete Pole
I.Electric Concrete Pole Look:
Electric concrete pole can be made in many shapes.Poles up to 40 feet long with square or rectangular solid cross-sections are easy to manufacture,occupy less room during transporation,and faciliate positioning of steel at corners for maximum resisting moment at a given depth.Circular hollow cross-sections are better for longer poles.Because hollow,weigh less.And because they are spun at high speeds in casting operation,then concrete is denser and stronger.
II.Design Consideration:
A pole generally acts as a cantilevered structure ,and should be designed and analyzed as a tapered member with combined axial and bending loads.Because shear forces are small compared to bending moments,electricl concrete poles are very resillient.Axial loads are small,too,and are generally ignored except when the structure is guyed.
III.Manufacturing:
Electric concrete pole generally are manufactured in Centrifugal casting process.Centrifugal casting or spin casting is the best and cost-saving method for electric concrete pole production.In centrifugal casting,a steel form(mold) is placed on machine,partially filled with amount of precalculated concrete ,then spun for several minutes(time for spinning depends on motor speed).The tremendous centrifugal forces created by the spinning consolidated the concrete by forcing it against on the wall of the form.Excess water that is squeezed out of concrete is poured from the hollow cavity created in the center of the pole.After spinning,the form is steam cured until the strength of concrete is 3500psi.The prestressing wire is then released,and the pole is air-cured for 28 days.The result :a hollow pole made of dense concrete.
B.Process of Production

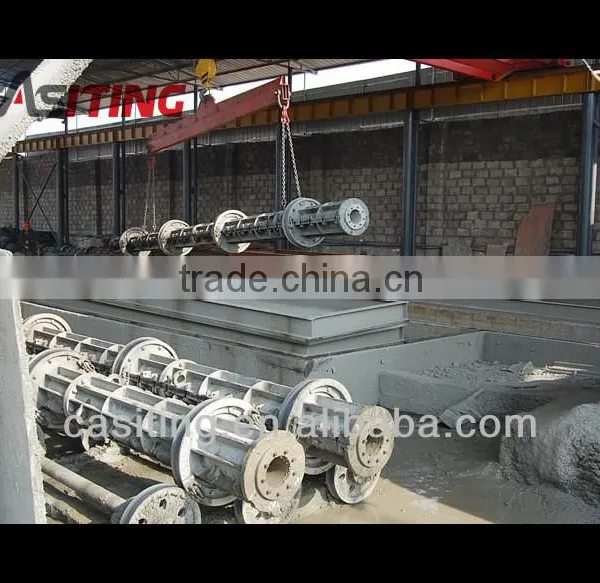

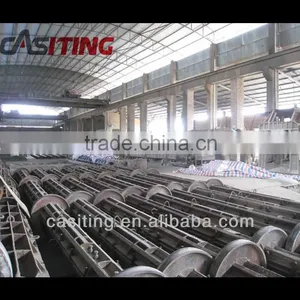

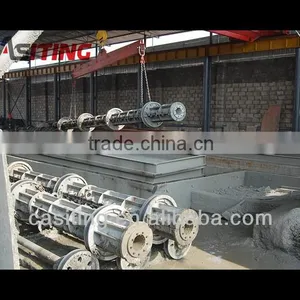

1.Molds in working
Note:Before production,brush demounding agent on the inner wall of mold.
2.Spinning Machine
Note:Spinning time is dependent on spinning speed.
3.Boiler in working
Note:Capacity of Boiler have an important relationship with your estimated productivity.
4.Bridge Crane in working
5.Feeding Machine in working
Note:This machine is optional,if you have enough human labor,this machine is not necessary
6.Automatic Concrete Mixer

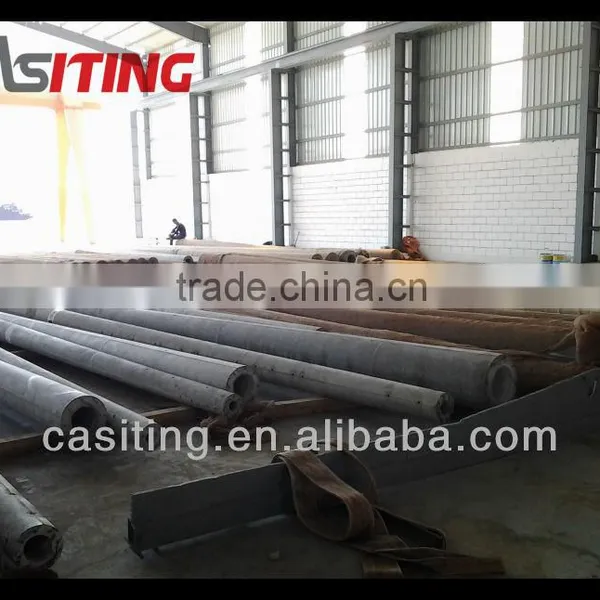

7.Actual Finished Products at Customer's Work Place
C.Demand on Equipments
D.Packaging and Delivery
Note:For the purpose of Saving cost for customers,packages are nude.Generally,delivery in containers:top open or regular.
For mold,due to length,seperate into sections or delivery in whole.
For crane,seperate into sections and install at work site.

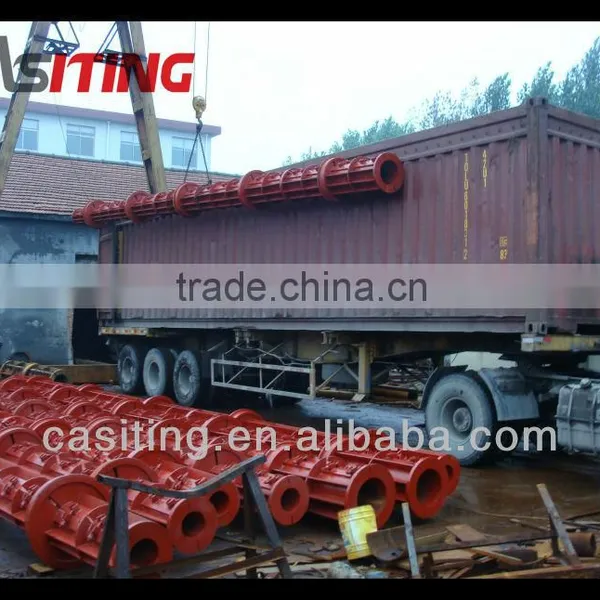

Actual Pictures of Loading
E.After Sales Services
After Sales Services:We offer commision engineer to help customers to install and test machines.
F.FAQ for Customers
1.Why is spinning techinique for electric concrete pole production?
Electric concrete pole manufactured by spinning technique has advanges of:denser,stronger than wooden pole and other techinique,higher efficiency and lower cost than steel pole and other techinque.
2.Can the spinning machine make other concrete products?
Yes.There are several concrete products can be manufactured by spinning machine:concrete pile,concrete pipes,and square pole.
3.Is the spinning process cost too much?
No.Generally,the biggest expense lies in mold,then machine.Because along with your production getting bigger,one machine will need more molds to support its production.Absolutely,if you plan to expand production,machines are the other factor needed to be considered.
4.How to know how many molds and machines you will nee?
It's dependent on the order and delivery time of the order you have.Generally,one plant with one set of machine and 16 pieces of mold produce 32 pieces of pole in 8 hours per day.
5.When the pole will be finished completely?
After spinning process,the pole with mold has to be steam cured in curing pool for 4 hours.And after steam curing,the pole has to be exposed in the air for 28 days to till the given strength.After this time,the pole is totally finished.Absolutely,the air curing can be completed in delivery.
6.How we work out what equipments do we need to order?
In prestressed concrete pole making production,the spinning machine and mold are necessary.Excluding these two items,the other equipments have to include:concrete mixer,concrete batching plant,tension machine,heading machine and crane.
(1).Concrete mixer is for mixing aggregate,additives and water into given concrete.
(2).Concrete batching plant is for calculate the amount of raw materials like sand,gravel,cement and additives.
(3).Tension machine is for making tendon in poles be prestressed.
(4).Heading machine is to make a head of tendon for the next step:tension.
(5).Crane is to move mold and pole to the given places.
7.What if the machine was broken?
In fact,everything has a life,machines are not expected.The condition of out-of-order of machine generally comes from quick wear part broken.We will list a catalog of quick wear part of each machine with their lives that you ordered to notice you when should you replace new parts.The lives of itmes except quick wear parts will be guruanteed by us in certain time.If in certain period they are broken,we will help you to fix or replace new one for free.
G.About Us
We are the leading manufacturer of electric concrete pole making equipments in China.Our main products cover all the machines and parts needed in Prestressed Concrete Pole Production,Concrete Pipe Production,Brick Production and other Concrete Building Materials Production.With more than 15 years of manufacturing and research experiences,now our products are expanded and welcomed to many countries and regions.
Our advantages come from our concerns about the demands of customers,only if customers show us their demands,we will work out a programme for them for cost saving and best performances.
You will find:our company will be your best collabrator in concrete products industry.
