Labyrinth drip irrigation plastic tape dripline
Characters of the Labyrinth drip irrigation plastic tape dripline
>> The diameter of tape is controlled by diameter-control device so that the measurement and control is
accurate, steady and reliable.
>> The main dripline motor, shaping part and tractor all adopt frequency conversion control system which have
characteristics of easy adjustment, reliable performance, stable work condition and low energy consumption.

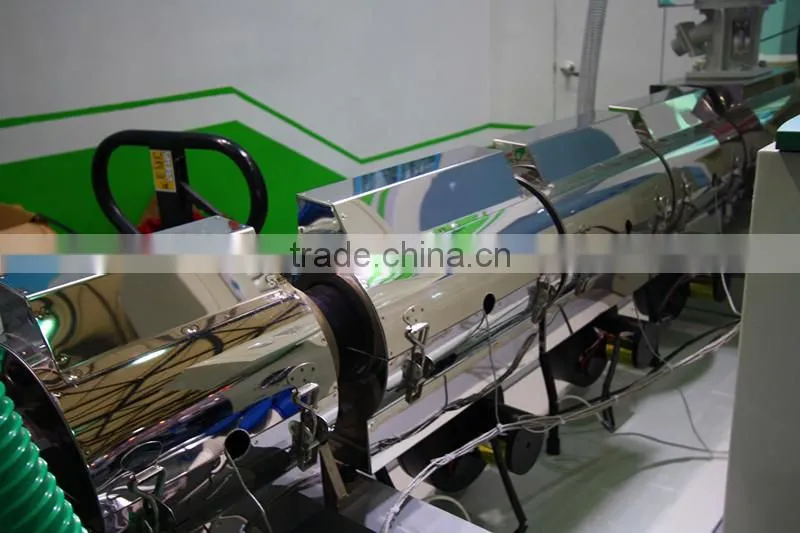

>> The barrel and screw of extruder of this dripline adopt intruding alloy materials, which has features of high-hardness,
high wear-resistance and long service life.
>> The heating temperature of extruder and mold die head adopts automatic-control-temperature.
>> The drip irrigation tape is curled by moment electrical machinery. The drip irrigation tape can overcome the tension
emerged effectively. The rolling length can be settled casually below 2500m (if meter prolonging is required, it can be
ordered).
>> The rolling machine has the functions of memory and automatic alarming.And the rolling station can be two station and three station .
>> The whole dripline is designed moderately, reasonably, beautifully and its automation degree is high.
Main Parameter of the dripline
Specification: 12-16-20mm(diameter)
Production speed: 50-70m/min
main drivng power: 18.5kw
max. extruding capacity: 60kg/h
heating power: 22kw
filter changing way: durable filter(patent)
driving power of shaping wheel: 0.75kw
driving power of tractor: 1.1kw
winding motor: torque motor 6N.m x 3
water consumption: 1cbm/h
air consumption: 0.3cbm/h
installation power: 52kw
overall dimension: 13*1.5*2.7m
weight:2200kg
assembling of the dripline
The dripline is packaged by wooden box .
Delivery port :Tianjin ,Xingang port . By sea .
One 20F Container is needed !

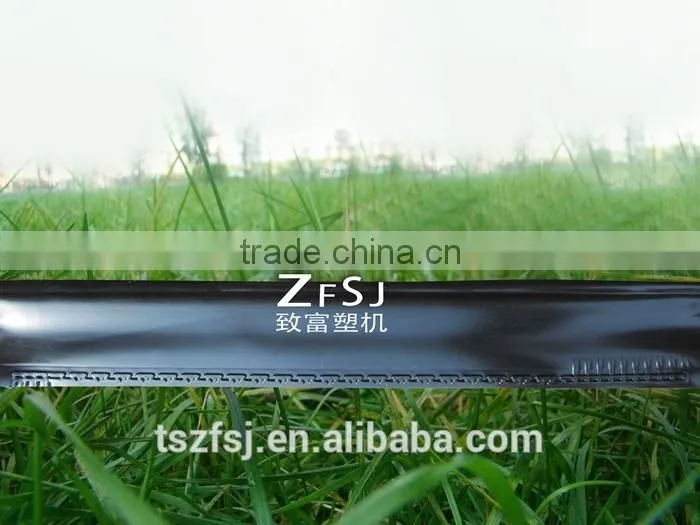

Tape Diameter :12mm 16mm 20mm
Tape Thickness:0.18-0.22mm
Simple package of the tape :
standard is 2000meter/roll . However we can also make it under customer's demands .
The material of the tape is PE !
Attending the International Exhibition Show.

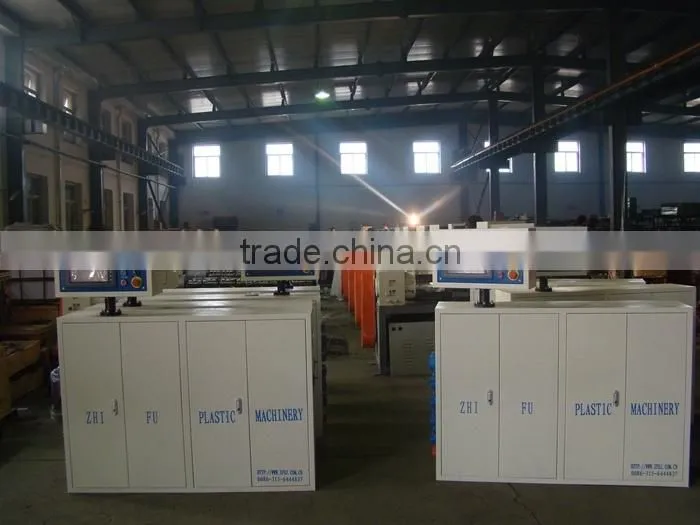

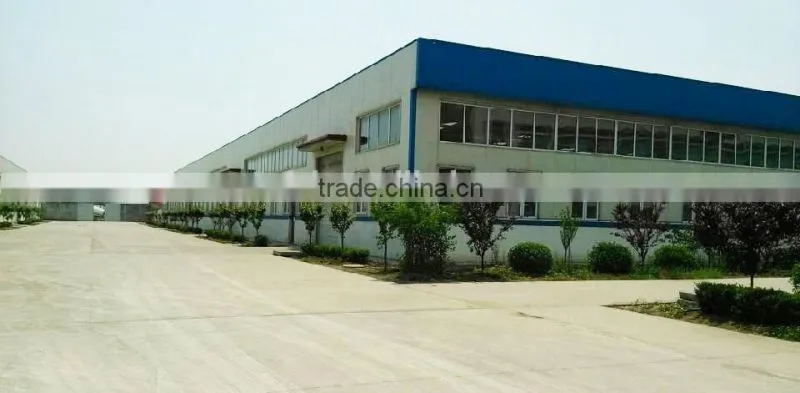

Factory Show.
