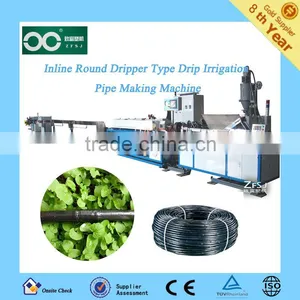

high speed round dripper drip hose production line

FOB Price

USD $150,000 - $150,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Xingang
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Application:	Pipe	Plastic Processed:	PE
Screw Design:	Single-screw	Automatic Grade:	high	Place of Origin:	Hebei, China
Brand Name:	ZFSJ	Model Number:	SJNX-YZ	Voltage:	380V
Power(W):	92KW	Dimension(LWH):	31m4.5m3m	Weight:	4t
Certification:	CE	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Mosaic column emitter type drip irrigation pipe making machine

Application

The mosaic column emitter type drip irrigation pipe is widely used in water saving drip irrigation field, such as vegetables, flowers and trees.

application show

Mosaic column emitter type drip irrigation pipe characteristics

The distance between emitters can be adjusted according to demands of different crops it can be adjusted to same distance as well as regular pattern of different distance.

The emitter adopts unique design of circular arc flow path and has the characteristics of complete turbulent fluid, automatic washing and strong antiblocking.

The paving length is long and can reach 100meters.

The mosaic column emitter type drip irrigation pipe can be used in plains as well as in hills and sloping fields.

One emitter has two or four outlets, which antiblocking capability is strong.

The pipe wall thickness can reach 1.2mm and has long service life.

Certificate /patent

Item	Certificate/patent type
Mosaic column emitter type drip irrigation pipe making machine	CE
	ISO
Durable filter	Utility New Type Patent
Dripper choosing device	Utility New Type Patent
Dripper insertion device	Utility New Type Patent
Hole drilling device	Utility New Type Patent
Vacuum sizing water tank	Utility New Type Patent

Main technical parameter

No.	Item	Technical parameter
No.	Item	SJNX-70-YZ SJNX-90-YZ
1	Specification of final products	φ12mm,φ16mm,φ20mm
2	Wall thickness of final product	0.5~1.2mm	0.5~1.2mm
3	Dripper distance	≥200mm	≥200mm
4	Production speed	50m/min	50m/min
5	Main driving power	45kw	55kw
6	Max. extruding capacity	120kg/h	158kg/h
7	Heating power	30kw	38kw
8	Filter changing way	Durable filter (patent)	Durable filter (patent)
9	Total dripper supply power	4.06kw	4.06kw
10	Emitter supplying speed	≤180pcs/min	≤180pcs/min
11	Tractor driving power	3kw	3kw
12	Hole drilling way	Mechanical	Mechanical
13	Hole drilling speed	≤180pcs/min	≤180pcs/min
14	Winding driver	12N.m×2	12N.m×2
15	Water consumption	3m³/h	3m³/h
16	Air consumption	2m³/min	2m³/min
17	Installation power	100kw	120kw
18	Overall dimension (L×W×H)	31m4.5m3m	31m5m3m

The production speed changes according to the wall thickness of the drip irrigation tape/pipe

The diameter can be made according to customer’s demand
