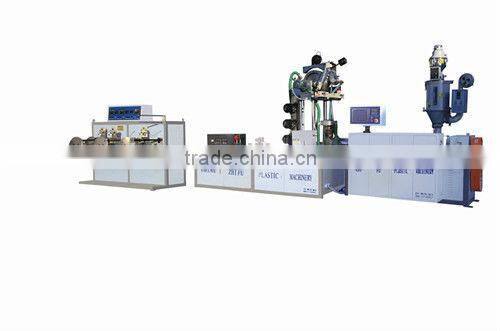

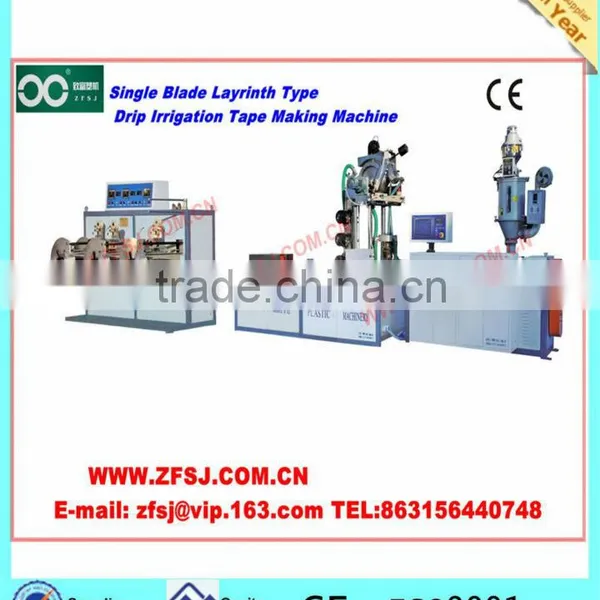

PLC Control Labyrinth Drip Irrigation Tape Machine
US$ 50,000 - 50,000
/ Set
1 Set(Min. Order)
- Xingang
You May Like
-
Inline Flat Dripper Irrigation Drip Tape Making Machine
-
Inline Round Dripper Plastic Drip Pipe Production Line
-
Mosaic Flat Dripper Drip Irrigation Hose Making Machine
-
Internal Round Dripper Plastic Drip Pipe Product Line
-
Internal Round Dripper Plastic Drip Pipe Tube Making Machine
-
Mosaic Flat Dripper Water Saving Drip Irrigation Hose Extrusion Line
Product Details
| Condition | New | Application | Pipe | |
| Plastic Processed | PE | Screw Design | Single-screw | |
| Automatic Grade | high | Place of Origin | Hebei, China | |
| Brand Name | ZFSJ | Model Number | SJDY-60-AIV | |
| Voltage | 380V | Power(W) | 52KW | |
| Dimension(L*W*H) | 13m*1.5m*2.7m | Weight | 2200kg | |
| Certification | CE&ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Drip irrigation equipment2.PLC control
3.Speed:50-70m/min
4.Thickness:0.18-0.22mm
5.Diameter:12-20mm
Main Parameter of the Machine
No. | Item | Parameters |
1 | Model | SJDY-60-AIV |
2 | Specification | φ12~φ20 mm |
3 | Production speed | 70 m/min |
4 | Main driving power | 18.5 kW |
5 | Max. extruding capacity | 60 kg/h |
6 | Heating power | 22 kW |
7 | Filter changing method | Durable filter(patent) |
8 | Driving power of shaping wheel | 0.75 kW |
9 | Driving power of tractor | 1.1 kW |
10 | Winding motor | Torque motor 6 N.m×3 |
11 | Water consumption | 1 m3/h |
12 | Air consumption | 0.3 m3/h |
13 | Installation power | 52kw |
14 | Overall dimension(L×W×H) | 13 m×1.5 m×2.7 m |
15 | Weight | 2200 kg |
Application:
The drip irrigation tape can be widely used in water saving and irrigation of agricultural field (cotton, grapery, peanut and wheat etc.), greenhouse, gardens etc. and mountain and hill region.

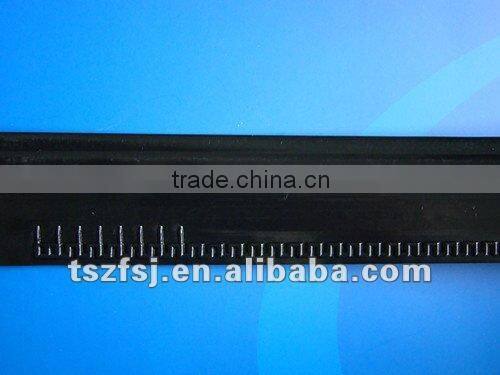

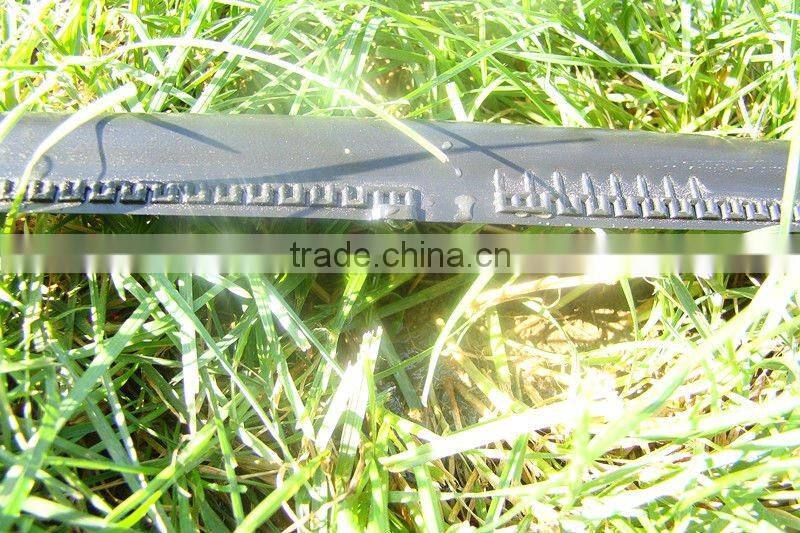

The tape produced by this machine
