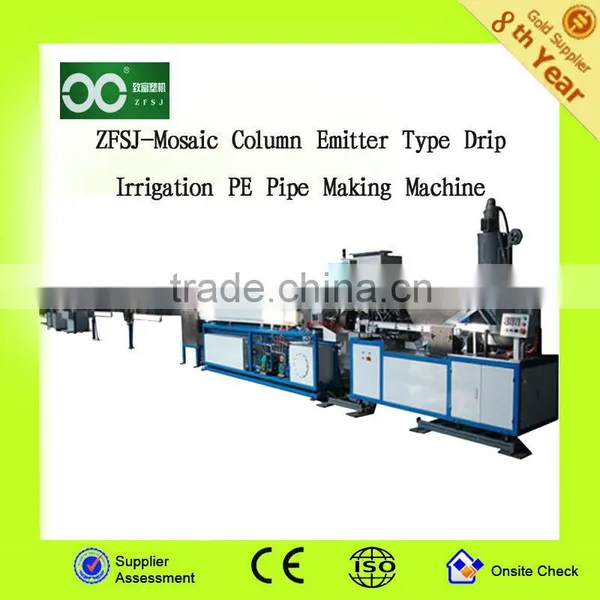

Mosaic column emitter type drip irrigation pipe making machine
Application
The mosaic column emitter type drip irrigation pipe is widely used in water saving drip irrigation field, such as vegetables, flowers and trees.

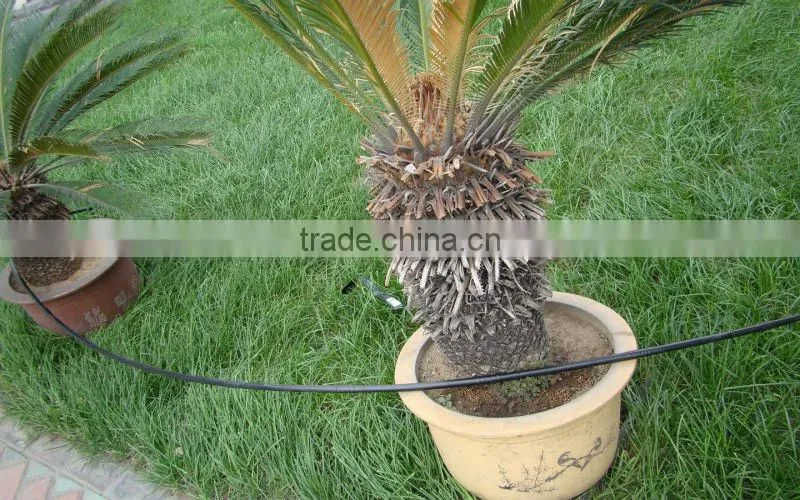

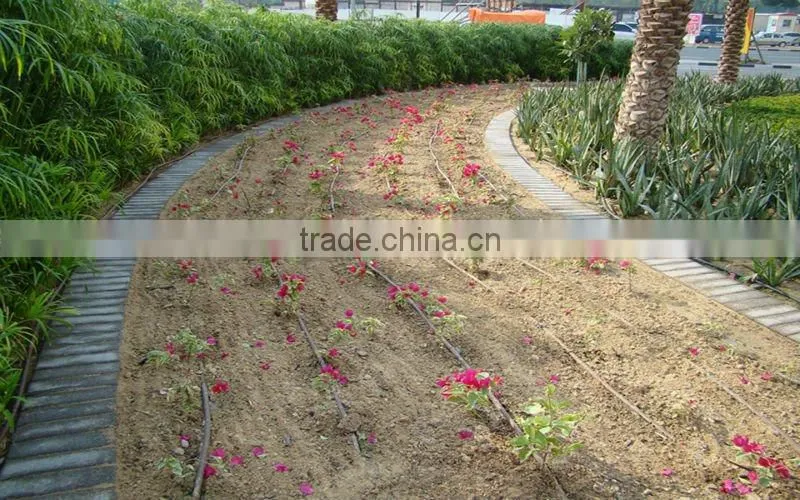

application show
Mosaic column emitter type drip irrigation pipe characteristics
The distance between emitters can be adjusted according to demands of different crops it can be adjusted to same distance as well as regular pattern of different distance.
The emitter adopts unique design of circular arc flow path and has the characteristics of complete turbulent fluid, automatic washing and strong antiblocking.
The paving length is long and can reach 100meters.
The mosaic column emitter type drip irrigation pipe can be used in plains as well as in hills and sloping fields.
One emitter has two or four outlets, which antiblocking capability is strong.
The pipe wall thickness can reach 1.2mm and has long service life.
Certificate /patent
Item |
Certificate/patent type |
|
Mosaic column emitter type drip irrigation pipe making machine
|
CE |
ISO | |
Durable filter |
Utility New Type Patent |
Dripper choosing device |
Utility New Type Patent |

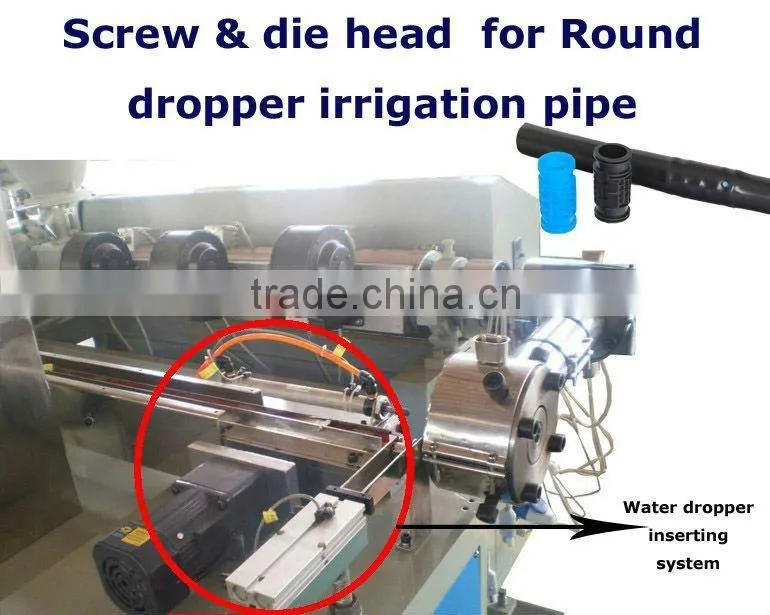

Dripper insertion device |
Utility New Type Patent |
Hole drilling device |
Utility New Type Patent |
Vacuum sizing water tank |
Utility New Type Patent |
Main technical parameter
No. |
Item |
Technical parameter |
|
SJNX-70-YZ SJNX-90-YZ | |||
1 |
Specification of final products |
φ12mm,φ16mm,φ20mm |
|
2 |
Wall thickness of final product |
0.5~1.2mm |
0.5~1.2mm |
3 |
Dripper distance |
≥200mm |
≥200mm |
4 |
Production speed |
50m/min |
50m/min |
5 |
Main driving power |
45kw |
55kw |
6 |
Max. extruding capacity |
120kg/h |
158kg/h |
7 |
Heating power |
30kw |
38kw |
8 |
Filter changing way |
Durable filter (patent) |
Durable filter (patent) |
9 |
Total dripper supply power |
4.06kw |
4.06kw |
10 |
Emitter supplying speed |
≤180pcs/min |
≤180pcs/min |
11 |
Tractor driving power |
3kw |
3kw |
12 |
Hole drilling way |
Mechanical |
Mechanical |
13 |
Hole drilling speed |
≤180pcs/min |
≤180pcs/min |
14 |
Winding driver |
12N.m×2 |
12N.m×2 |
15 |
Water consumption |
3m³/h |
3m³/h |
16 |
Air consumption |
2m³/min |
2m³/min |
17 |
Installation power |
100kw |
120kw |
18 |
Overall dimension (L×W×H) |
31m*4.5m*3m |
31m*5m*3m |
The production speed changes according to the wall thickness of the drip irrigation tape/pipe
The diameter can be made according to customer’s demand
