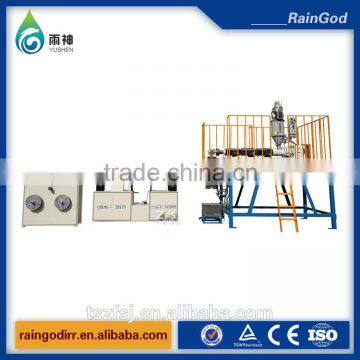

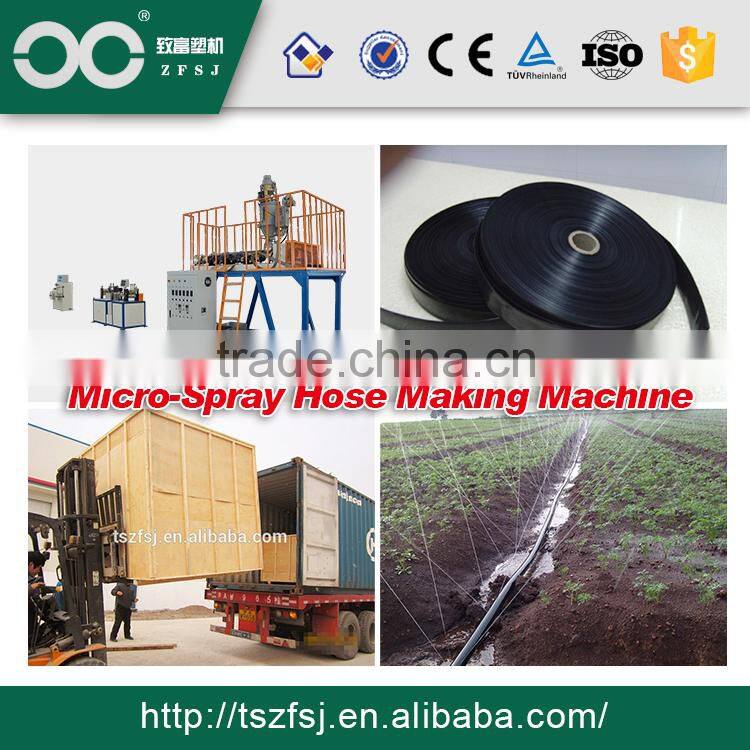

Micro Spraying Tape Making Machine SJWP--60
brief introduction:
the micro spraying hose is also called spraying tape,many holes tape,micro spraying irrigation tape.we make many small holes on the pressed flat tape mechanically or by laze.the tape with three,five or more holes for each group is paved on the ground and the water will go up and then down like fine rain under the pressure,the micro spraying tape is also one of the water saving irrigation product.due to different size and pressure,the spraying width range can be 2m to 8m.
Main technical parameter:
Item |
Technical parameter |
||
Model |
SJWP--60 |
Specification |
25mm--75mm |
Screw diameter |
60mm |
Main driving power |
18.5kw |
Max extruding capacity |
50kg/h |
Filter changing way |
Durable filter |
Traction motor |
1.5kw |
Winding motor |
0.75kw*2 sets |
Installation power |
48kw |
Production speed |
≤35m/min |
Overall dimension |
11m*2.25m*3.6m |
||
Skype: Cindy921122
Whatsapp: +8618303339934
Plesae feel free to contact me!
features:
1.extruder and tractor all adopt frequency conversion control system,which has the characteristics of easy operation,reliable running,stable working and low energy consumption.
2.screw and bolt of the extreder adopts special design,and it features excellent plasticationg capacity and stable production.
3.extruder and mold adopt sutomatic temperature control system so that the temperature-controlling is exact and also it can save energy effectively
4.unique vacuum control device,precise vacuum degree control,small micro-spraying tape diameter error.
control device adopts servo motor control, control accuracy is high.position error is small.
6.punch on the hole drilling machine is made of special steel and it has long service life.
7.holedrilling machine adopts advanced servo unit control,human-computer interface operation,punching accuracy is high,water outlet space error is small.high degree of automation.
8.double-station winder make changing roll is convenient and quick,and equip the meter-counting device,rolling length can be settled by self( ≤200m).after reaching setting length,it will be alarming.

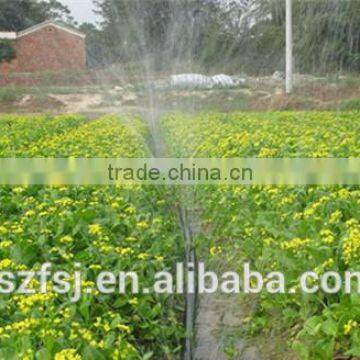

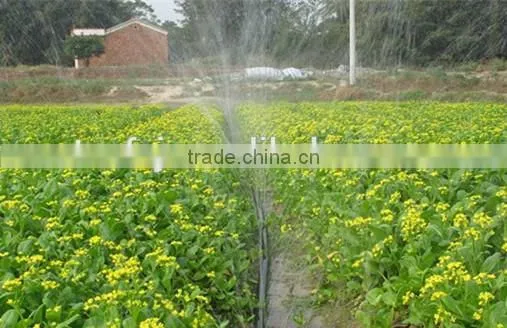

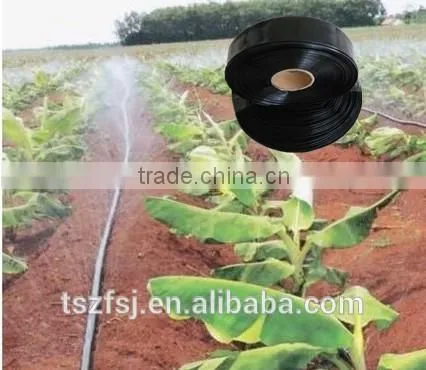

final products and application:

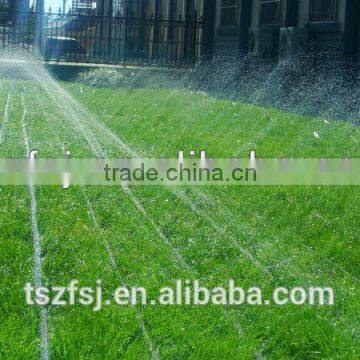

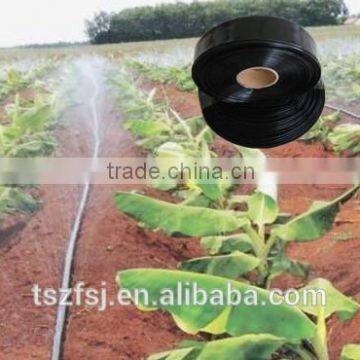

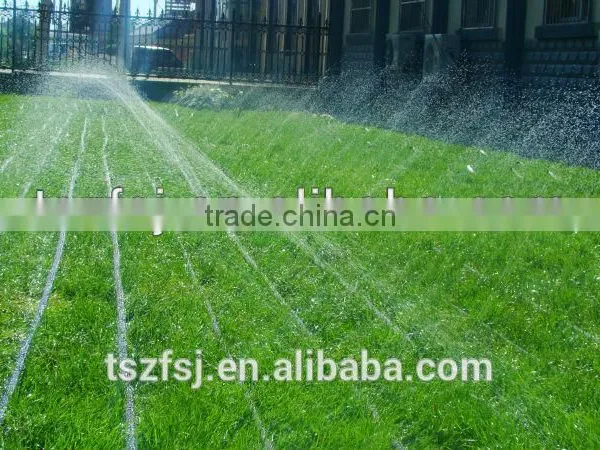

It is widely used in lawn, trees, greenhouse,etc.
MIcro spraying tape sizes:
sizes |
thickness (mm)
|
holes Space (mm) |
holes type (mm) |
rated working pressure (Mpa) |
paving length (m) |
sprying width (m) |
each roll length (m) |
|
|
Diameter (mm) |
folded diameter (mm) |
|||||||
25 |
39 |
0.2--0.4 |
≥ 150 |
Two holes |
0.1 |
50 |
2 |
200 |
32 |
50 |
0.2--0.4 |
≥ 150 |
sloping three holes |
0.1 |
50 |
3 |
200 |
40 |
63 |
0.2--0.4 |
≥ 150 |
sloping three holes |
0.1 |
80 |
3 |
200 |
50 |
78.5 |
0.2--0.4 |
≥ 200 |
sloping five holes |
0.1 |
100 |
4 |
150 |
63 |
99 |
0.2--0.4 |
≥ 250 |
sloping five holes |
0.1 |
100 |
4 |
150 |
75 |
118 |
0.2--0.4 |
≥ 250 |
sloping five holes |
0.1 |
100 |
6 |
150 |
90 |
141 |
0.3--0.5 |
≥ 300 |
sloping seven holes |
0.1 |
150 |
7 |
100 |
110 |
173 |
0.3--0.5 |
≥ 300 |
sloping seven holes |
0.1 |
150 |
8 |
100
|
ps:The hole type can all be single and the special sizes can be ordered.

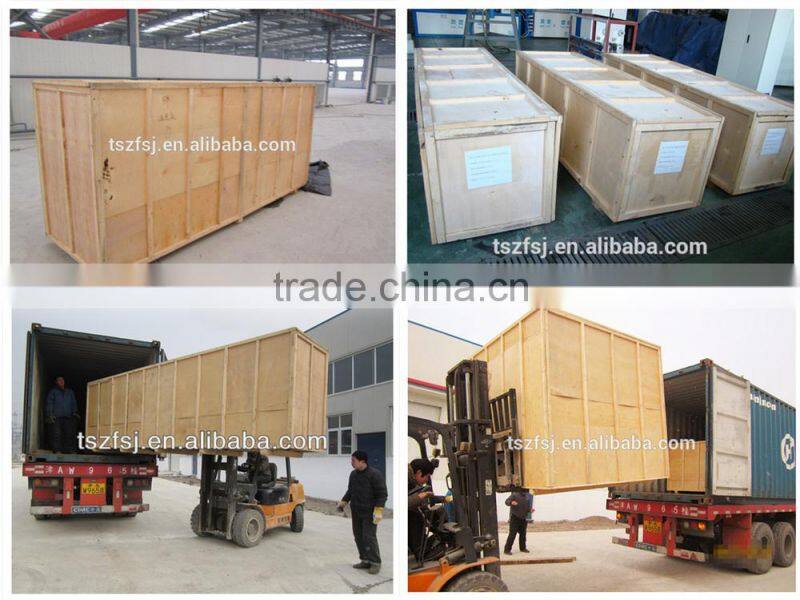

packaging and shipping:
Transportation : By sea .
Tianjin Xingang Port .
Machine Package :Wooden Box
Brief Introduction

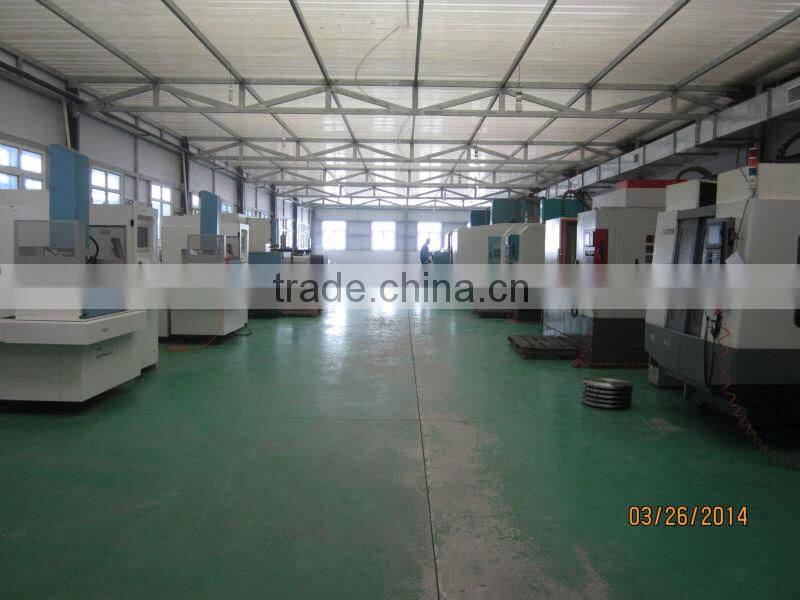

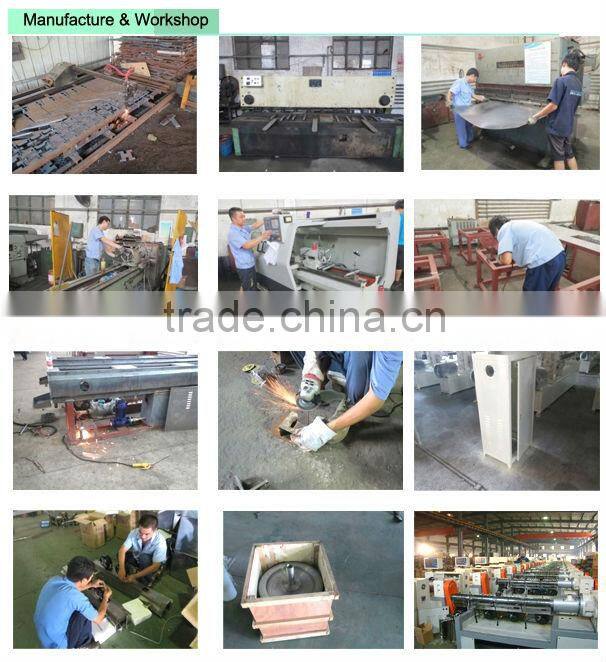

Tangshan Zhifu Plastic Machinery Co., Ltd was established in 1986,which lies in the southeast of Beijing (capital of China) It covers more than 50000m2 area.It is a knowledge-based, scientific and technological enterprise for special-purpose plastic machinery integrating design, develop, manufacture and service with advanced equipment, perfect monitoring method and strong technological foundation.
Our General manager has been received by Mr Hu president twice.
The company has import-export authority independently and passes the Certificate of ISO9001 Quality System and European Union CE Certificate.Our company which has more than ten years of history for making drip irrigation equipment in China and even the biggest drip irrigation machine manufacturer and sale enterprise in the world.
The superior quality, favorable price and perfect after-sales service make the products be well received at home and abroad.
exhibition
Our Services
The management principle of our company is sincere cooperation and deep friendship, and our service aim is Quality First and Credit First and Customer First to meet the customer’s demand and expectation. We are devoted to the improvement of the product quality and service and try our best to provide the best quality product to friends from all over the world.
Guarantee And After-sales Service
--One year guarantee for the whole machine
--24 hours technical support by e-mail
--Calling or door-to-door service
--Use-friendly English software, user manual
please feel free to contact me!
skype : Cindy921122
mob : +8618303339934
whatsapp : +8618303339934
1). What’s your patment term?
T/T, L/C(you must pay 30% of total contract amount by T/T as deposit.).
2). Can I get a sample? And how?
Yes, you can get some sample, and you need to pay for it. However, that cost can be refundable after you buy our machines or tapes more than MOQ.
3). What kind of files do you accept for printing?
PDF, Word, PPT, High resolution JPG.
4). Can you do the design for us?
Yes,just tell us your ideas and we will help to carry out your ideas into perfect products.
5). What about the lead time for mass production?
Honestly,it depends on the order quantity and the season you place the order.The lead time of MOQ is about 10 to 15 days. Generally speaking,we suggest that you start inquiry one month
before the date you would like to get the products at your country.
6). How long is your guarantee?
One year (Calculated from the equipment arrives at the customer’s side.).
