Home > Products > Plastic pipe machine > agriculture water saving Micro Spraying Tape Making Machine
agriculture water saving Micro Spraying Tape Making Machine
- 3 Set / Sets per Month
- Tianjin port
- T/T
Product Details
Condition: | New | Application: | Pipe | Plastic Processed: | PE |
Screw Design: | Single-screw | Automatic Grade: | high | Place of Origin: | Hebei, China |
Brand Name: | ZFSJ | Model Number: | SJWP-60 | Power(W): | 1.5KW |
Dimension(L*W*H): | 11*2.25*3.6m | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Micro Spraying Tape Making Machine
Features:
1. Main motor and tractor all adopt frequency conversion control system, which has the characteristics of easy operation, realiable running,stable working and low energy consumption.
2. Screw bolt of the extruder adopts special design, and it features excellent plasticating capacity and stable production.
3. It adopts automatic temperature control system so that the temperature-controlling is exact and also it can save energy effectively.
4. Punch on the hole drilling machine is made from specail material and it has long service life.
5. Both hole drilling tractor and winder adopt torque motor control,which can overcome the tension fault. Whats better, its equipped with meter counter device.
6. Tractor, hole drilling machine and winder are controlled separately, so it can not only produce two same tapes at the same time but also it can produce two tapes with different specifications.
Specifcation:
Modle | SJWP-60 |
Screw Diameter | Φ60mm |
Tape Diameter | Φ25mm-Φ75mm |
Main driving power | 18.5kw |
Max.extruding capacity | 50kg/h |
Filter changing way | Durable filter |
Driving power of tractor | 1.5kw |
Winding motor | 0.75kw*2 |
Installation power | 48kw |
Production speed | ≤35m/min |
Overall dimension(L*W*H) | 11m*2.25m*3.6m |
Application range and advantage :
Application rangeit's applicated in green house, plain and hillside for the growth of fruit trees, kaleyard, culture of seedling, flower, lawn, vegetables etc.
Advantage:
1. Anti-clogging function is strong and also it has low demand for the filtration of
water source.
2. Low working pressure and low expenditure for the parts of water source and artery of water transportation.
3. High utilization of water and obvious effectiveness of water-saving..
4. It could be used to fertilize and spray pesticide, the water dripping volume is even and wont harden the soil or washout the fertilizer.

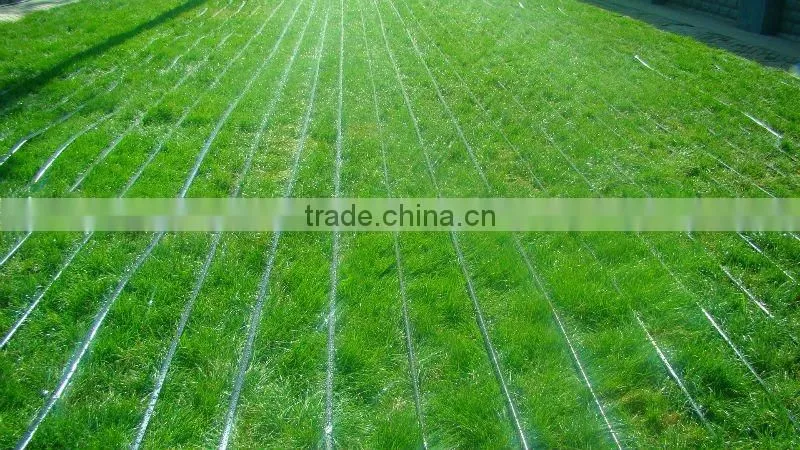

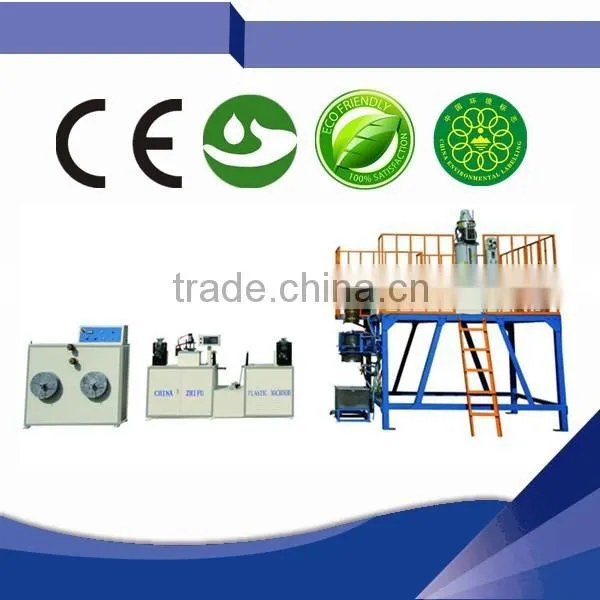

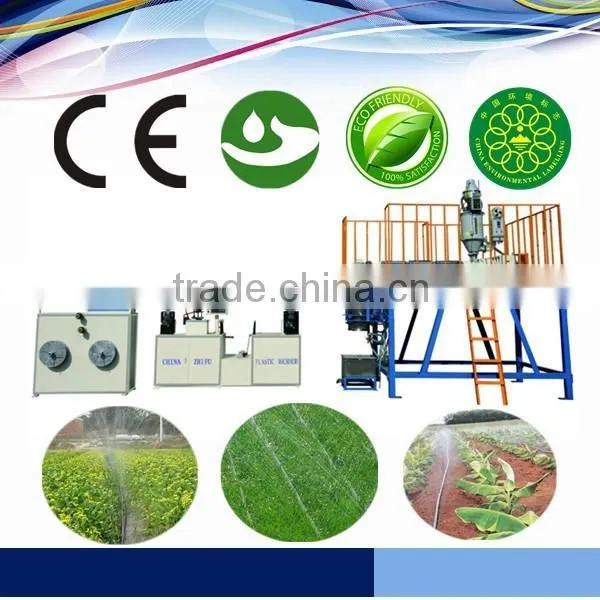

Pictures of machine and tape:

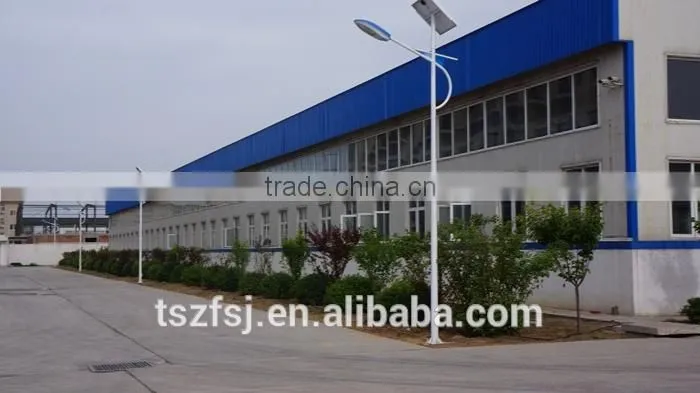

Company Show
