SJ-60 pe Pipe Extruding Machine

SJ-60 pe Pipe Extruding Machine thumbnail-1
SJ-60 pe Pipe Extruding Machine thumbnail-2
SJ-60 pe Pipe Extruding Machine thumbnail-3
SJ-60 pe Pipe Extruding Machine thumbnail-4
SJ-60 pe Pipe Extruding Machine thumbnail-5
SJ-60 pe Pipe Extruding Machine photo-1
SJ-60 pe Pipe Extruding Machine photo-2
SJ-60 pe Pipe Extruding Machine photo-3
SJ-60 pe Pipe Extruding Machine photo-4
SJ-60 pe Pipe Extruding Machine photo-5
US$ 25,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Pipe Production Line
Pipe Material:
PE
Contact Supplier Request Quote Chat Now
Tangshan Zhifu Plastic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Pipe Production Line
Pipe Material PE
Application Other, irrigation
Production Capacity 1-5m/min
Place of Origin Hebei, China
Brand Name ZFSJ
Model Number SJ-65
Voltage 380V
Power(W) 50kw
Dimension(L*W*H) 12.2*1.6*2.7m
Weight 2500kg
Certification CE, ISO
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

plastic pipe making machine.



Application

the pipe is widely used in the municipal construction, water-supply and drainage system in the building , telecom communication, gas transportation, petroleum and chemical industry, agriculture irrigation.

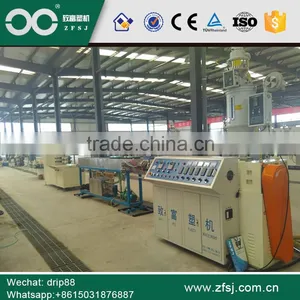

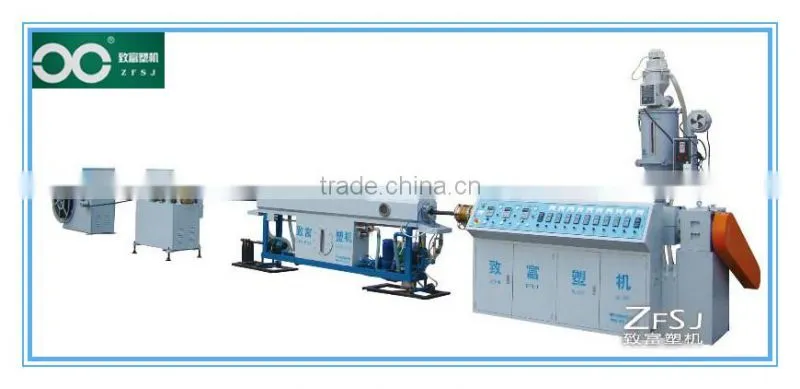

Production line

the line including the extruder, die head,cooling system,tractor unit,cutting unit,discharge pipe unit etc.

Features

High efficient, wide produce, high automatic, easy operate, uneasy distortion.

Main Technical parameter

model

SJ-45

SJ-65

SJ-90

SJ-120

SJ-150

screw diameter

(mm)

45

65

90

120

150

screw speed

(L/D)

25:1

25:1

25:1

25:1

25:1

 screw speed

(r/min)

10~65

10~65

10~50

10~50

10~40

heating power

(k w)

11

22

 45

75

160

heating power

(k w)

≤15

≤20

≤30

≤40

≤55

tractor power

(k w)

1.1

1.5

2.2

3

4

specification pipe

(mm)

16~40

32~63

50~110

145~400

180~800

output

(kg/h)

30

60

100

200

350

dimensions L×W×H(m)

6×2×1.5

6.5×2×1.5

8×2.5×1.8

10×2.8×2

15×3.5×2.6

 weight(kg)

1500

1800

3500

4500

8000





Plastic PE Pipe Machine



SJ-60 pe pipe extruding machine

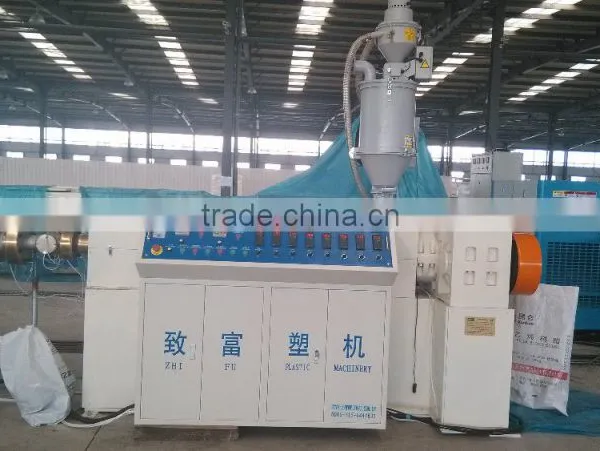

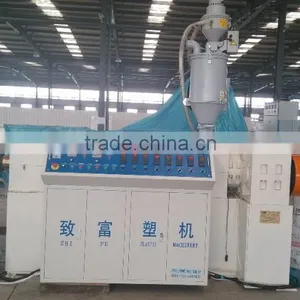

The Extruder Of The PE Pipe Machine



Model

SJ-70X30/1

Diameter

      70mm

L/D ratio

30:1

Material

38CrMoALA

Surface treating

nitriding,polished



Material

38CrMoALA

Inside surface treating

nitriding,friction

Heating controlling area

4 areas

Heating way

inside copper plate outside stainless steel plate heating ring

Heating power

15KW

Cooling system

cooled by blower on the barrel

Cooling blower power

0.18KW×4



  SJ-60 pe pipe extruding machine

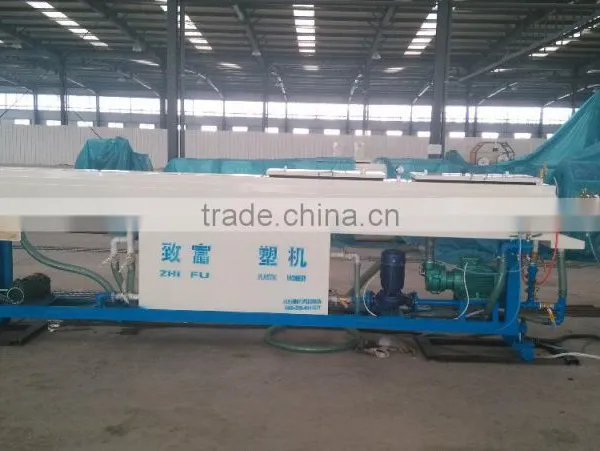

The Vacuum Tank



Vacuum pump

2.35KW

 1 set

Water pump

2.2KW

  1 set

Moving motor

0.37KW

 1 set

Water tank length

4m

(2m vacuum)

Tank material

Q235B board



Central height

1000 mm





SJ-60 pe pipe extruding machine

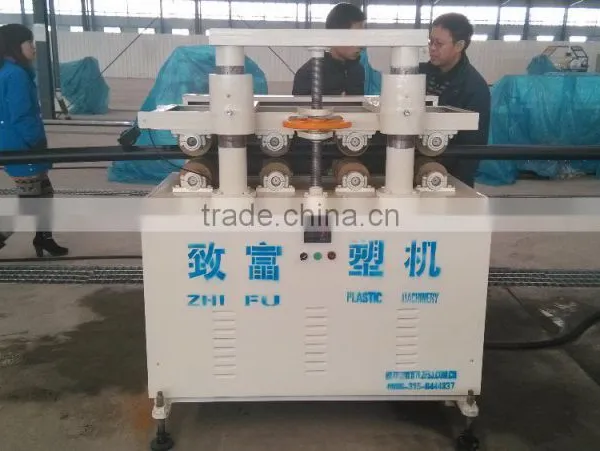

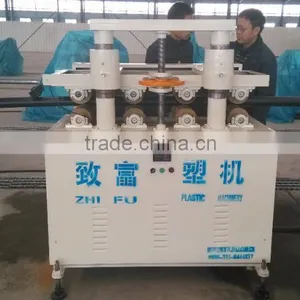

The Tractor

SJ-60 pe pipe extruding machine

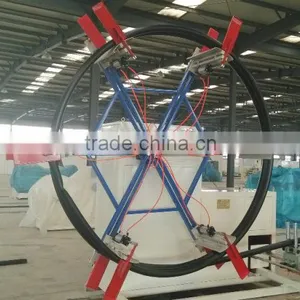

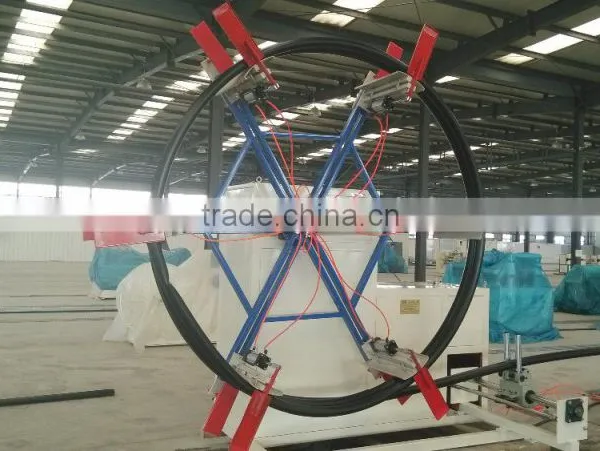

The Winder

Hauling way

caterpillar type



Clamping way

  manual clamp



Trator speed

≤10m/min



Driving motor



Method

AC frequency conversion

Power

  3KW



Single-station winding machine

Winding type

semi-automatic



Winding displacement type

automatic



Roll replacing type

manual



Count meter way

automatically count and alarm



Roll diameter

Φ2000mm



Winding motor

Method

  torque motor

Model

 16N.M





SJ-60 pe pipe extruding machine

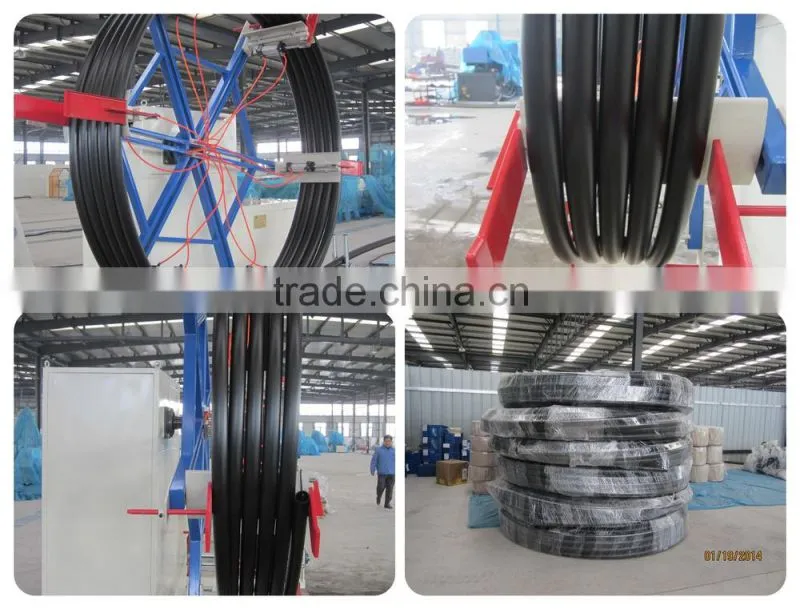

 The PE Pipe Produced by the Machine :



 SJ-60 pe pipe extruding machine

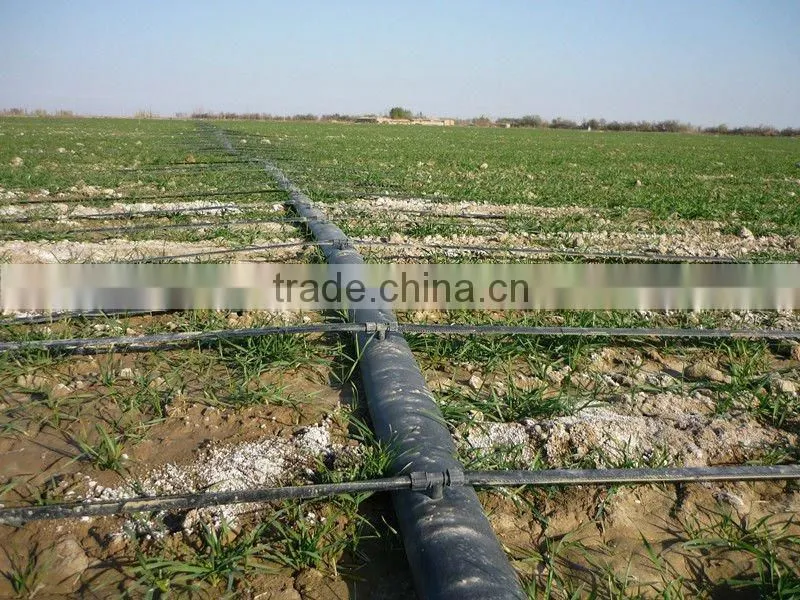

The PE Pipe Alpplication :



 SJ-60 pe pipe extruding machine

Machine package :

wooden Box

Transportation way : By sea .  Tianjin,Xingang port,China .



SJ-60 pe pipe extruding machine





Our company and workshop :







FAQ



1. Sample for pipe before order machine: available



2. Delivery: one 20ft container



3. Warranty:  we offer engineer to install machine at customer factory and provide training on machine operating. One year for machine main parts



4. Machine testing: before delivery, we test machine in our factory, also customer can come to our factory to test.



5. spare parts: available



If you have any enquiry for the drip irrigation line, you are warmly welcomed to Contact me
