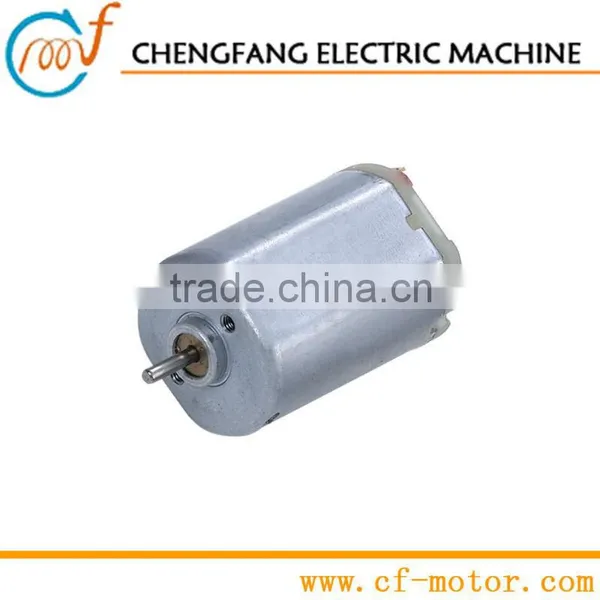

2.4V DC Air Pump Motor FS-380SA-4037

2.4V DC Air Pump Motor FS-380SA-4037 thumbnail-1
2.4V DC Air Pump Motor FS-380SA-4037 photo-1
US$ 0.54 - 0.81 MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF motor
Model Number:
FS-380SA-4037
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CF motor
Model Number FS-380SA-4037
Usage Boat, Fan, Home Appliance
Certification CE, ROHS, UL
Type Micro Motor
Torque 62g*cm
Construction Permanent Magnet
Commutation Brush
Protect Feature Other
Speed(RPM) 5600RPM
Continuous Current(A) 0.45
Output Power 2.92
Voltage(V) 2.4V
Efficiency Other, 60.5%

2.4V DC air pump motor FS-380SA-4037

Air pump DC motor
Dia*L  27.7*37.8mm
Weight: 70g Approx
Application:  Air Pump/Cordless Drill/Cruise control/Printer

The models we list below are part of our existing designs.

We offer specific motor design for every customer.



FS-380A

Model No. Main Performance
Rated Voltage No Load At Maximum Efficiency At Stall
Speed Current Speed Current Torque Output Eff. Current Torque
  V r/min A r/min A g.cm W % A g.cm
FS-380SA-4037 2.4 CONST 5,600 0.45 4,577 2.01 62 2.92 60.5 9 340

 Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz





2.4V DC air pump motor FS-380SA-4037,

 2.4V DC air pump motor FS-380SA-4037





  • Cruise control DC motor

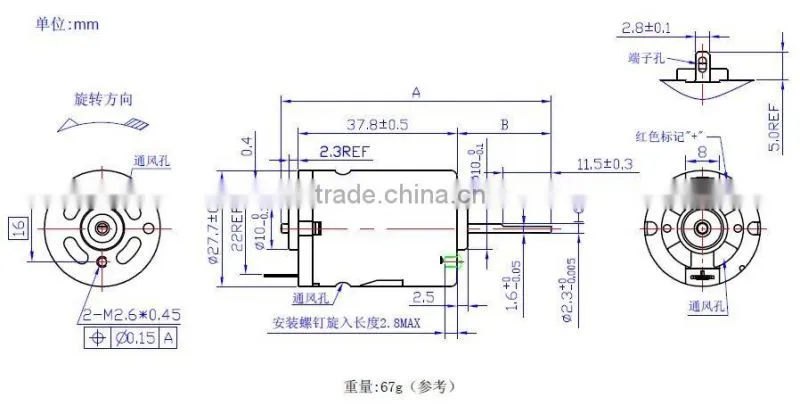

  • Dimension: φ 27.7 x 37.8 L. shaft O.D. 2.3 mm
  • Basic Structure: SECD housing / Plastic end cap
  • Application: Air Pump/Cordless Drill/Cruiser/Printer
  • Weight: Approx. 70g

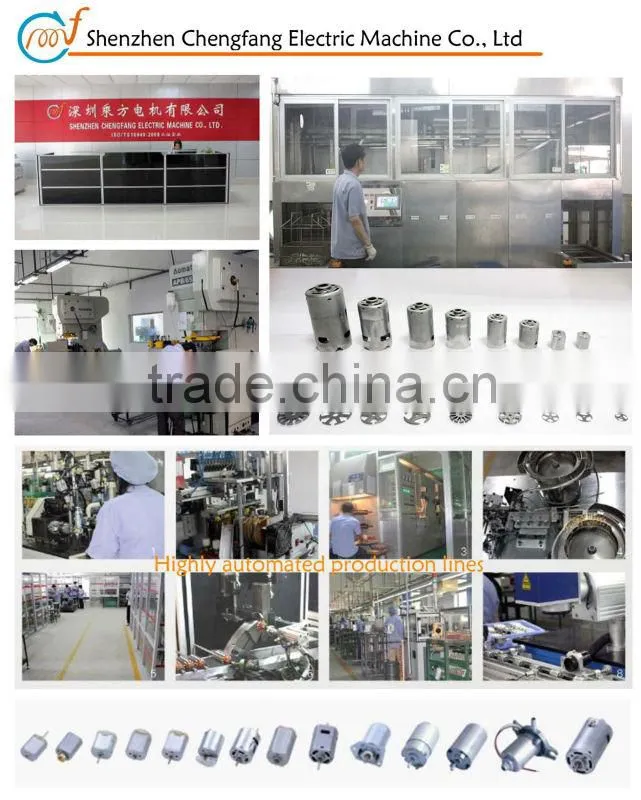

Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire






·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets

2.4V DC air pump motor FS-380SA-4037
