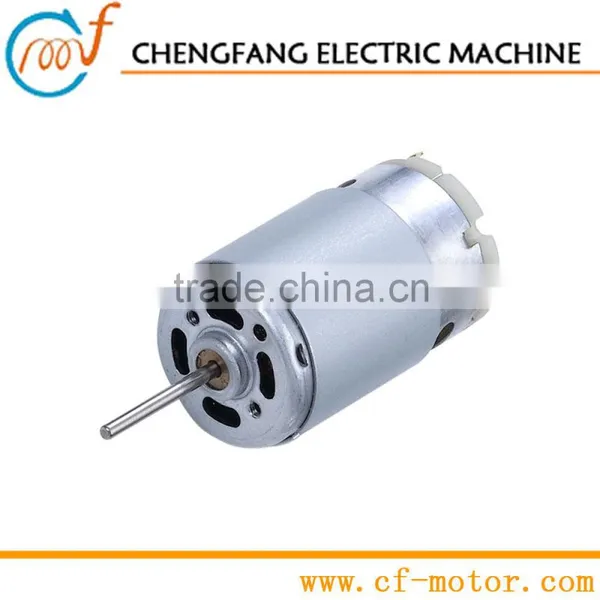

Power Tool Motors RS-395PAV, Brush dc Motor Drive ,small Electric Motors

Power Tool Motors RS-395PAV, Brush dc Motor Drive ,small Electric Motors thumbnail-1
Power Tool Motors RS-395PAV, Brush dc Motor Drive ,small Electric Motors photo-1
Negotiable MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF motor
Model Number:
RS-395A
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CF motor
Model Number RS-395A
Usage Other
Certification CCC
Type Micro Motor
Construction Permanent Magnet
Commutation Brush
Protect Feature Other
Speed(RPM) 3000~30000
Voltage(V) 1.0~24
DC Motor

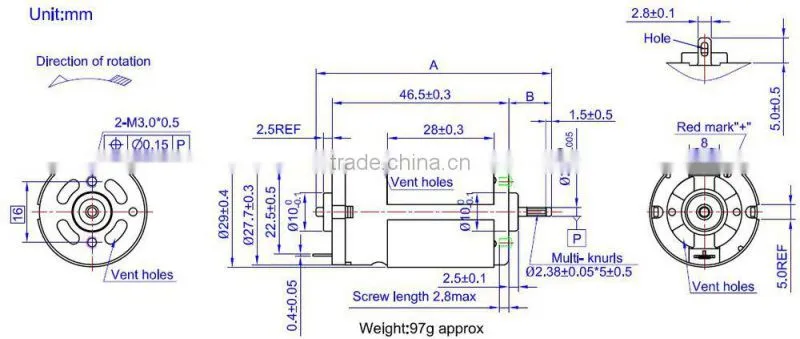

 Power Tool motors RS-395PAV, brush dc motor drive ,small electric motors

Power Tool motors RS-395PAV, brush dc motor drive ,small electric motors



Model No. RS-395PAVC2-3132R
Rated voltage 9VDC
No Load Speed(r/min) 10000
Current(A) 0.31
At Max Efficiency Speed(r/min) 8615
Current(A) 1.93
Torque(mNm) 13.6
Output(W) 12.25
Eff.(%) 70.6
At stall Current(A) 12
Torque(mNm) 98.1



Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz





Optional Design

                Motor Design

         Customized Options

. 2-pole stator

. Sr ferrite permanent magnet

. 3, 5, 7, 8, 9, 12,16 slots armature

. Silicon-steel lamination with epoxy coating

. High-carbon steel shaft

. Cu-Ag alloy commutator

. Copper-graphite brushes

. Be-Cu leaf-brush commutating system

. SECD round / flat type housing

. SECD end cap / glassfiber reinforced PA6/6 end cap

. Cylinder / self-aligning Cu-Fe alloy sintered bushes

. 155℃(class F) magnet wire









 . Leadwires with connector / pins

 . EMI suppression components

 . PTC or thermostate protection

 . Built-in AC/DC rectifier

 . Built-in cooling fan

 . Multiple output shaft

 . nurls, straight knurls, D-cut, stepshaft

 . Shaft-mounted gears, eccentric gears, belt pulleys

 . Stainless steel (SS304, SS420) shaft

 . Ball bearing

 . Cage-brush commutating system

 . Precious metal brush / commutator

 . Hall encoder

 . Low-cogging torque design

 . 180℃ (class H), 200℃ (class C) magnet wire

 . -40℃ ~ 220℃ bearing lubricant

 . Neodymium magnets
