Home > Electrical & Electronics > Electric Motor > DC Motor > 48V DC Electro Motor With Low Speed RS-385PAV

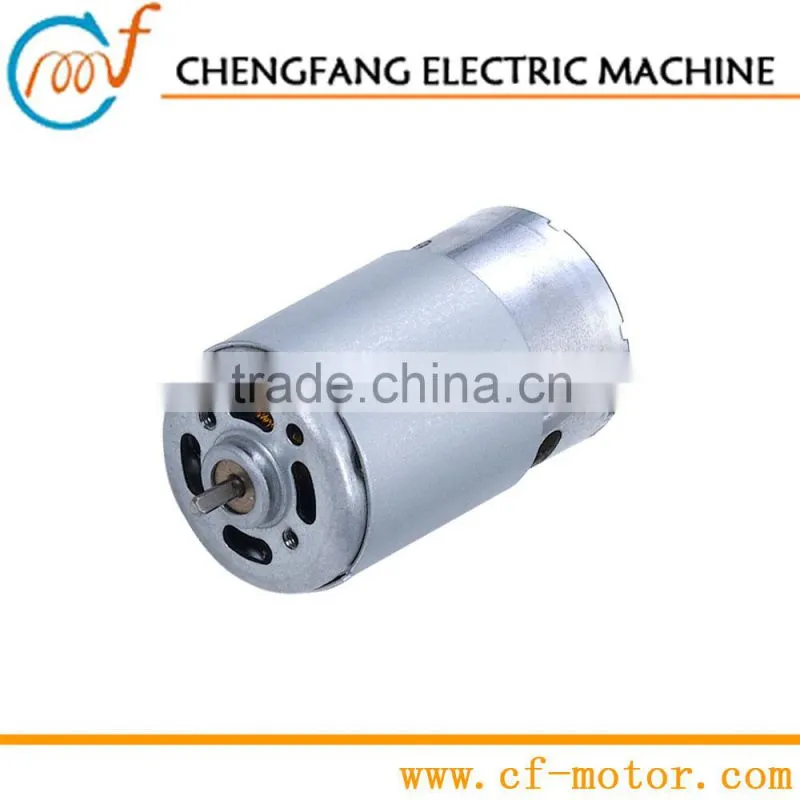

48V DC Electro Motor With Low Speed RS-385PAV

Name: 48V DC Electro Motor With Low Speed RS-385PAV
Brand: CF Motor, Chengfang
SKU: 126945979
Availability: InStock

48V DC Electro Motor With Low Speed RS-385PAV thumbnail-1

48V DC Electro Motor With Low Speed RS-385PAV photo-1

Negotiable MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CF Motor, Chengfang

Model Number:

RS-395PAV, RS-395PAV

Contact Supplier Request Quote Chat Now

Shenzhen Chengfang Electric Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CF Motor, Chengfang

Model Number RS-395PAV, RS-395PAV

Usage Home Appliance

Certification UL

Type Gear Motor

Construction Permanent Magnet

Commutation Brush

48VDC electro motor with low speed

The models we list below are part of our existing designs.

We offer specific motor design for every customer.

RS-395H

Model No.	RS-395SH-15130RW
Rated voltage	12VDC
No Load	Speed(r/min)	3300
No Load	Current(A)	0.07
At Max Efficiency	Speed(r/min)	2580
	Current(A)	0.25
	Torque(mNm)	7.1
	Output(W)	1.92
	Eff.(%)	63.7
At stall	Current(A)	0.9
At stall	Torque(mNm)	32.6

Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz

Sweeper DC motor

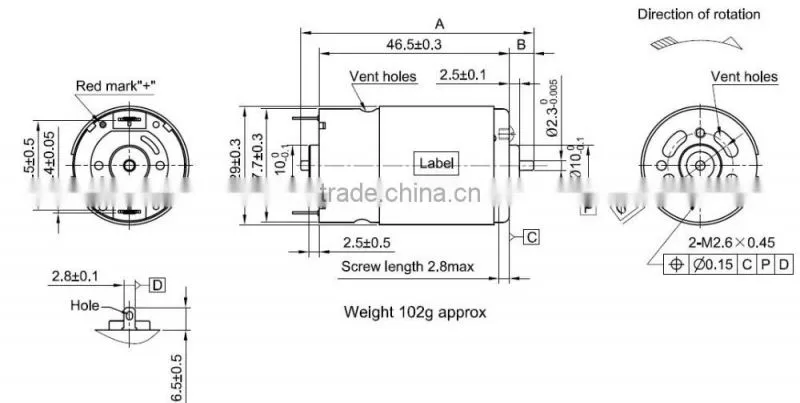

Dimension: φ 29 x 55 L. shaft O.D. 2.3 mm
Basic Structure: SECD housing / SECC end cap
Application: Sweeper/Automotive Products/Coffee Maker
Weight: Approx. 130g

Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire

·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets
