brief introduction:

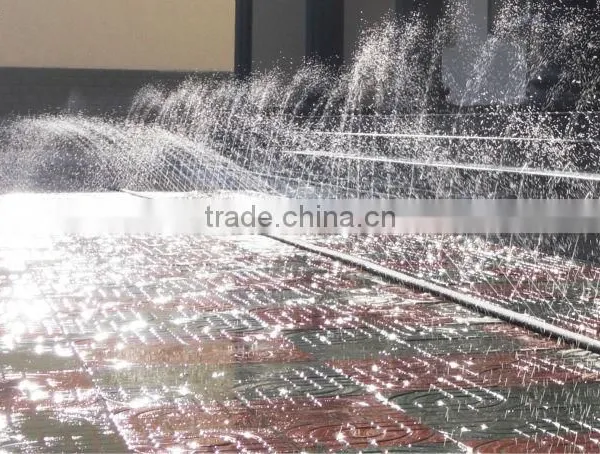

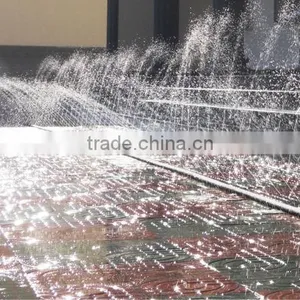

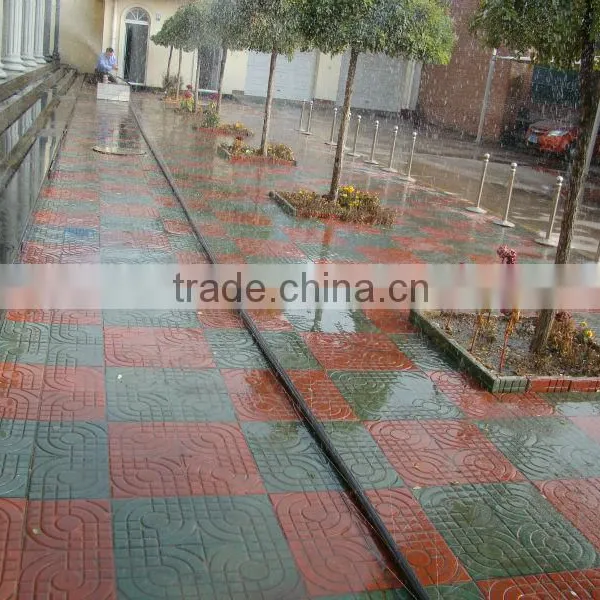

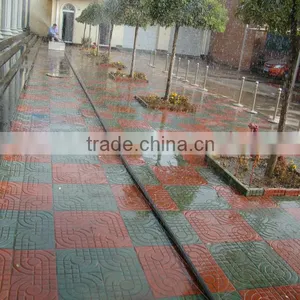

the micro spraying hose is also called spraying tape,many holes tape,micro spraying irrigation tape.we make many small holes on the pressed flat tape mechanically or by laze.the tape with three,five or more holes for each group is paved on the ground and the water will go up and then down like fine rain under the pressure,the micro spraying tape is also one of the water saving irrigation product.due to different size and pressure,the spraying width range can be 2m to 8m.
micro spraying tape sizes:
| sizes |
thinkness mm |
holes space mm |
holes type mm |
rated working pressure Mpa |
paving length m |
sprying width m |
each roll length m |
|
|
diameter mm |
folded diameter mm |
|||||||
| φ 25 | 39 | 0.2-0.4 | ≥ 150 |
two hold
|
0.1 | 50 | 2 | 200 |
| φ 32 | 50 | 0.2-0.4 | ≥ 150 | sloping three holes | 0.1 | 50 | 3 | 200 |
| φ 40 | 63 | 0.2-0.4 | ≥ 150 | sloping three holes | 0.1 | 80 | 3 | 200 |
| φ 50 | 78.5 | 0.2-0.4 | ≥ 200 | sloping five holes | 0.1 | 100 | 4 | 150 |
| φ 63 | 99 | 0.2-0.4 | ≥ 250 | sloping five holes | 0.1 | 100 | 4 | 150 |
| φ 75 | 118 | 0.2-0.4 | ≥ 250 | sloping five holes | 0.1 | 100 | 6 | 150 |
| φ 90 | 141 | 0.3-0.5 | ≥ 300 | sloping seven holes | 0.1 | 150 | 7 | 100 |
| φ 110 | 173 | 0.3-0.5 | ≥ 300 | sloping seven holes | 0.1 | 150 | 8 | 100 |
Application Area:
1. Applied in the greenhouse, plains, fruit trees on the hillside, garden, grow seedlings flowers, grass,
vegetables, etc
2. Suitable for large micro spray under watermelon film, vegetables, wheat, medicinal herbs, nursery stock, etc
3. Apply to the golf course, open air agriculture
irrigation tape making machine packaging:
Standard seaworthy packing wooden box,in order to prevent due to External force damaged during shipping,the goods used to strong wooden case.
1.we technical staff will 24-hour online answer your questions for you.
2. After the equipment factory,we will provide for you with free installation and debugging within 1 year, you just responsible for accommodation problems
