Handheld Long Distance Woki Toki Quansheng TG-1000PLUS

Handheld Long Distance Woki Toki Quansheng TG-1000PLUS thumbnail-1
Handheld Long Distance Woki Toki Quansheng TG-1000PLUS photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
QuanSheng
Model Number:
TG-1000 Plus
Contact Supplier Request Quote Chat Now
Fujian Nanan Quansheng Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen / shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name QuanSheng
Model Number TG-1000 Plus
Type Handheld
Dimensions 145*61*44mm
Frequency Range 136-174/350-390/400-480MHz
Storage Channel 16
Talk Range 10km

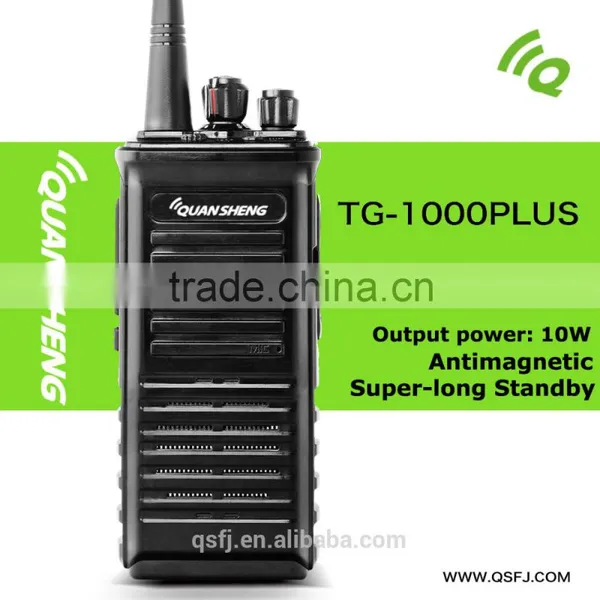

Handheld long distance woki toki Quansheng TG-1000PLUS



waterproof IP5/4

Applied state-of -the-art polymer Li-Ion battery,2900MAH big battery capacity,350 hours super-long standby time!

Stainless steel mesh speaker with dust-proof,antimagnetic features prolong its service life.

Imported PC material makes the shell more stable and more solid.

This TG-1000PLUS is much bigger than the normal ones,and coverage distance is much further,using this radio in construction site,transportations,properties are quite helpful.




01. Outpower: 10W

02. Adopting newest polymer Li-ion battery

03. Adopting imported PC material in case to make it solid abradable

04. 350 hours' super-long waiting time

05. CTCSS/DCS

06. Voice prompt ( Chinese and English )

07. High or Low power adjust

08. Squelch level adjust

09. Wide/Narrow bandwidth

10. Jacklight

11. PC programmable

12. Channel scan

13. Time-out-timer

14. Low power alarm

15. DTMF PTT-ID

16. 1750Hz call tone

17. Tail tone Elimination

18. Roger





GENERAL

Frequency Range                                         UHF: 400-480MHz

                                                                        VHF: 136-174MHz

Channel                                                         16

Channel Spacing                                          25 /12.5KHz

Operating Voltage                                        7.2V

Antenna Impedance                                     50Ω

Operating Temperature                              -25°C~+65°C

Frequency Stability                                     ±2.5ppm

Battery                                                          4000mAh (Polymer Li-ion)

Dimensions                                                  145*61*44mm

Weight                                                          340g



Transmitter

Output Power                                               10W

Modulation                                                   16KΦF3E/11KΦF3E

Maximum Deviation                                     ≤5.0KHz (W)

Spurious Emission                                       ≤65dB

Audio Distortion                                           ≤5%



Receiver

Sensitivity                                                     ≤0.25/0.28μV

Adjacent Channel Selectivity                     70/50dB

Intermodulation                                           60dB

Spurious Response Rejection                   70dB

S/N                                                                 43/38dB

Rated Audio Power Output                        ≤0.5W

Rated Audio Distortion                               ≤5%





Handheld long distance woki toki Quansheng TG-1000PLUS





QuanSheng Electronics

 is one of the lead manufacturer of handheld radios

Top ten famous handheld radio brand in China

Design & manufacture 2 way radio for 20 years,

With ISO, CE, FCC and Rohs,

Taking 30,000 square meters,

with 500 people, 7 product line, and 9 SMT lines.

Export 1,000,000 pcs two way radios to 60 countries each year.
