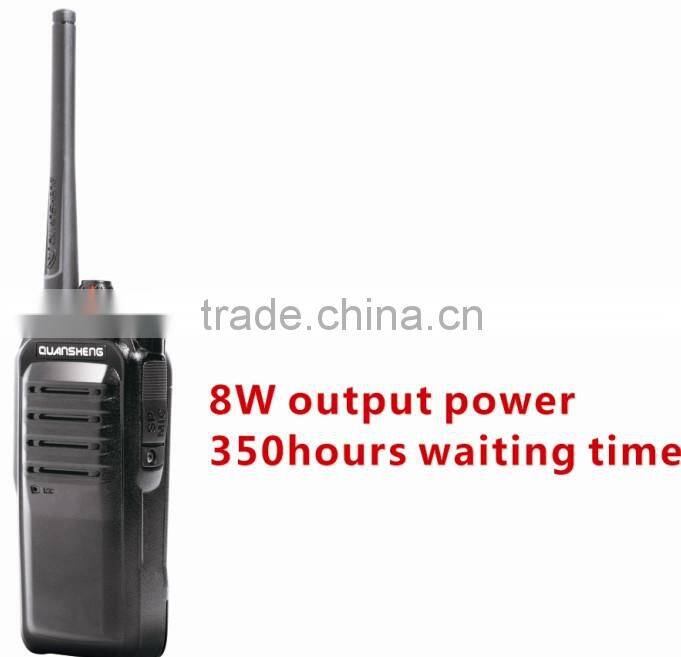

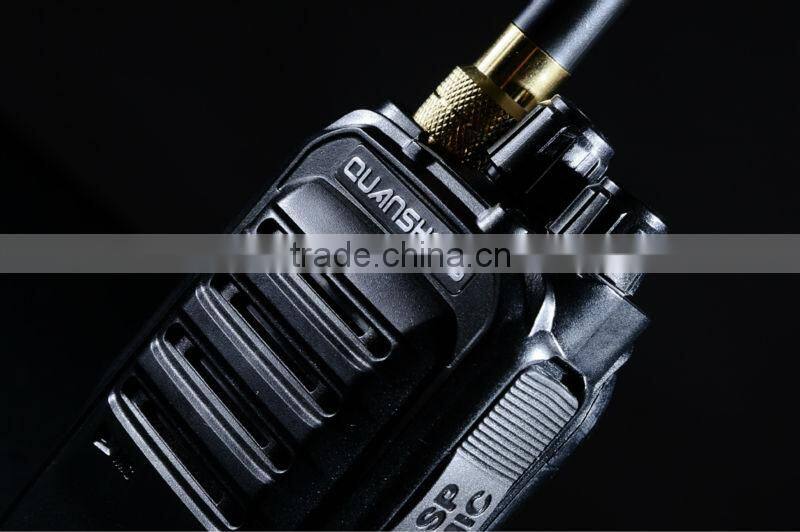

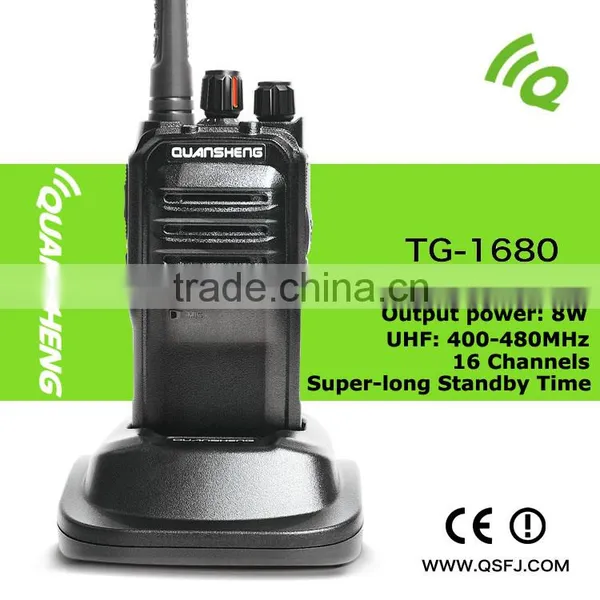

Handheld walkie talkie Quansheng TG-1680
This 8Watts high power QuanSheng TG-1680 is QuanSheng's new arrival item. 6KM long range and with 3500mAh Polymer Li-ion Battery.
The handheld radio with compact structure is perfect for professional hotel, plant, railway and secutity, etc.
01. Outpower: 8W
02. Adopting newest polymer Li-ion battery
03. Adopting imported PC material in case to make it solid abradable
04. 350 hours' super-long waiting time
05. CTCSS/DCS
06. Voice prompt ( Chinese and English )
07. High or Low power adjust
08. Squelch level adjust
09. Wide/Narrow bandwidth
10. Jacklight
11. PC programmable
12. Channel scan
13. Time-out-timer
14. Low power alarm
GENERAL
Frequency Range UHF: 400-480MHz
VHF: 136-174MHz
Channel 16
Channel Spacing 25 /12.5KHz
Operating Voltage 7.2V
Antenna Impedance 50Ω
Operating Temperature -25°C~+65°C
Frequency Stability ±2.5ppm
Battery 3500mAh (Polymer Li-ion)
Dimensions 120 X 53X 38mm
Weight 295g
Transmitter
Output Power 8W
Modulation 16KΦF3E/11KΦF3E
Maximum Deviation ≤5.0KHz (W)
Spurious Emission ≤65dB
Audio Distortion ≤5%
Receiver
Sensitivity ≤0.25/0.28μV
Adjacent Channel Selectivity 70/50dB
Intermodulation 60dB
Spurious Response Rejection 70dB
S/N 43/38dB
Rated Audio Power Output ≤0.5W
Rated Audio Distortion ≤5%
We QuanSheng is one of the lead manufactor of handheld radios, walkie talkie, VHF and UHF transceivers
in China established in 1996.
Welcome to visit our QuanSheng and contact us now!
