round irrigation dripper mould.
Technical parameters of round dripper,emitter moulding, mould
Plastic materials |
PE |
PE |
|
Cavity quantity |
16 cavities |
32cavities |
Note |
|
Overall dimensions of the mold (mm) |
400*250*270 |
600*450*350 |
|
Gate forms |
Submarine gate; cold(hot)runner inlet |
Submarine gate; hot runner inlet |
Balance material feeding, automatically interrupted pouring |
Pushing-out mode |
Once pushing-out of ejector pin |
Once pushing-out of ejector pin |
Making sure that the final products will drop off automatically |
Cooling mode |
Water-cycle cooling |
Water-cycle cooling |
|
Working mode |
Automatic production |
Automatic production |
|
Mould life |
1Million Times |
1 Million times
|
according to your working environment |
Cavity / Core steel |
S136 |
||
Producing deviation |
≤5% |
≤5% |
Deviation of emitter flowing rate |
Equipments |
High speed CNC, standard CNC, EDM, Wire Cutting, Grinder, Plastic Injection Molding Machine for testing mold from 50-3000T available. |
||
Model of injection moulding machine |
ZF1600-A |
ZF2400-A |
|

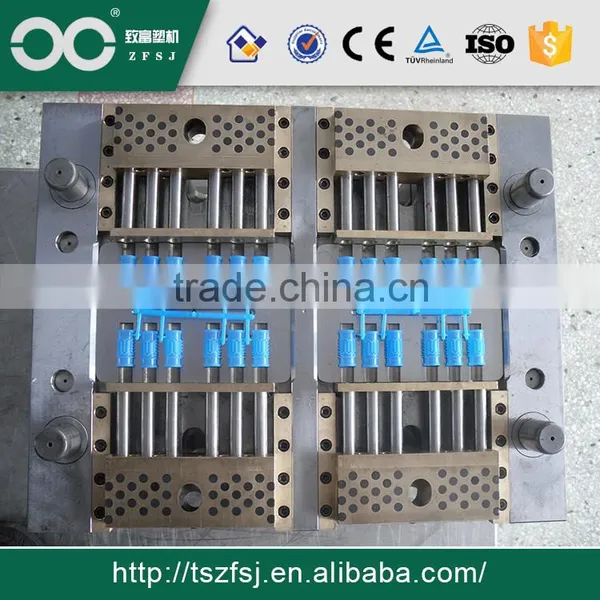

Mould design :
The emitter/dripper mold is designed and manufactured by ourself .
We have our own mold manufacturing workshop .
The mold processing machine we use is Switzerland AGIE Brand .
Mold material is Sweden steel .
The mold precision is high. The mould flow rate is less than 3%
The mould can be customized, please send us 2D, 3D drawings or samples

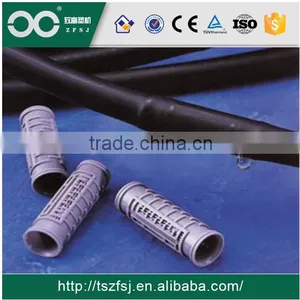

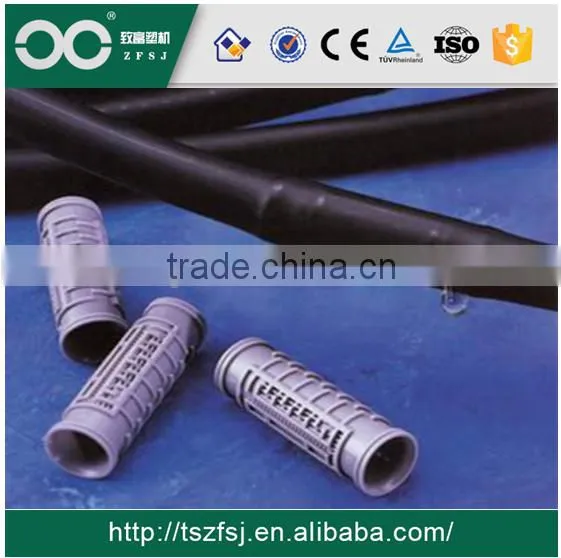

The flat dripper produced by ourselves :
The dripper mould package :
wooden box
can be shipped by air or by sea .
it is accoding to customer's demands .
The usage of the flat dripper is usded for agricultral inline flatd dripper irrigation tape .
the flow rate of the flat dripper can be adjusted according to plant needed .
The company has import-export authority independently and passes the Certificate of ISO9001 Quality System and European Union CE Certificate.
Our company which has more than fifteen years of history for making drip irrigation equipment in China and even the biggest drip irrigation machine manufacturer and sale enterprise even in the world.
The superior quality, favorable price and perfect after-sales service make the products be well received at home and abroad.
