Specifications
1.Flat emitter mold2.Mold Material is Sweden Steel.
3.certificate:ISO9001
4.Injection molding machine
5.Various flow rate
plastic irrigation dripper mould.

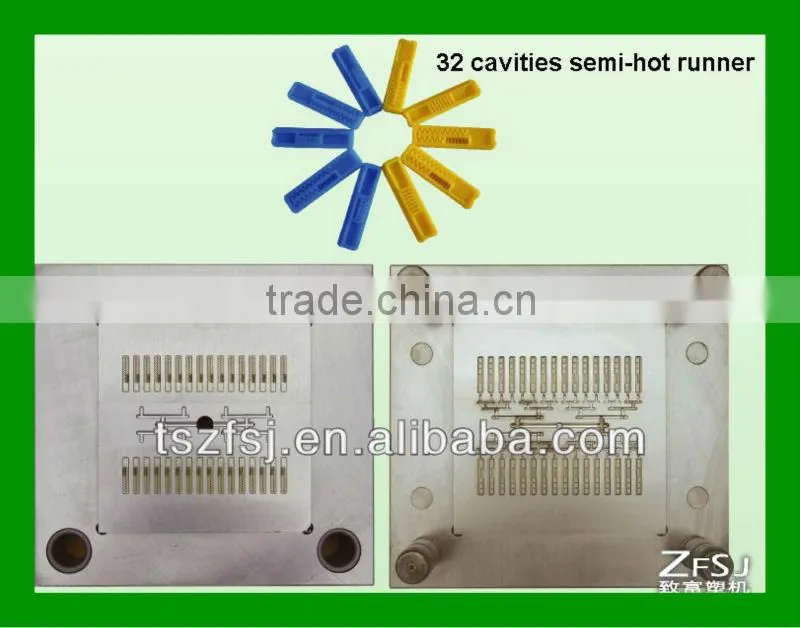

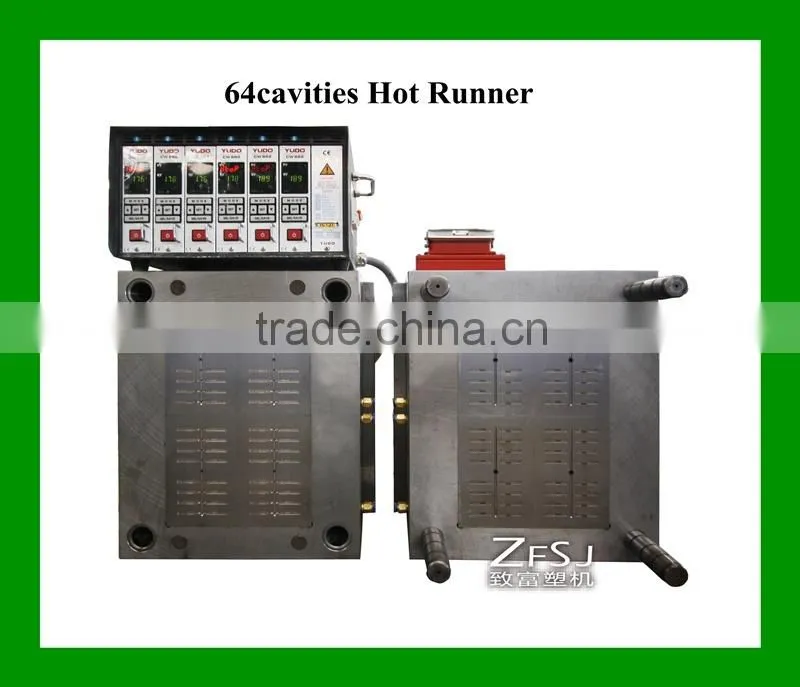

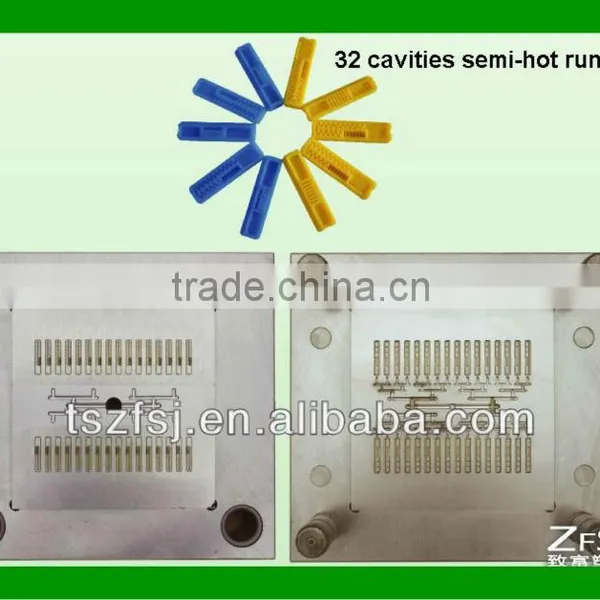

ONE: THE PARAMETER OF THE FLAT DRIPPER MOLD :
Cavity quantity |
Thirty-two cavities |
Sixty-four cavities |
Note |
Overall dimensions of the mold(mm) |
350*350*270 |
500*450*455 |
|
Gate forms |
Submarine gate/cold(hot)runner inlet |
Submarine gate/hot runner inlet |
Balance material feeding, automatically interrupted pouring |
Pushing-out mode |
Secondary pushing-out of ejector pin |
Secondary pushing-out of ejector pin |
Making sure that the final products will drop off automatically |
Cooling mode |
Water-cycle cooling |
Water-cycle cooling |
|
Working mode |
Automatic production |
Automatic production |
|
Service life |
One point five million times |
One point five million times |
|
Producing deviation |
≤5% |
≤5% |
Deviation of emitter flowing rate |
Model of injection molding machine for it |
ZF1600-A |
ZF2400-A |
|

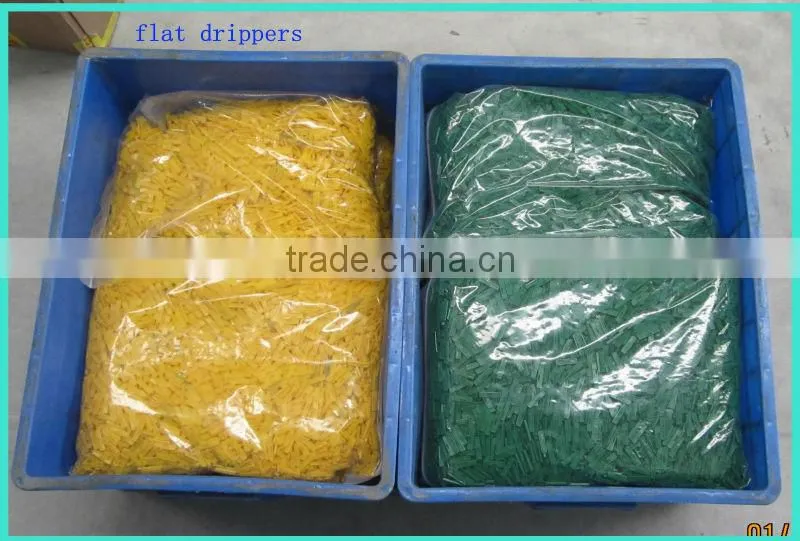

TWO: THE PRODUCT PRODUCED BY THE MOLD IS AS FOLLOWS:

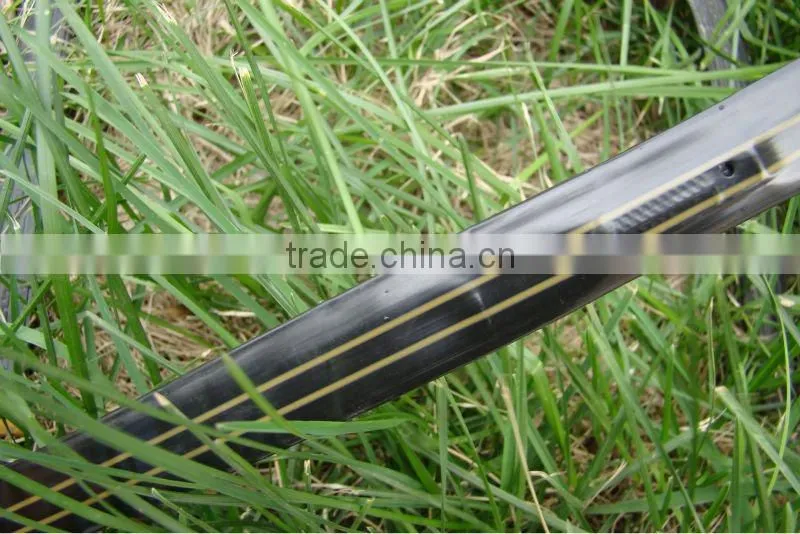

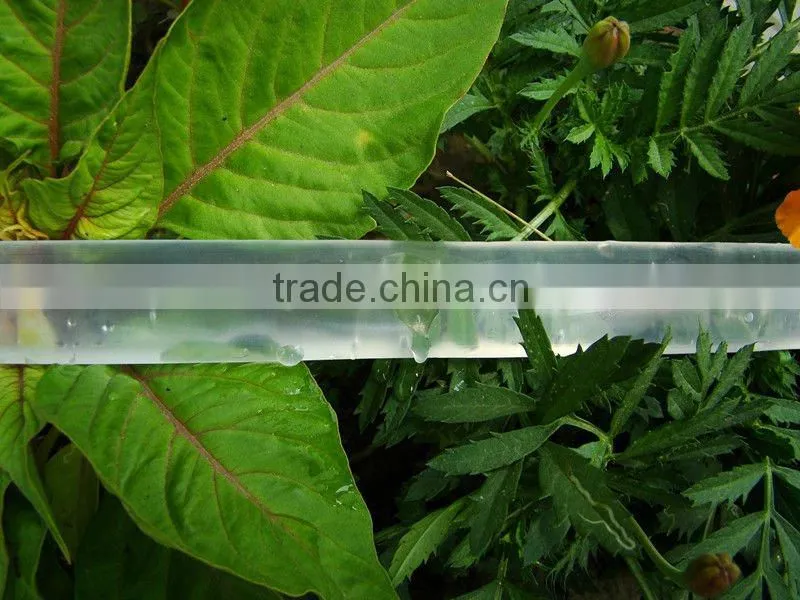

the flat dripper is used to produce inline flat dripper irrigation tape which is widely used in farm , garden , vegetable , fruit ,tress and flowers .
Especially for Row Crops irrigation.

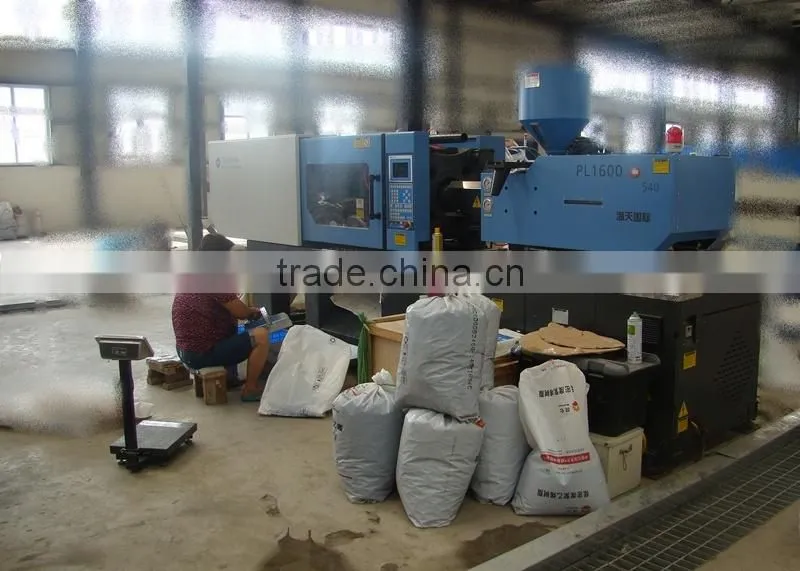

beside this ,we can also supply the injection mould machine:
ZF-1600
The flat dripper mold is designed and manufactured by ourself .

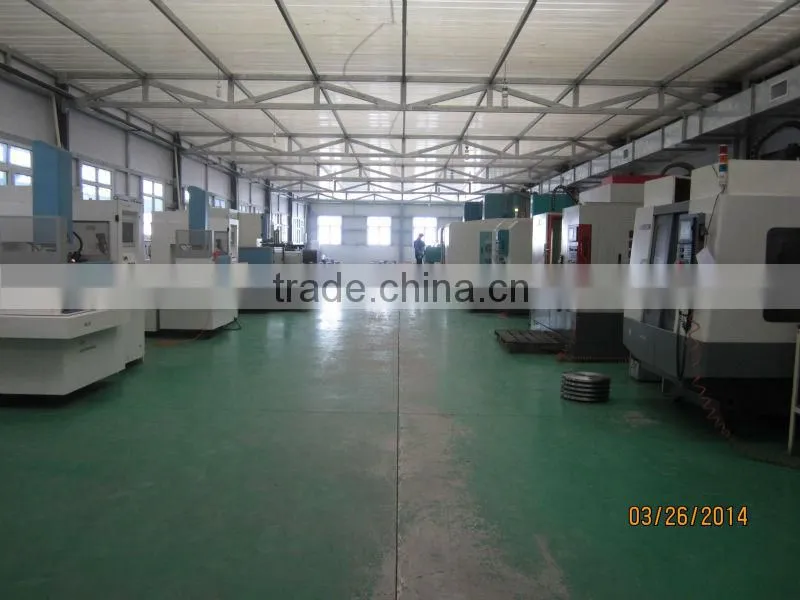

We have our own mold manufacturing workshop .

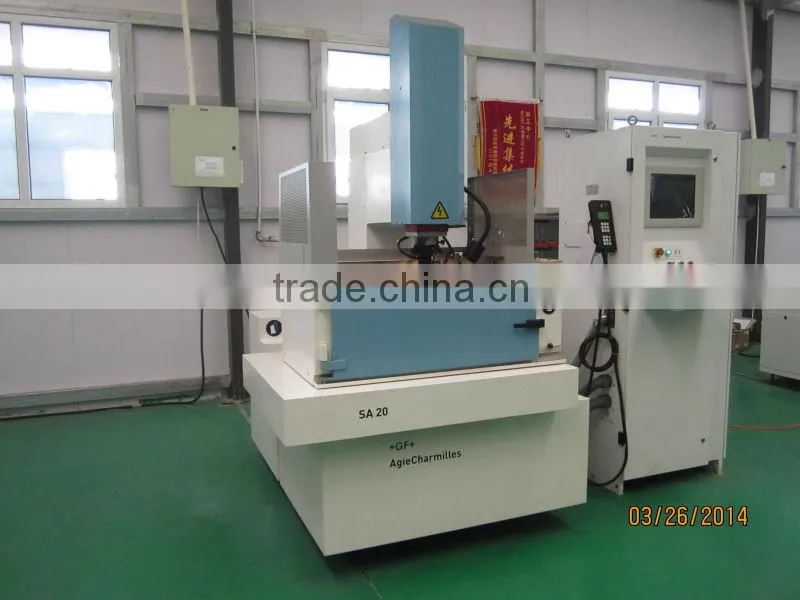

The mold processing machine we use is Switzerland AGIE Brand .
Mold material is Sweden steel .
The mold precision is hign . The mold flow rate is less than 3%
Mold package :
wooden Box
Transportation way : By sea or by air . (DHL ,TNT,Etc......)

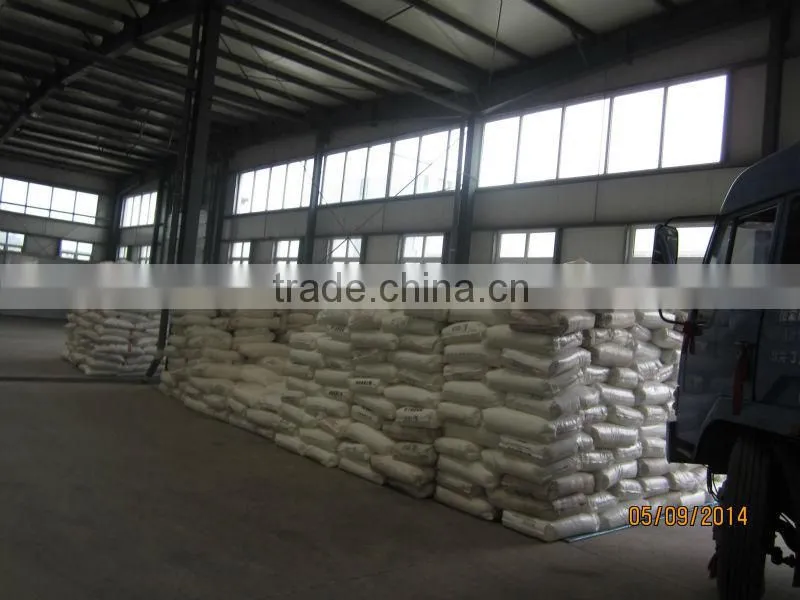

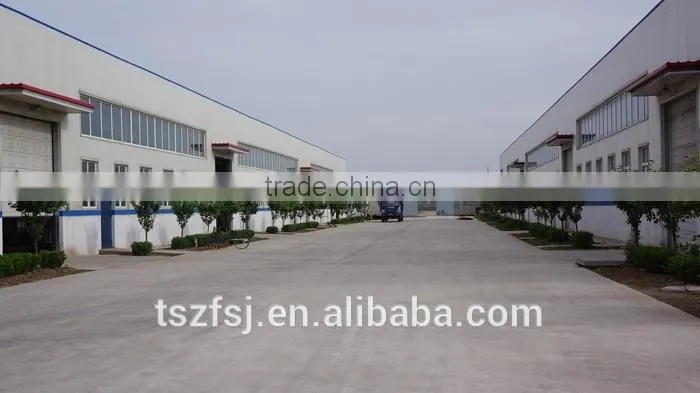

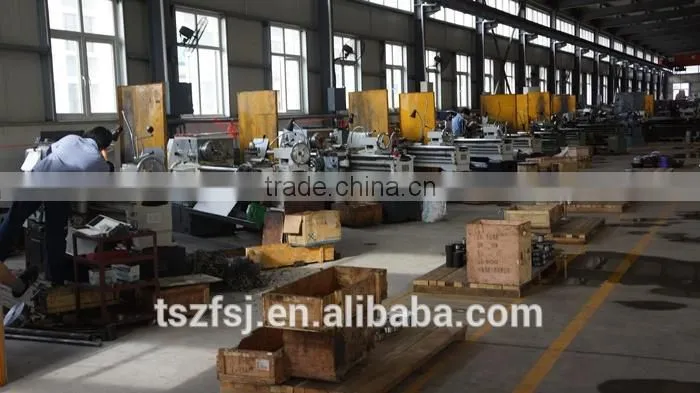

Our mold workshop and company
