Flat drippper mold.
Technical parameter of flat dripper mold
Cavity quantity |
Thirty-two cavity |
Sixty-four cavity |
Note |
|
Overall dimension of the mold (mm) |
350×350×270 |
500×450×455 |
|
Gate forms |
Submarine gate/ cold(hot) runner inlet |
Submarine gate/ hot runner inlet |
Balance material feeding, automatically interrupted pouring |
Pushing-out mode |
Once pushing-out of ejector pin |
Once pushing-out of ejector |
Making sure that the final products will drop off automatically |
Cooling mode |
Water-cycle cooling |
Water-cycle cooling |
|
Working mode |
Automatic production |
Automatic production |
|
Service life |
One point five million times |
One point five million times |
|
Producing deviation |
≤5% |
≤5% |
|
Emitter specifications |
¢6,¢8,¢12,¢16,¢20 |
Deviation of emitter flowing rate |
|
|
Model of injection molding machine for it |
ZF1600-A |
ZF2400-A |
|

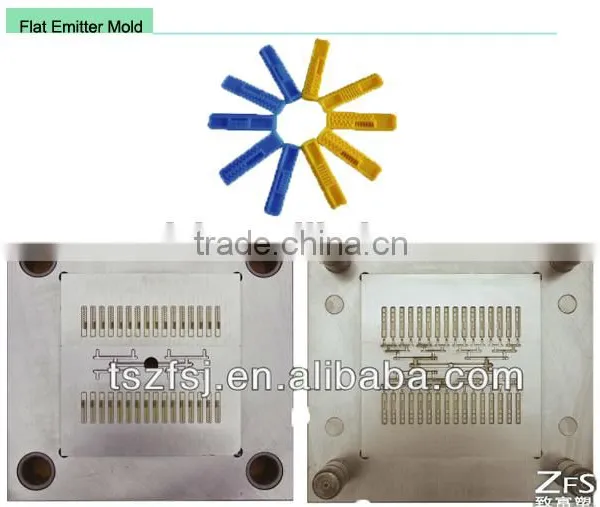

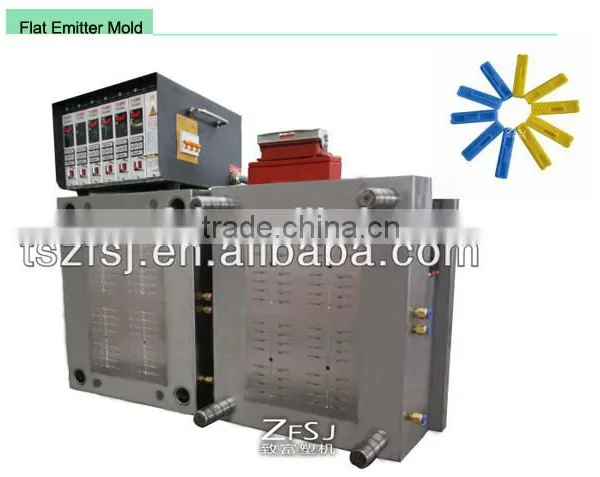

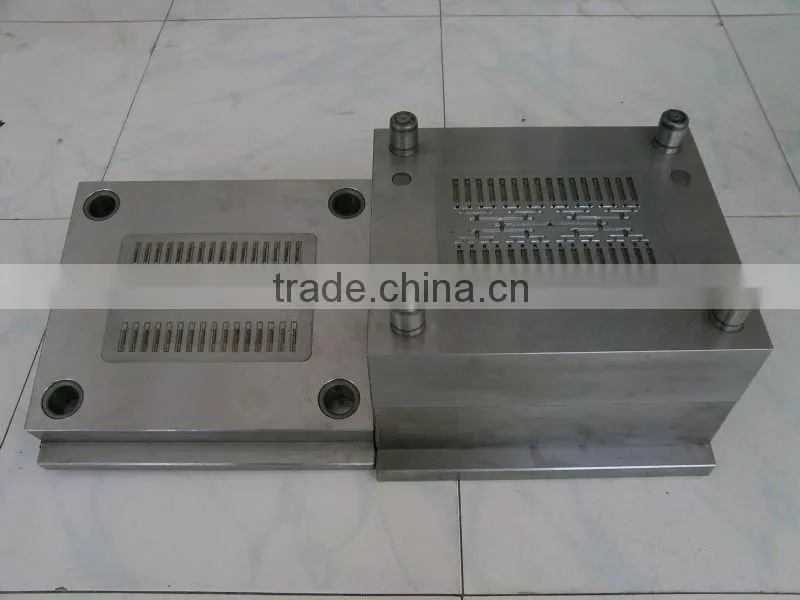

Flat dripper mold

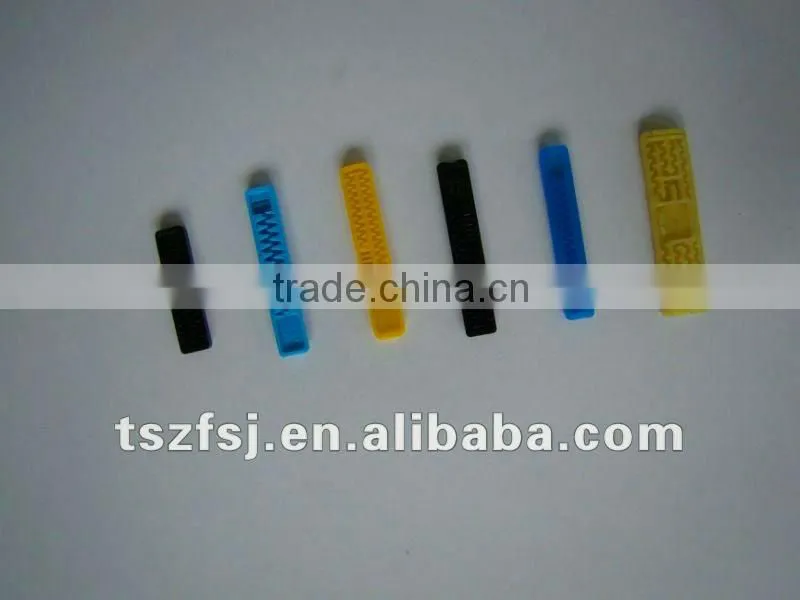

Different flat drippers

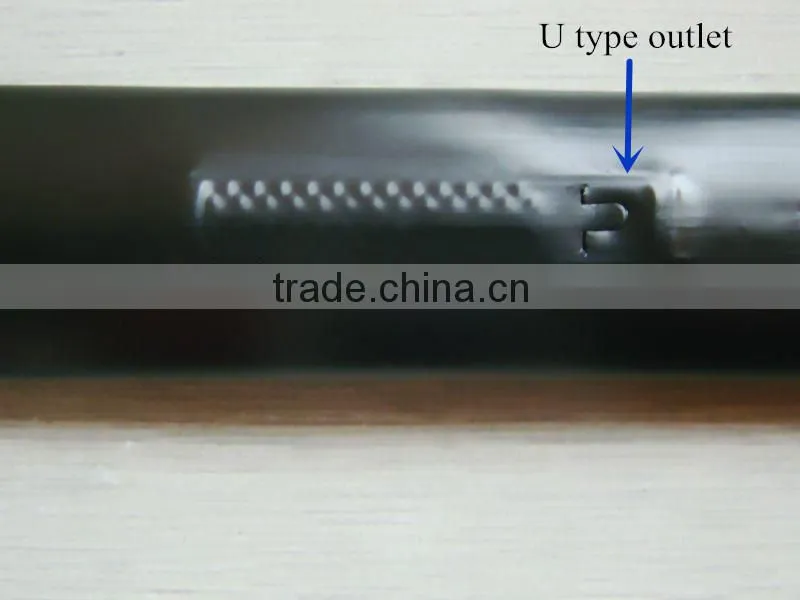

Application of flat dripper: fixed on the inside of drip irrigation tape

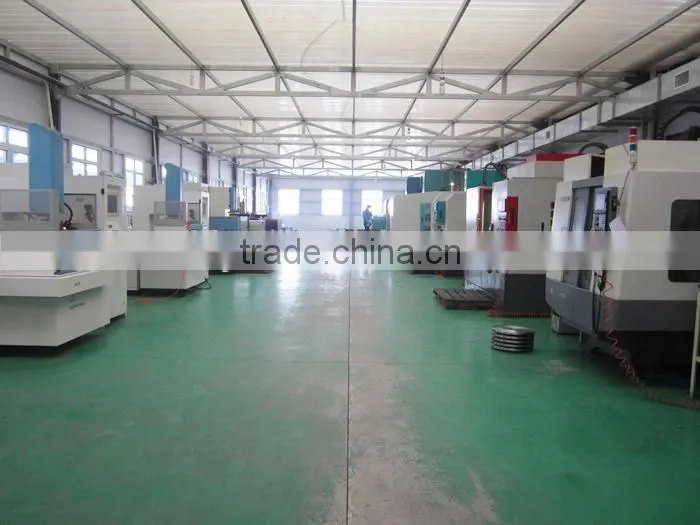

Mold workshop
Fair Show
After Sales Service and Guarantee
Company Profile
Company commitments itself to research,develop,and promote the use of agricultural water-saving irrigation equipment,training a number of outstanding technicians,including four senior engineers,25 engineers,and 34 mechanics.
Under the leadership of chairman Mr.Zhifu Wang,through continuous exploration and innovation,the drip irrigation equipment developed by company has a qualitative leap in productivity and mechianical properties and obtains 34 patents(patents of invention,utility models patents,design patents).It is named advanced scientific research enterprise by Ministry of Science and Technology of China.It is also the member of China Chamber of Commerce.The company has import and export rights and has passed ISO9001 and CE certification.
Products are sold around the country and exported to Europe,America,Middle East and Southeast Asia,etc,more than thirty countries and regions which is well -received by customer at home and abroad.
Tangshan Zhifu Plastic Machinery CO.,LTD Established in 1986,Mr Wangzhifu who is the founder and chairman has been working for the development of water saving and irirgation,After more than 20 years ,we established Raingod(Tangshan) Water Saving Science And Technology Group in 2014.The company is a professional plastic machinery manufacturer with researching ,designing,and manufacturing which covers more than 100,000m².
Sign agreement with China Agricultural University....
Our company management principle:people first,technology advanced.
Service Mission:Customer Orientation,Reputation First.Fulfilling customer's requirement is the only mission of the company,satisfying customer's expectation is our everlasting pursuit.Based on technical force,insisting the principle pepple first,company do its best to provide the highest quality service for friends all over the world.
Exhibition Photo:
