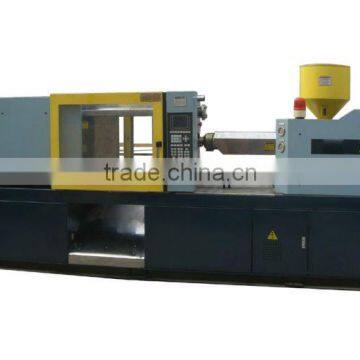

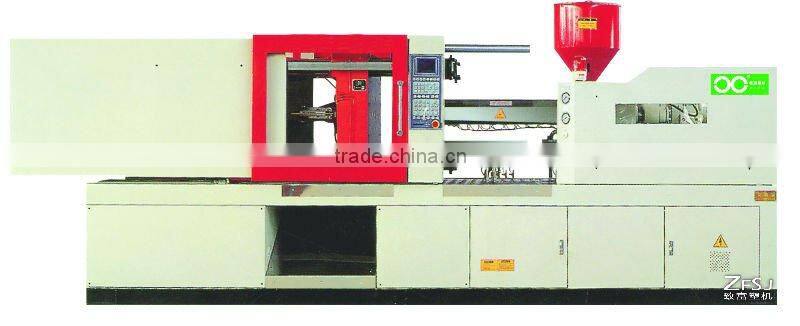

plastic injection molding machine

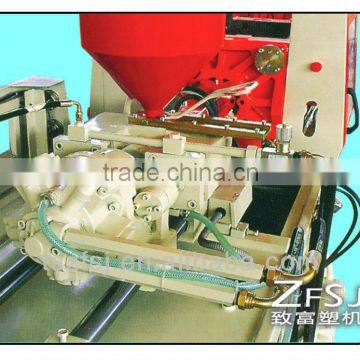

Injection section
Double guiding rod supporting.
Double cylinder balance injection
One-string hydraulic pressure mould setting
Power seal single-cylinder push setting
Super quality chrom molydenum screw and barrel are processed by nitridation

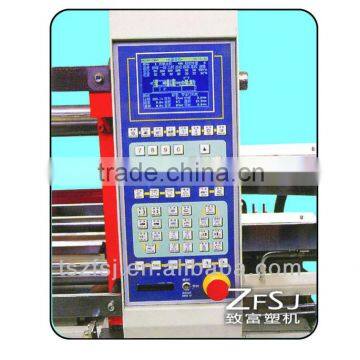

Computer-controlled
We use imported special pirpose computer of injection molding it’s processed and controlled by CPU. The execution speed of control system is improved and thus improves accuracy of machine and sensitivity of oil over-temperature alarm.

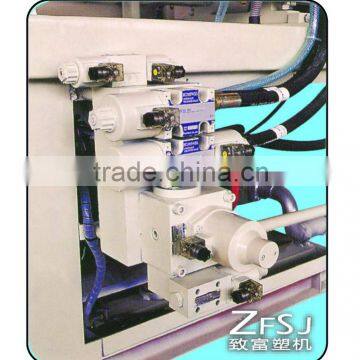

Hydraulic unit
Hydraulic unit: Applied with imported advanced hydraulic components. System pressure is controlled through proportional valves. In addition, a quick mold clamping devices and fast-respond excellent control valves are also fitted on the unit.

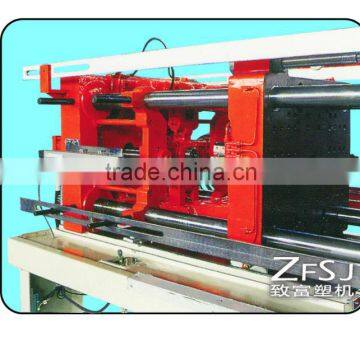

Clamping unit
Clamping unit: the design on five-point double toggle locking mechanism is optimized with the adoption of computer. Finite-Element Analysis is applied to design the platens. Adjustable mechanical supporting system is used for moving platen on protect tie bars and prolong their lives. The unit also functions of low pressure mold protection with extra sensitivity.

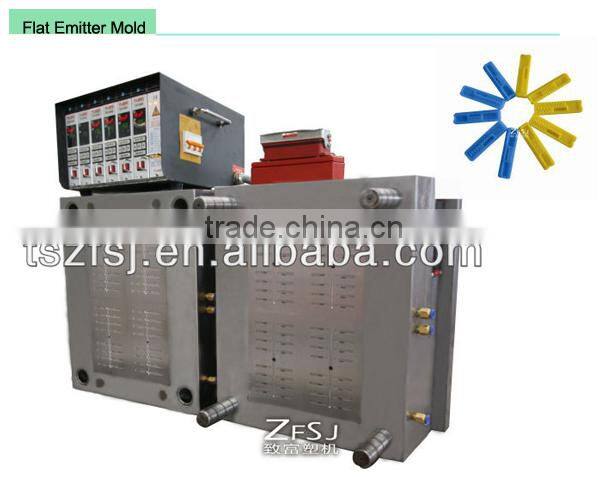

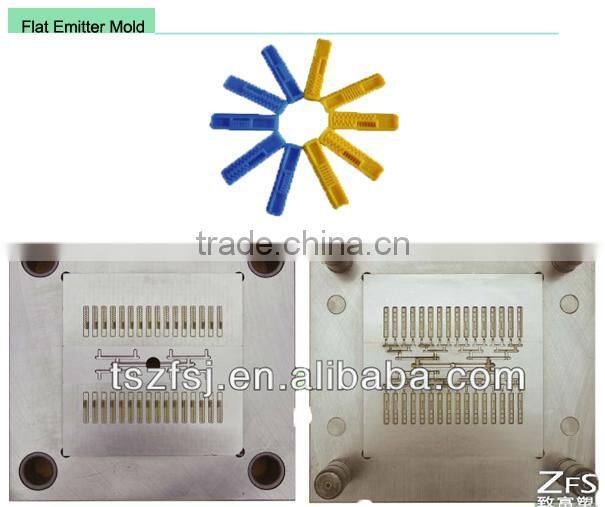

Flat dripper mold :
The flat dripper mold is designed and manufactured by ourself .
We have our own mold manufacturing workshop .
The mold processing machine we use is Switzerland AGIE Brand .
Mold material is Sweden steel .
The mold precision is hign . The mold flow rate is less than 3%
We can provide customer 32 cavites , cold runner mold .
Also we can provide customer , 64 cavites , semi-hot runner mold .

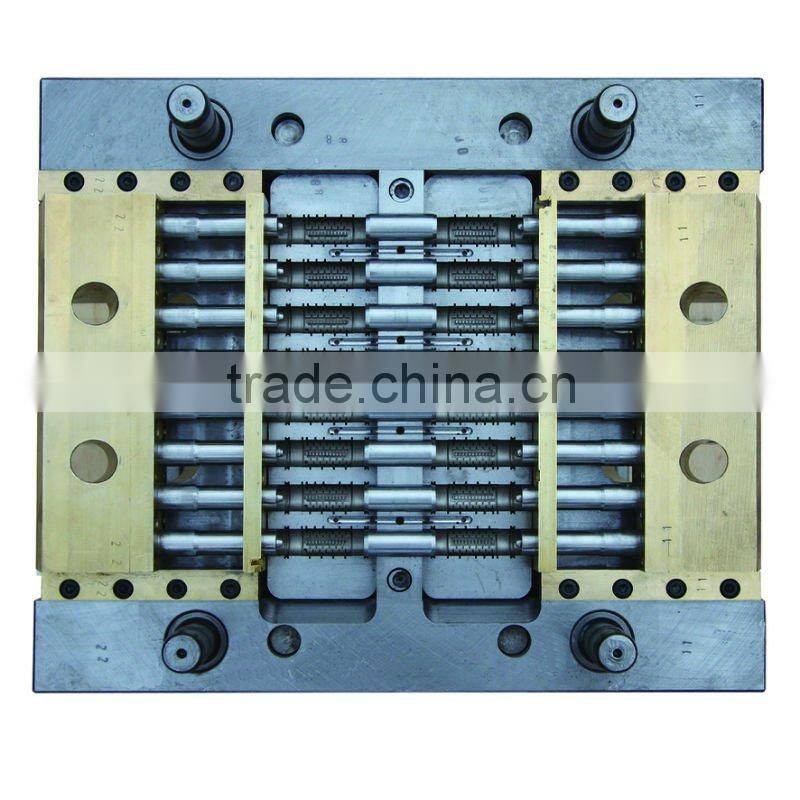

Dripper mold
--16cavities round dripper mold and 32 cavities dripper mold available.
--We can provide customer both the dripper mold and the drippers. The size and flow rate are on customer demands.
--Please send us your 2D/3D drawing of the dripper; or send us sample
--We are self-depand mould design and manufacture
Technical parameters of round dripper,emitter moulding, mould
Plastic materials |
PE |
PE |
|
Cavity quantity |
16 cavities |
32cavities |
|
|
Dimensions (mm) |
4000*250*270 |
600*450*350 |
|
Gate forms |
Submarine gate; cold(hot)runner inlet |
Submarine gate; hot runner inlet |
Balance material feeding, automatically interrupted pouring |
Pushing-out mode |
Once pushing-out of ejector pin |
Once pushing-out of ejector pin |
Making sure that the final products will drop off automatically |
Cooling mode |
Water-cycle cooling |
Water-cycle cooling |
|
Working mode |
Automatic production |
Automatic production |
|
Mould life |
1Million Times |
1 Million times
|
according to your working environment |
Cavity / Core steel |
S136 |
||
Producing deviation |
≤5% |
≤5% |
Deviation of emitter flowing rate |
Equipments |
High speed CNC, standard CNC, EDM, Wire Cutting, Grinder, Plastic Injection Molding Machine for testing mold from 50-3000T available. |
||
|
Model of injection moulding machine |
ZF1600-A |
ZF2400-A |
|
Company Profile
Company commitments itself to research,develop,and promote the use of agricultural water-saving irrigation equipment,training a number of outstanding technicians,including four senior engineers,25 engineers,and 34 mechanics.
Under the leadership of chairman Mr.Zhifu Wang,through continuous exploration and innovation,the drip irrigation equipment developed by company has a qualitative leap in productivity and mechianical properties and obtains 34 patents(patents of invention,utility models patents,design patents).It is named advanced scientific research enterprise by Ministry of Science and Technology of China.It is also the member of China Chamber of Commerce.The company has import and export rights and has passed ISO9001 and CE certification.
Products are sold around the country and exported to Europe,America,Middle East and Southeast Asia,etc,more than thirty countries and regions which is well -received by customer at home and abroad.
Tangshan Zhifu Plastic Machinery CO.,LTD Established in 1986,Mr Wangzhifu who is the founder and chairman has been working for the development of water saving and irirgation,After more than 20 years ,we established Raingod(Tangshan) Water Saving Science And Technology Group in 2014.The company is a professional plastic machinery manufacturer with researching ,designing,and manufacturing which covers more than 100,000m².
Sign agreement with China Agricultural University....
Our company management principle:people first,technology advanced.
Service Mission:Customer Orientation,Reputation First.Fulfilling customer's requirement is the only mission of the company,satisfying customer's expectation is our everlasting pursuit.Based on technical force,insisting the principle pepple first,company do its best to provide the highest quality service for friends all over the world.
Exhibition Photo:
