Specifications
12V dc electric motorDC Motor for massager/
Dia.*L:41.8mm*59.5mm
ESPL-755PM-3169-DLM
Weight: 295g Approx

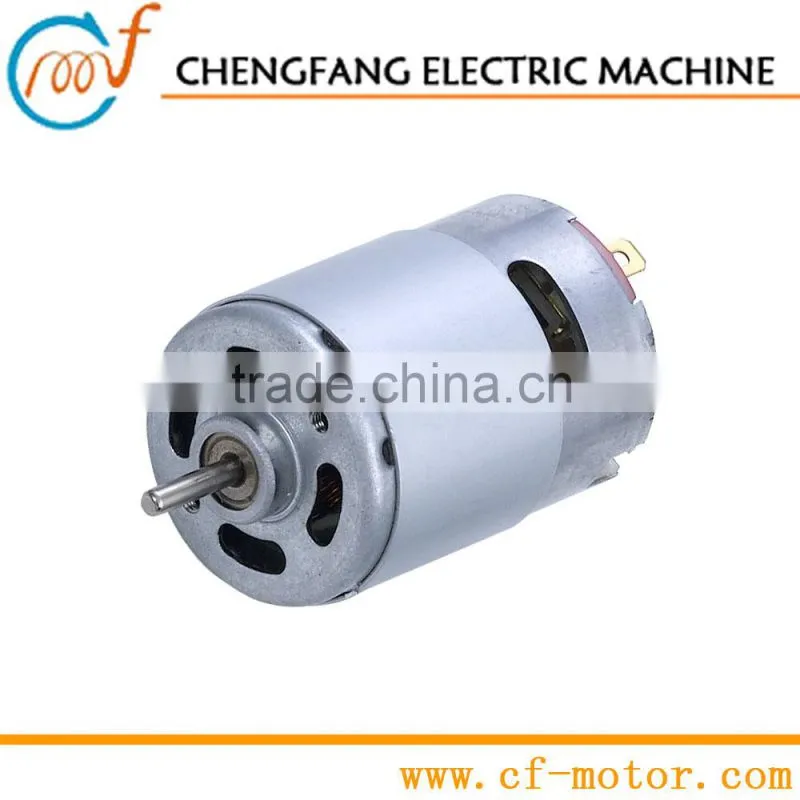

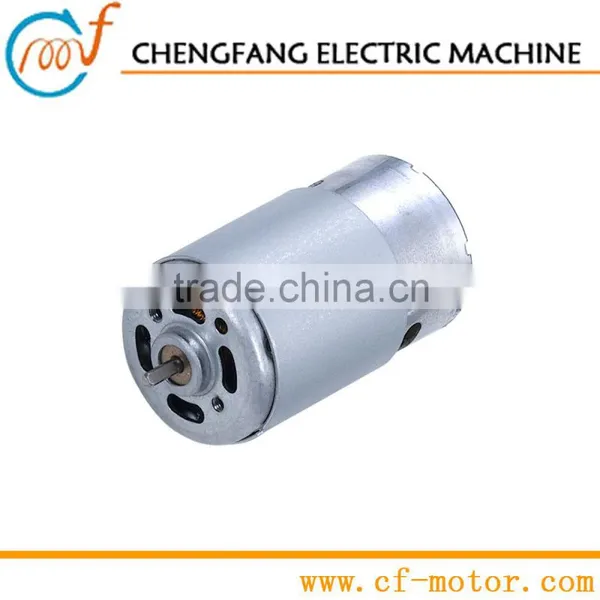

12V DC electric motor Robot motor
The models we list below are part of our existing designs. We offer specific motor design for every customer.
RS-545
| Model No. | RS-545SHV-2974R | |
| Rated voltage | 12VDC | |
| No Load | Speed(r/min) | 4600 |
| Current(A) | 0.15 | |
| At Max Efficiency | Speed(r/min) | 6620 |
| Current(A) | 1.99 | |
| Torque(mNm) | 23 | |
| Output(W) | 15.93 | |
| Eff.(%) | 66.6 | |
| At stall | Current(A) | 12.8 |
| Torque(mNm) | 170.6 | |
Basic Structure of Chengfang Motors |
Customized Options |
|
·2-pole stator
|
·Leadwires with connector / pins |
