Home > Electrical & Electronics > Electric Motor > DC Motor > Permanent Magnet dc Electric Motor for Toys With Variable Speed RS-365H

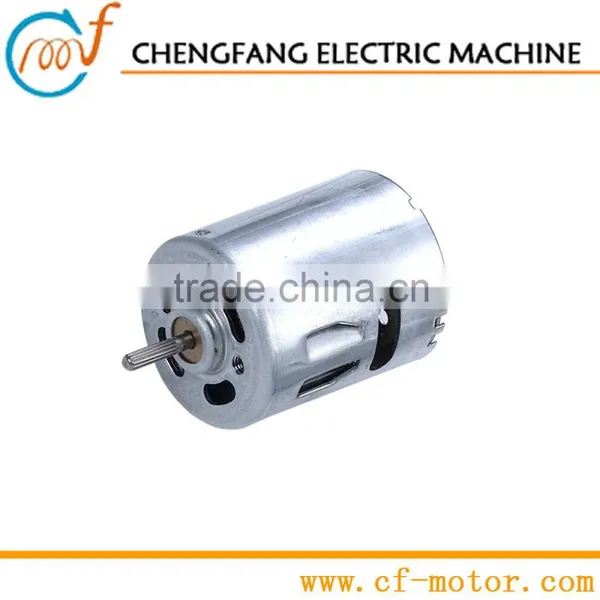

Permanent Magnet dc Electric Motor for Toys With Variable Speed RS-365H
Negotiable
MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF-Motor
Model Number:
RS-365SHV-13132
Payment & Shipping
Payment Methods:
Port of Shipment:
Shekou Yantian Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12v dc High Torque Electric Motor for Cordless Drill RS-550HNegotiableMOQ: 10000 Pieces -
High Torque 12v dc Motor RS-550HNegotiableMOQ: 10000 Pieces
-
High Torque 12v dc Electric Car Motor RS-550HNegotiableMOQ: 10000 Pieces
-
High Torque Low Rpm Electric Motor for Electric Curtain, Cordless Driver | RS-550HNegotiableMOQ: 10000 Pieces
-
36V Eletric DC Motor 30W Above 1200RPM | RS-565HNegotiableMOQ: 10000 Pieces
Place of Origin
Guangdong, China
Brand Name
CF-Motor
Model Number
RS-365SHV-13132
Usage
Home Appliance
Certification
CCC, CE, ROHS, Other, CCC, CE, ROHS, ISO/TS 16949:2009
Type
Micro Motor
Torque
TBD
Construction
Permanent Magnet
Commutation
Brush
Speed(RPM)
optional
Continuous Current(A)
optional
Output Power
TBD
Voltage(V)
optional
Efficiency
Other, 70%

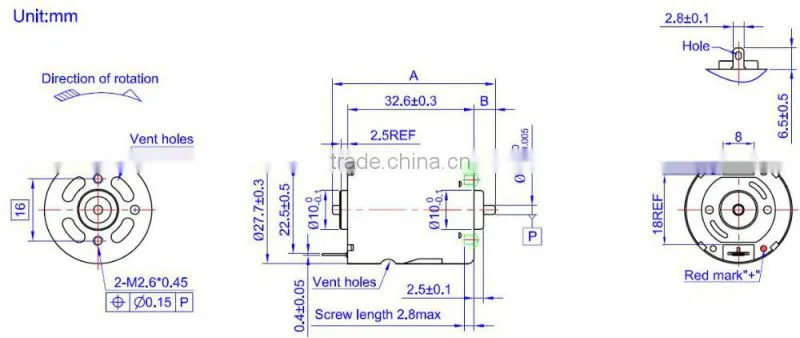

Detailed Dimension
* Size A and B could be customized.
| Model No. | Main Performance | |||||||||
| Rated Voltage | No Load | At Maximum Efficiency | At Stall | |||||||
| Speed | Current | Speed | Current | Torque | Output | Eff. | Current | Torque | ||
| RS-360SH-3562 | 6VDC | 15,500 | 0.67 | 12,810 | 3.19 | 8.85 | 11.87 | 62 | 15.2 | 51 |
| RS-360PH-3561R | 6VDC | 12,000 | 0.48 | 10,159 | 2.65 | 9.18 | 9.77 | 61.5 | 14.6 | 59.8 |
| RS-365SH-14142 | 24VDC | 13,500 | 0.12 | 10,943 | 0.51 | 7.1 | 8.09 | 65.6 | 2.2 | 37.3 |
| RS-365SHVC2J2-1893 | 9.6VDC | 8,000 | 0.19 | 6,296 | 0.7 | 5.85 | 3.86 | 57.2 | 2.6 | 27.5 |
* The above data is only for reference. You can offer your required datasheet, such as speed, current, torque and etc.
* EMI suppression is welcome.
* D-cut, spline, knurling could be customized at your request.
Certifications

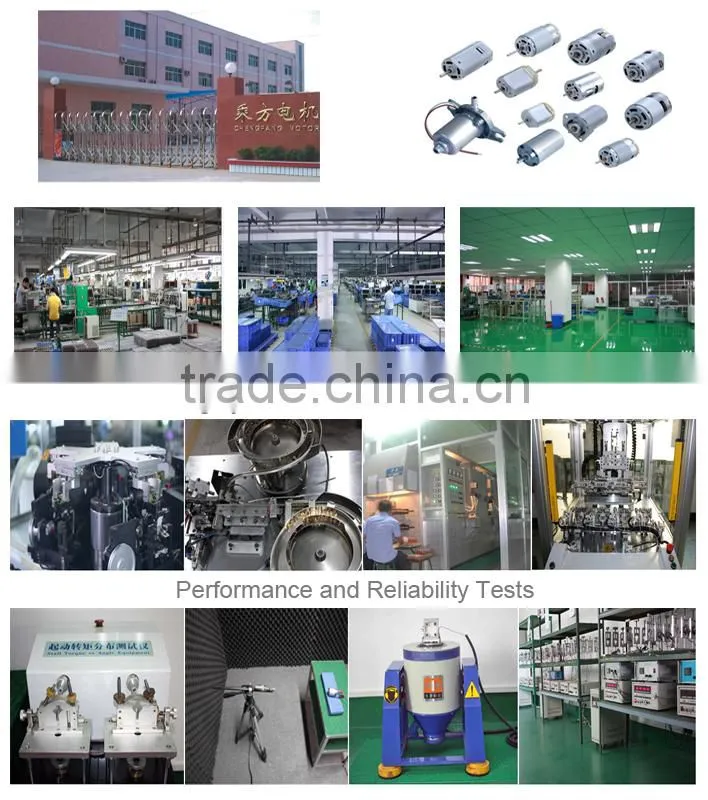

Facotry Show
