Home > Electrical & Electronics > Electric Motor > DC Motor > Diameter 28mm dc Gear Motor RS-360/RS-365 Motor

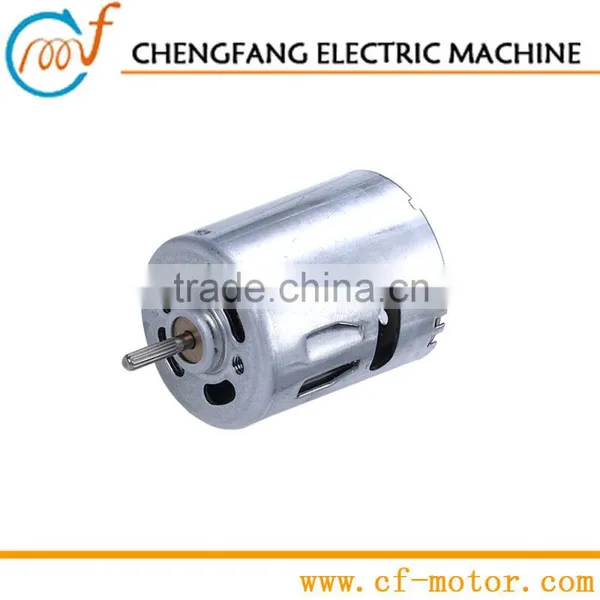

Diameter 28mm dc Gear Motor RS-360/RS-365 Motor

Name: Diameter 28mm dc Gear Motor RS-360/RS-365 Motor
Brand: CF Motor
SKU: 126941693

Diameter 28mm dc Gear Motor RS-360/RS-365 Motor thumbnail-1

Diameter 28mm dc Gear Motor RS-360/RS-365 Motor thumbnail-2

Diameter 28mm dc Gear Motor RS-360/RS-365 Motor photo-1

Diameter 28mm dc Gear Motor RS-360/RS-365 Motor photo-2

US$ 2.58 - 3.88 MOQ: 3000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CF Motor

Usage:

Boat, Car, Fan, Other, Boat, Car, Fan, power tool, electric model, fitness apparatus, automotive and etc.

Contact Supplier Request Quote Chat Now

Shenzhen Chengfang Electric Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CF Motor

Usage Boat, Car, Fan, Other, Boat, Car, Fan, power tool, electric model, fitness apparatus, automotive and etc.

Certification CCC, CE, ROHS, UL, Other, CCC, CE, ROHS, UL, ISO/TS 16949:2009, ISO/TS 16949:2009

Type Micro Motor

Torque High Torque

Construction Permanent Magnet

Commutation Brush

Protect Feature Other

Speed(RPM) Variable Speed

Continuous Current(A) TBD

Output Power TBD

Voltage(V) 1.2-60v

Efficiency Other, 69.2%

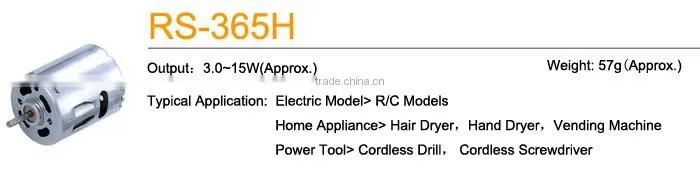

Diameter 28mm dc gear motor RS-360/RS-365 motor

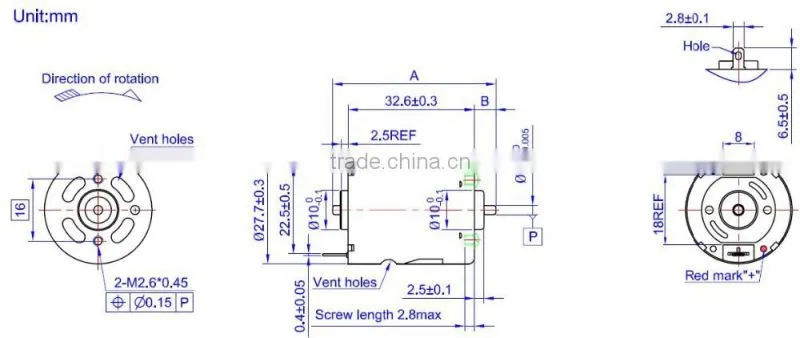

Detailed Dimension

* Please provide your date about dimension A and B. We offer customization about spline, step shaft, knurling, d-cut and etc.

Model	Nominal Voltage	No Load		At maximum efficiency					At stall
	Nominal Voltage	Speed	Current	Speed	Current	Torque	Output	Eff	Current	Torque
	VDC	r/min	A	r/min	A	mNm	W	%	A	mNm
RS-365SH-09318B	13.8	3,005	0.04	2,201	0.10	2.50	0.59	41.90	0.28	9.51
RS-365PHV-10260U	24	6,280	0.06	4,849	0.20	4.80	2.44	49.80	0.69	21.09
RS-365PHV-15115U	12	7,246	0.13	5,743	0.50	5.40	3.24	54.30	1.90	26.01
RS-365PHV-17112	12	7,500	0.12	7	0.52	5.82	3.71	59.50	2.25	31.00
RS-365SH-13168B	18	8,030	0.09	6,378	0.35	5.18	3.46	55.10	1.35	25.17

* Performance data could be customized.

* See more models below.

Model	Dimensions	Output	Typical Applications
RS-360H/365H	φ28X32.5LXshaft OD2.3mm	2-40W	Cordless Drill, Cordless ScrewdriverToy Gun
RS-380A/385A	φ28X38.2LXshaft OD2.3mm	2-40W	Cordless Drill, Cordless Screwdriver
FS-380A/385A	φ28.5X40LX25ThkXshaft OD2.3mm	2.0-4.5W	Electric Scissors
RS-380H/385H	φ28X37.8LXshaft OD2.3mm	2.0-40W	Cordless Drill, Cordless Screwdriver
RS-550A/555A	φ36X57LXshaft OD3.175mm	5.0-80W	Cordless Screwdriver, Cordless Gardening Tool
RS-550H/555H	φ36X57LXshaft OD3.175mm	5-80W	Cordless Screwdriver, Cordless Drill
RS-560H/565H	φ36X60LXshaft OD3.175mm	5-80W	Cordless Screwdriver, Cordless Drill
RS-590H/595H	φ36X67LXshaft OD3.175mm	8-130W	Screwdriver, Cordless Drill
RS-770H/775H	φ41.8X66LXshaft OD5.0mm	8-100W	Cordless Drill, Gardening Tool, Circular Saw
RS-790H/795H	φ41.8X75LXshaft OD5.0mm	20-200W	Cordless Drill, Circular Saw
RS-987H	φ52X69LXshaft OD6.35mm	5-200W	Cordless Drill, Gardening Tool, Circular Saw
RS-997H	φ52X85LXshaft OD6.35mm	15-130W	Gardening tool, Circular Saw, Cordless Drill

* Please click the model to check motor dimension and performance in details.

Certifications

Factory Introduction

Shenzhen Chengfang Electric Machine is the professional PMDC motor manufacturer.The company was established in 2003. It occupies an area of 15,000 M²with 500 employees.

Products range from Low Voltage DC motor to High Voltage DC motor with diameter of 20mm to 61mm. Input voltage ranges from 1.2VDC to 240VAC. The major applications of the motors are: automotive, home appliance, power tool, office automation, fitness apparatus and electric model.
