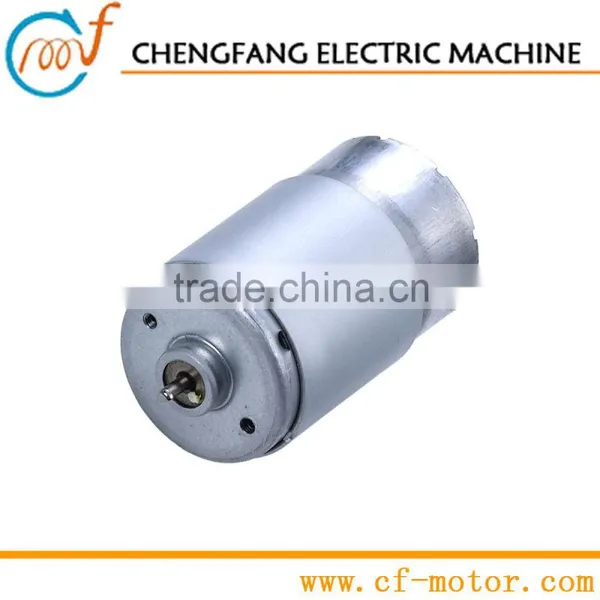

Automobile Small dc Motor,EPB,RS-560H

Name: Automobile Small dc Motor,EPB,RS-560H
Brand: CF Motor, Chengfang
SKU: 126941921

Automobile Small dc Motor,EPB,RS-560H thumbnail-1

Automobile Small dc Motor,EPB,RS-560H photo-1

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CF Motor, Chengfang

Model Number:

RS-560SH-6527, RS-560H-6527

Contact Supplier Request Quote Chat Now

Shenzhen Chengfang Electric Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CF Motor, Chengfang

Model Number RS-560SH-6527, RS-560H-6527

Specifications

Used for EPB
Dia*L:35.8*60.0
Weight:230g Approx
Application: Automotive product,EPB

The models we list below are part of our existing designs. We offer specific motor design for every customer.

RS-560H

Model No.	RS-560SHVC2-6527RL
Rated voltage	12VDC
No Load	Speed(RPM)	16500
No Load	Current(A)	1.18
At Max Efficiency	Speed(RPM)	14661
	Current(A)	9.41
	Torque(mNm)	55.2
	Output(W)	84.74
	Eff.(%)	75.1
At stall	Torque(mNm)	75
At stall	Current(A)	495.2

Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz

Electric model motor

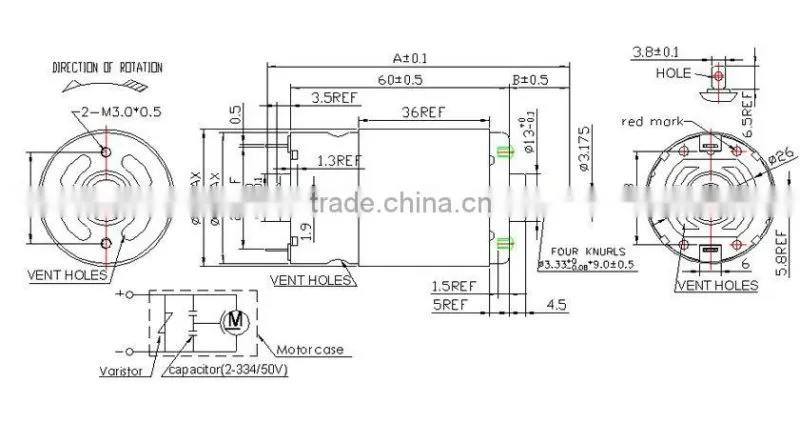

Dimension: φ 37.0 x 60 L. shaft O.D. 3.175 mm
Basic Structure: SECD housing / SECC end cap
Application: Vacuum cleaner / Air pump / Power tool / Electrical Model
Weight: Approx. 230g

Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire

·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets
