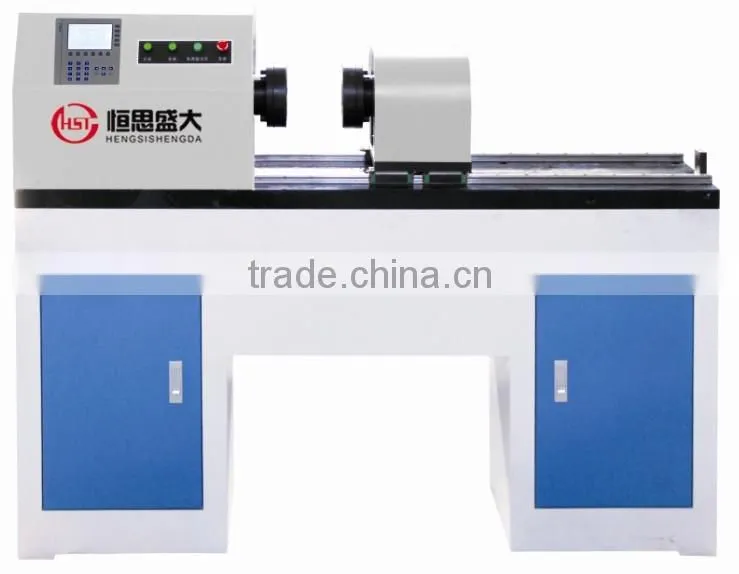

NDS- 2000 2000n/M CE Certified Material Torque Tester Price
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
Application:
Digital display material torsion testing machine is designed for conducting torsion and twist tests on various metal wires, tubes and steel materials. Torque measurement is by torque transducer while angle of twist is measured by photoelectrical coder. Torque range can be adjusted and torque is applied to specimen by servo motor and cycloid speed reducer.
This tester is mainly applied in the research department, all kinds of institutions and industrial and mining enterprises material experiment of various materials used for measuring the mechanical properties by torsion.
Technical parameter:
Model |
NDS- 500 |
NDS-1000 |
NDS- 2000 |
NDS- 3000 |
NDS- 5000 |
Max dynamic test torque N/M |
500 |
1000 |
2000 |
3000 |
5000 |
Test level |
1 Class |
||||
Test range |
2%-100%FS |
||||
Torque force value relative error |
≤±1% |
||||
Torque speed relative error |
≤±1% |
||||
Force resolution |
1/50000 |
||||
Torque Angle measuring relative errors |
≤±1% |
||||
Torque angle resolution(°) |
0.05-999.9°/min |
||||
two chuck maximum distance |
300mm 550mm 600mm 650 mm |
||||
Dimension |
1200*390*1169 1420*390*1169 1470*390*1200 1924*690*1512 |
||||
Weight |
340 580 860 2150 |
||||
Power supply |
0.5kW/AC220V±10%1kW/AC220V±10%1.5kW/AC220V±10%5kW/AC220V±10% |
||||
NDS Material Torsion EZ Wire Torsion TNZ Spring Torsion
1.Shipping & delivery: It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
2. Machine' Packaging: Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
♥ More information welcome to contact us now!
And welcome to our company! We display more new design in our showroom.
♥ Main web site: : http://www.
