Factory EZ-20 10-20mm Metal Elecric Wire Torsion Measuring Equipment
- 300 Set / Sets per Month
- Qingdao China
- T/T Credit Card
Product Details
| Place of Origin: | Shandong, China | Brand Name: | hensgrand | Model Number: | EZ-10 |
| Power: | Electronic | Usage: | Torsion Tester |
Product Description

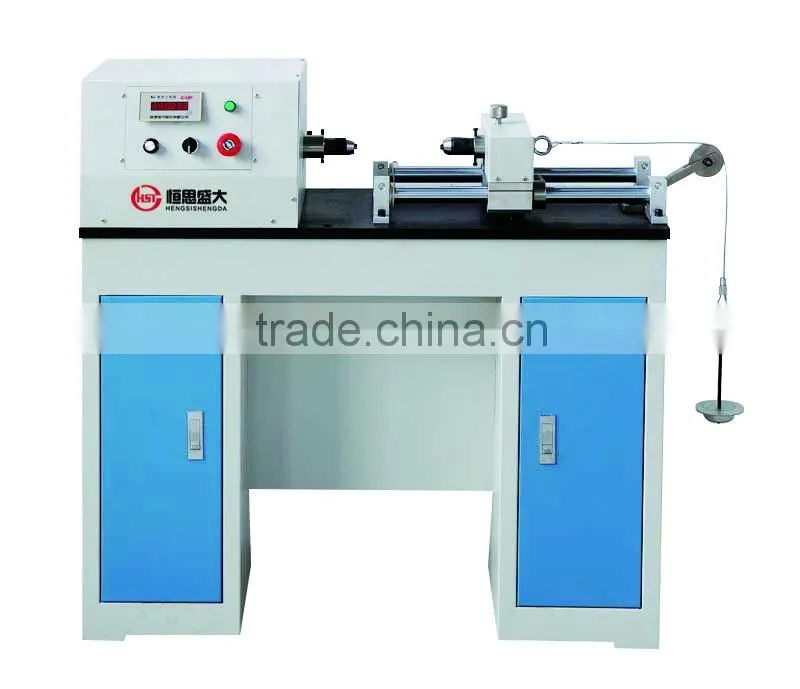

EZ -20 10-20MM Metal Elecric Wire Torsion Tester
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
Application:
Wire torsion testing machine applies to determine the ability of diameter(or feature size) of 0.1-20.0 mm wire for bearing plastic deformation in one way or two way torsion test, display the surface and internal defects of the wire. Provide reliable data for production of wire and wire rod company. Widely used in aerospace, metal material processing, tire manufacturing industries, and institutions of higher learning, scientific research institutions, technical supervision, quality inspection departments and so on.
Standard:
GB/T2611-2007 General requirements for testing machines
GB/T 239-1999 Metal wire twisting test method
ISO 7800:1984 Metal wire one-way torsion test method
ISO 9649:1990 Metal wire two-way torsion test method
Features:
1) One-way torsion :Sample around its own axis in one direction evenly rotate 360 ° as a torsion, until to the stipulate times or sample breakage.
2) Twoway torsion:Sample around its own axis in one direction evenly rotate 360 ° as a torsion, until after to the stipulate times,then rotate same times in opposite direction or sample breakage.
3) Number setting:Automatic stop when reach the presetting torsion number;
4) Rotation speed adjustable:Adopting adjustable- speed motor knob switch,
5) Display mode:Digital real time display
Technical parameter:
Model | EZ-3 | EZ-10 | EZ-20 | EZ-30 |
Working method | Automatic loading | |||
Max Clamp metal wire diameter(mm) | 0.2-3 | 2-10 | 10-20 | 10-30 |
Parallelism degree of mobile guide rail within the total length scope | ≤0.2 | |||
Max distance between two columns | 320 | 520 | 600 | 600 |
Rotation speed adjusting range (r/min) | 0-180 | 0-60 | 15-20 | |
Speed error | <±1% | |||
Minimum reading value of circle | 0.1 | |||
Two chucks comicality | < 0.4 | |||
Jaw hardness ( HRC ) | HRC55-65 | |||
Weight error | ±0.5% | |||
Working Noise (dB) | ≤70 | |||
Power supply | AC220V±10% ,50HZ | |||

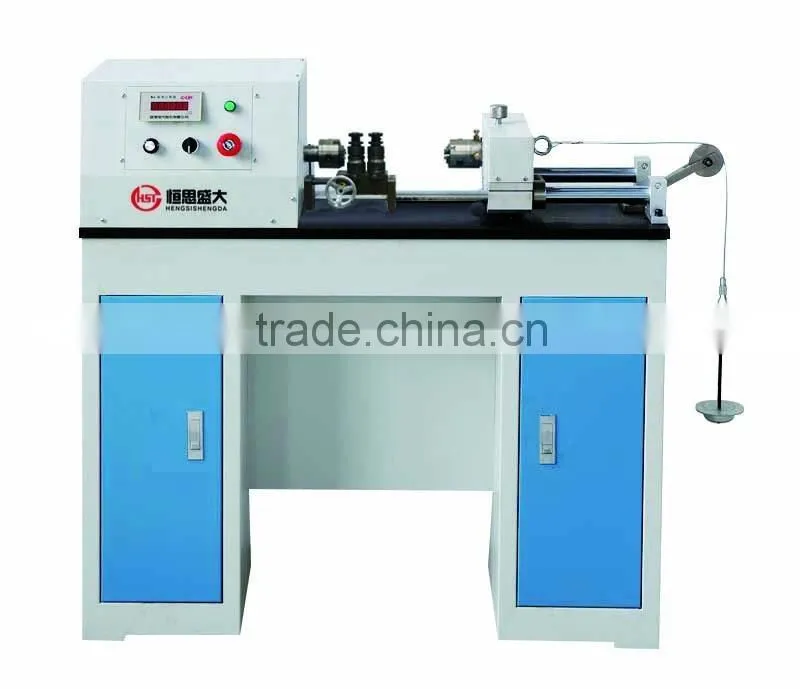

Metal Wire Torsion Testing Machine

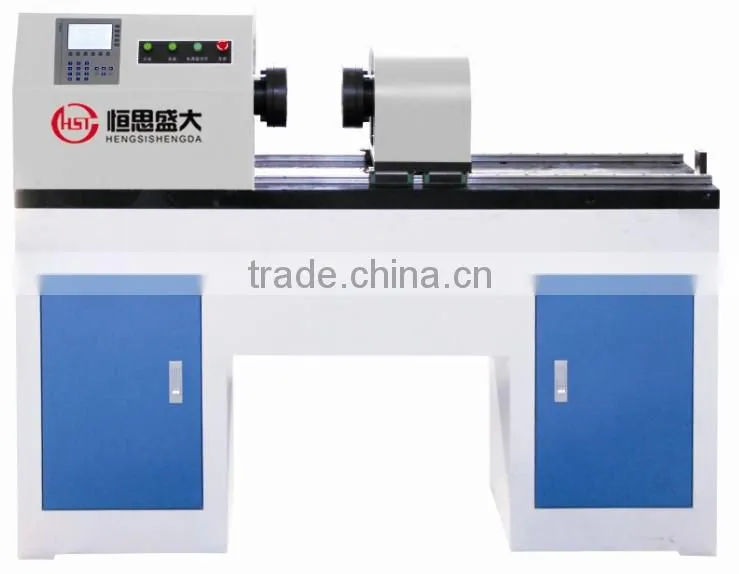

NDS Material Torsion EZ Wire Torsion TNZ Spring Torsion
1.Shipping & delivery: It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
2. Machine' Packaging: Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
♥ More information welcome to contact us now!
And welcome to our company! We display more new design in our showroom.
♥ Main web site: : http://www.
Tel: 86 531-58618759| Fax: 86 531 86113759
