Specifications
1. High production yield2. low price
3. easy operation
4. reasonable outlook
5. saving water and engery

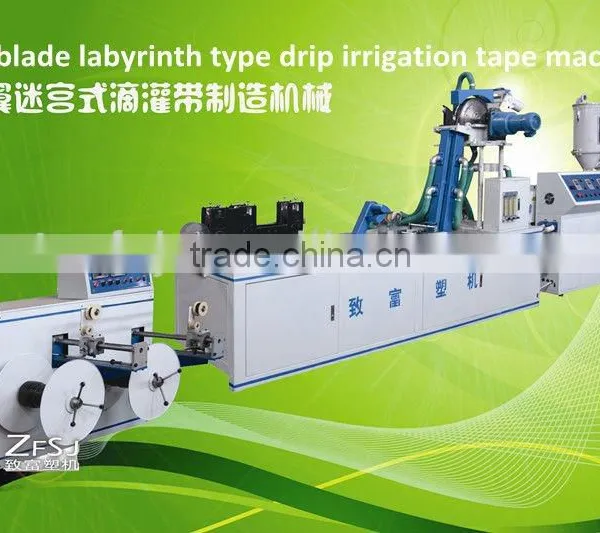

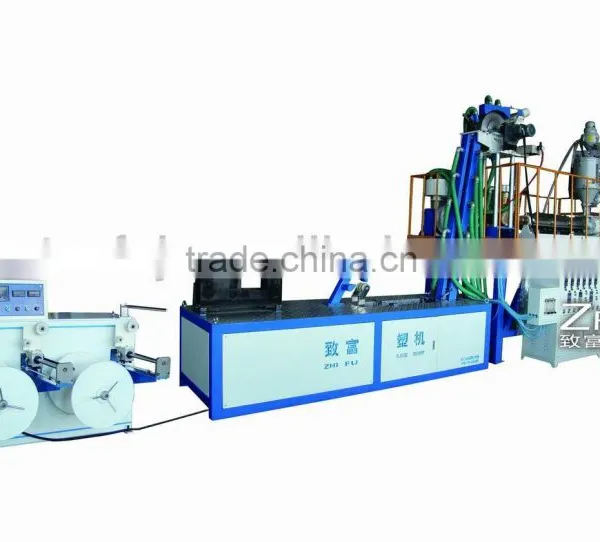

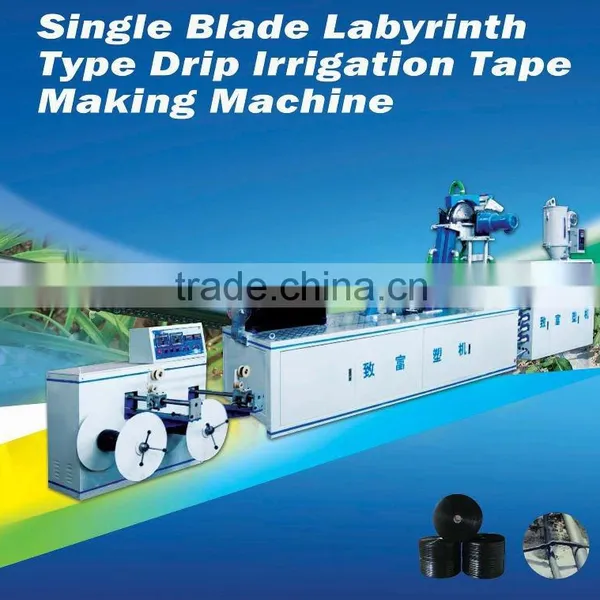

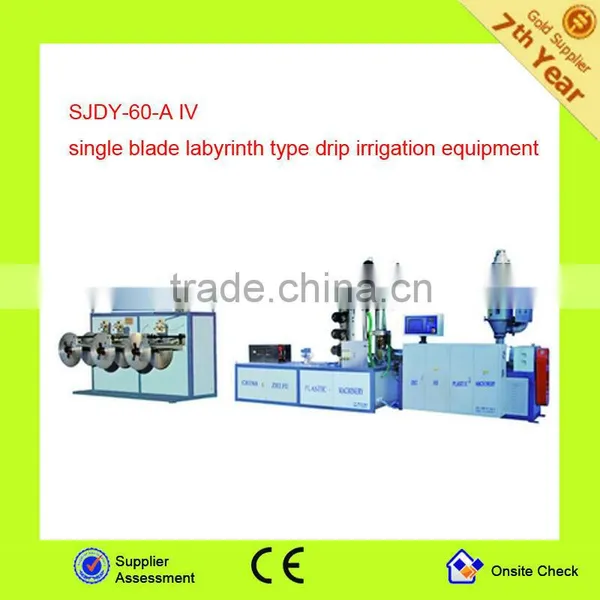

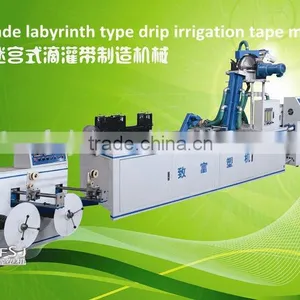

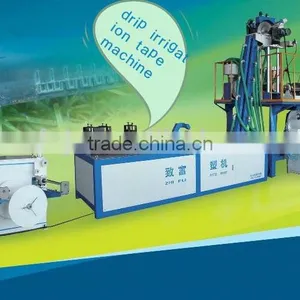

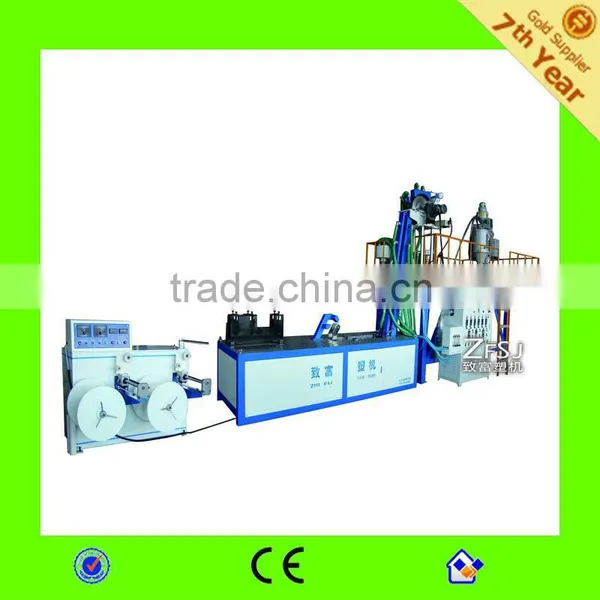

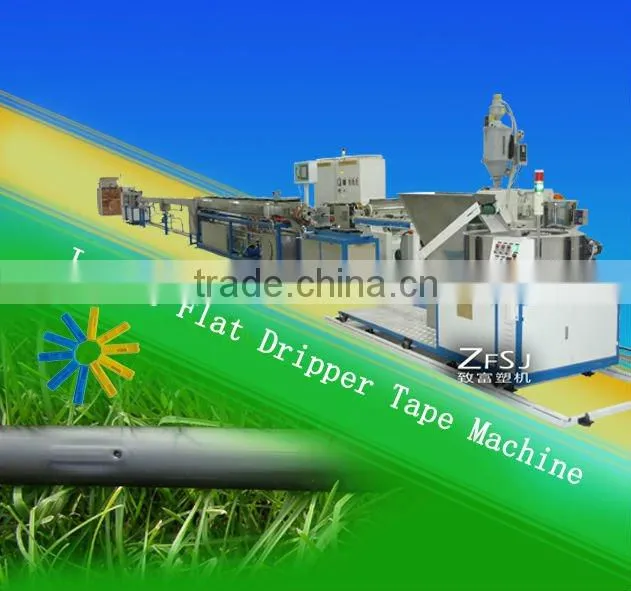

single blade labyrinth type drip irrigation tape making machine.
Brief introduction of this machine
Single blade labyrinth type drip irrigation tape making machine is a-new type production facility for plastic irrigation tape. Its product is applied in cropland and gardens. It saves water and energy, thus improves output and profits.
Characteristics of the machine:
The diameter of tape is controlled by diameter gauge which is explored and invented by ourselves so that the measurement and control of diameter of tape is accurate, steady and reliable.
The main machine motor, shaping part and tractor all adopt frequency conversion control system and they have characteristics of easy adjustment, reliable performance, stable work condition and low energy consumption.
The barrel and screw of extruder adopt alloy materials after processing of hardening and tempering and ionitriding, which has features of high-hardness, high wear-resistance and long service life. Screw of extruder adopts special design which makes raw materials plasticized well and the line works steadily.
The heating temperature of extruder and mold die head adopts automatic-control-temperature. The accuracy of controlling the temperature is high and it also economizes the energy obviously.
The drip irrigation tape is curled by moment electrical machinery. The drip irrigation tape can overcome the tension emerged effectively. The machine still has the equipment to calculate the length of the drip irrigation tape. The rolling length can be settled casually below 2500m (if meter prolonging is required, it can be ordered) the rolling machine has the functions of memory and automatic alarming etc.
The whole machine is designed moderately, reasonably, beautifully and its automation degree is high.
Main technical parameter
|
Item
|
Model
|
Diameter
|
Speed
|
Max. Extruding Capacity |
Filter changing way |
Installation power |
Overall dimension (L*W*H) |
Weight |
|
Technical Parameter |
SJDYG-60 |
φ12-φ20 MM |
65-70 m/min |
55 kg/h |
Durable filter (patent) |
44kw |
13.3*3.1*3.3 M |
2200kg |
The application range of the single blade labyrinth drip irrigation tape:
The drip irrigation tape can be widely used in water saving and irrigation of agricultural field (cotton, grapery, peanut and wheat etc.), greenhouse, gardens etc. and mountain and hill region.
drip irrigation tape
Introduction of this tape
Properties of drip irrigation tape: The single blade labyrinth type drip irrigation tape water saving equipment has the turbulent flow state and the pressure compensation function. Its labyrinth flow path is shaped by one time through vacuum hot pressure. Accuracy of its manufacture is high. It has many water entrances which can prevent tape from clogging. Water-dripping volume is even and consistence.
Others drip irrigation machine that we can provide:
melt flow type drip irrigation tape making machine
mosaic flat emitter type drip irrigation tape making machine

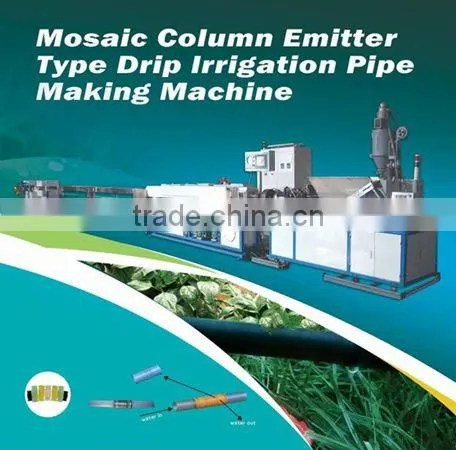

mosaic column emitter type drip irrigation pipe making machine
WE can also provide above kinds of drip irrigaiton tape.
