labyrinth drip irrigation hose machine
Features of the Machine
****The total length of the machine is 12m. So the workshop should be enough to hold the machine.
****There should no risk area. Working electric power can made on customer demand.
***The raw material used for producing the tape is the mixture of HDPE, LDPE and LLDPE.
***Different from the flat dripper type drip irrigation tape making machine, the outlet is one-time shaping by the shaping wheel during production.
***One whole set machine is equipped with one shaping mold. And the machine can produce with different diameter (12mm, 16mm, 20mm), same dripping distance drip tape.
*** If want to produce different dripping distance drip tape or flow rate, then just install another shaping mold on the machine. This is to say, one machine can produce different size drip tape with different shaping mold.

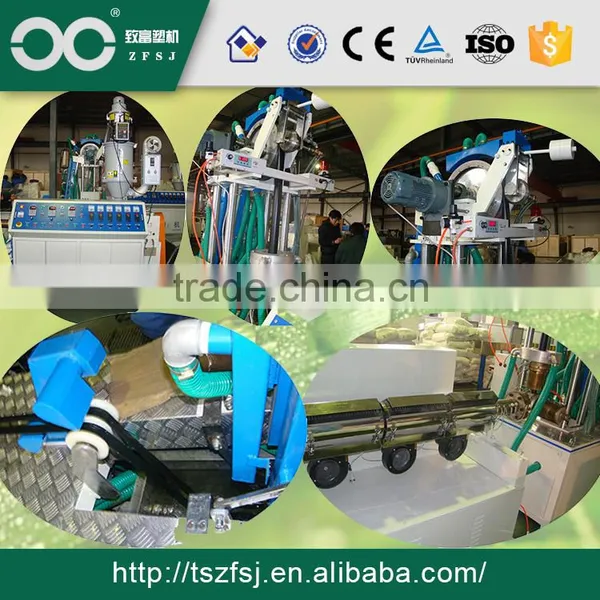

1. The raw material first go through the automatic material feeder & drying system. The temperature can be set depends on the specific circumstances.
2. Single screw bolt extruder adopts frequency conversion control, it works more stable and saves energy consumption. The heating system of extruder of the extruder and extrusion mold adopt temperature control module.
3. The diameter of tape is controlled by automatic diameter gauge. If there is some default, it will alarming automatic.

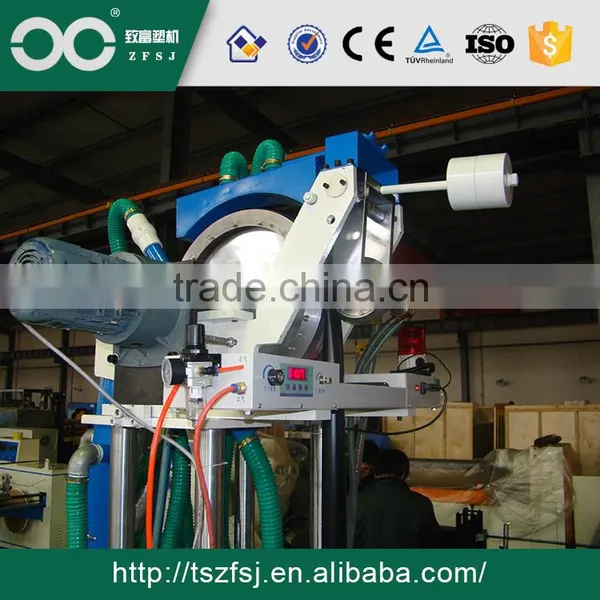

4. The extruded tape shaped through the shaping wheel. It is our patent labyrinth design of the shaping wheel. The labyrinth flow passage is much wider, and the water flow rate is stable and the multi water entrance can prevent the tape from clogging greatly.

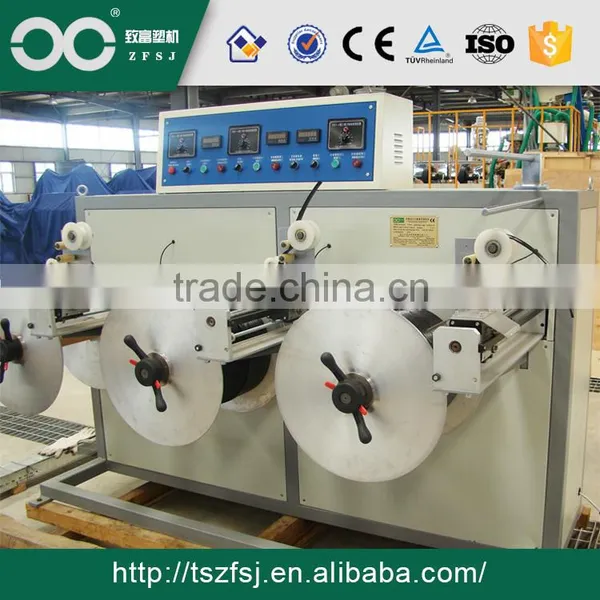

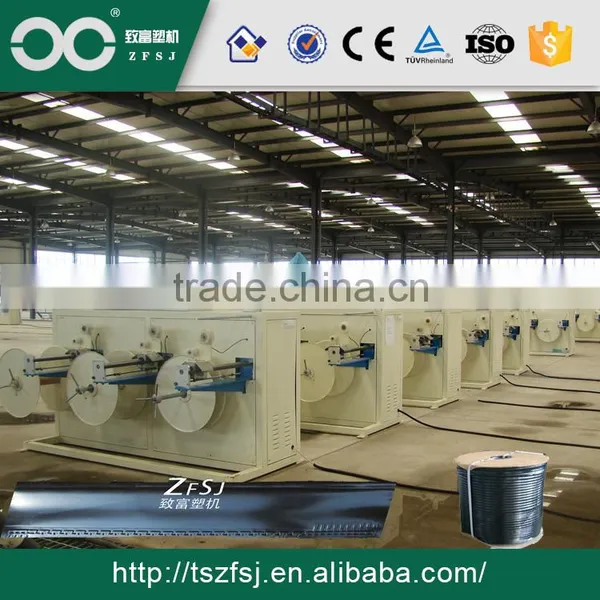

5. Double-station winder/ three station winder coiler adopts moment electric machinery. When coiling the tape, it can overcome the tension emerged effectively. Also the winder is equipped with meter-counting device, when reaches setted meter, it will alarming and then the roll.
Main technical parameterParameter of the Machine
No. |
Item |
Parameters |
1 |
Model |
SJDY-60-AIV |
2 |
Specification |
φ12~φ20 mm |
3 |
Production speed |
70m/min |
4 |
Main driving power |
18.5 kW |
5 |
Max. extruding capacity |
60 kg/h |
6 |
Heating power |
22 kW |
7 |
Filter changing method |
Durable filter(patent) |
8 |
Driving power of shaping wheel |
0.75 kW |
9 |
Driving power of tractor |
1.1 kW |
10 |
Winding motor |
Torque motor 6 N.m×3 |
11 |
Water consumption |
1 m3/h |
12 |
Air consumption |
0.3 m3/h |
13 |
Installation power |
52kw |
14 |
Overall dimension(L×W×H) |
13 m×1.5 m×2.7 m |
15 |
Weight |
2200 kg |

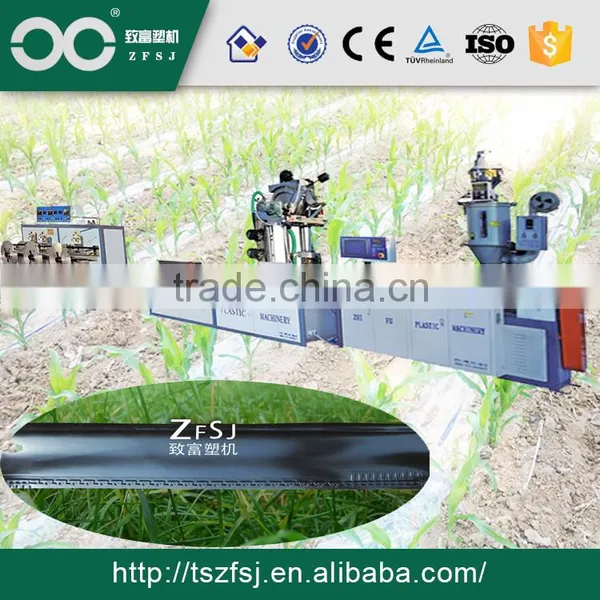

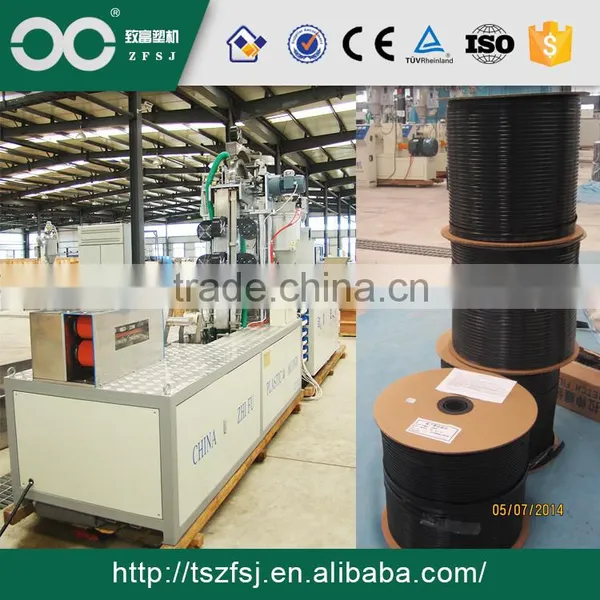

Three Drip Irrigation Tape Produced By The Machine
Tape Diameter :12mm 16mm 20mm
Tape Thickness:0.18-0.22mm
Flow rate :1-5L/H
Distance :100mm 200mm 300mm......
Simple package of the tape :
standard is 2000meter/roll . However we can also make it under customer's demands .
The material of the tape is PE !

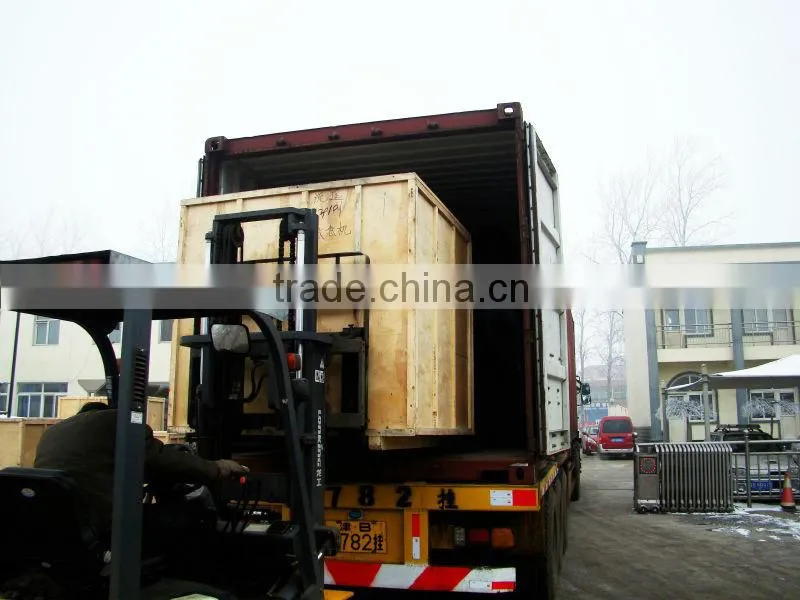

The machine is packaged in strong seaworthy wooden cases.
Delivery port :Tianjin ,Xingang port . By sea .

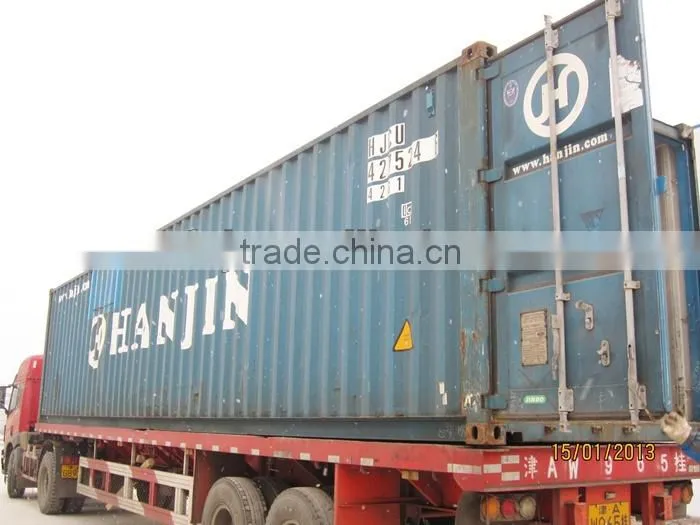

One 20F Container is needed !
We have our professional sales team that helping you find the best product you need.
Fast responce, professional information, comprehensive after-sales services
Engineer available for overseas machine installation and technical support.
Our company light spot
**We have been in making drip irrigation machine for nearly two decades.Our technology and experience
are quite mature.
**The water flow rate uniformity of our company shaping wheel is in world leading level.
The company has import-export authority independently and passes the Certificate of ISO9001 Quality System and European Union CE Certificate.
Our company which has more than fifteen years of history for making drip irrigation equipment in China and even the biggest drip irrigation machine manufacturer and sale enterprise even in the world.
The superior quality, favorable price and perfect after-sales service make the products be well received at home and abroad.
The management principle of our company is sincere cooperation and deep friendship, and our service aim is Quality First and Credit First and Customer First to meet the customer’s demand and expectation.
We are devoted to the improvement of the product quality and service and try our best to provide the best quality product to friends from all over the world.
