Specifications
1.usage:tensile,compression,deformation test2.high testing accuracy
3.single-column structure
4.esay operation

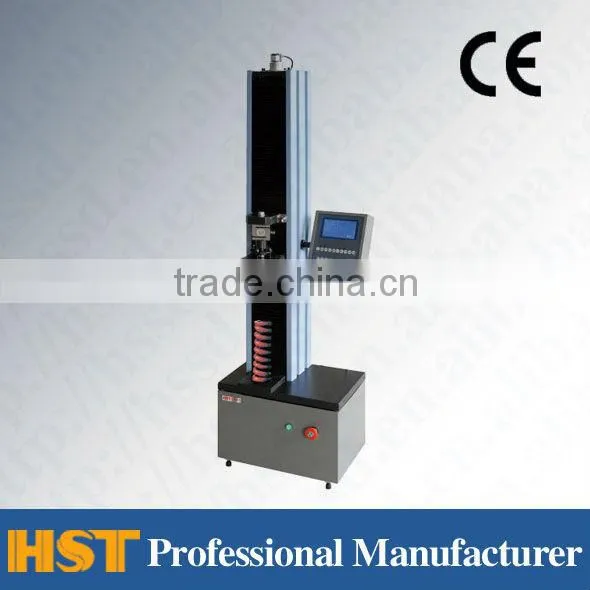

TLS-S spring tensile tester
Application:
This machine is made based on the national spring tensile and compression tester standards of technical requirement, professional design of automatic control and data acquisition system, realized the data acquisition and control process full digital adjustment. Mainly used to tension spring,compression spring, saucer reed,tower spring,leaf spring,clip spring,flat spring,composite spring,gas spring,mould spring,deformed spring and other precision spring tensile,compression,displacement and rigidity test and analysis.
Main specification:
Model |
TLS-S100 |
TLS-S200 |
TLS-S500 |
TLS-S1000 |
TLS-S2000 |
|||
Max testing force |
100 N |
200 N |
500 N |
1000 N |
2000 N |
|||
Tester level |
1 class(0.5 class optional) |
|||||||
Testing range |
2%-100%FS |
|||||||
Min. resolution of displacement |
0.01mm |
|||||||
|
Tensile test distance between two pressure plate |
750mm |
|||||||
|
Compression test distance between two pressure plate |
700mm |
|||||||
Pressure plate dia |
Ø100mm |
Ø100mm |
Ø100mm |
Ø100mm |
Ø100mm |
|||
Speed |
0.05mm/min~500mm/min(Arbitrary set ) |
|||||||
Accuracy |
±1% |
|||||||
Deformation indicate error |
≤±(50+0.15L) |
|||||||
Power supply |
220V/50Hz |
|||||||
Main Features:
1.Load display mode: Digital display, with indication functions at upper & lower limit;
2.Displacement display mode: Staff gauge & vernier indication, with micro-adjusting function;
3.Loading mode: Manual loading, quick and convenient, displacement control through positioning devices
4.Overload protection: Digital cell glittering in case of over test load. (auto stop in case of mechanically overload)
