Home > Instruments & Meters > Test Instrument > Test Machine > 50N Automatic Spring Tension and Compression Testing Machine

50N Automatic Spring Tension and Compression Testing Machine

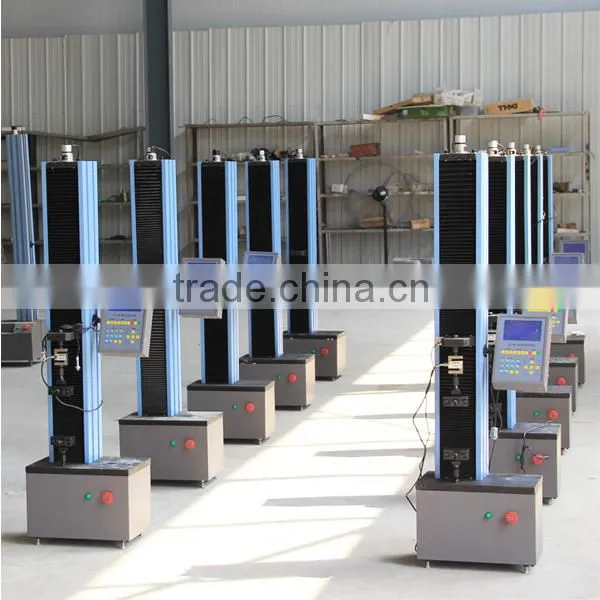

50N Automatic Spring Tension and Compression Testing Machine photo-1

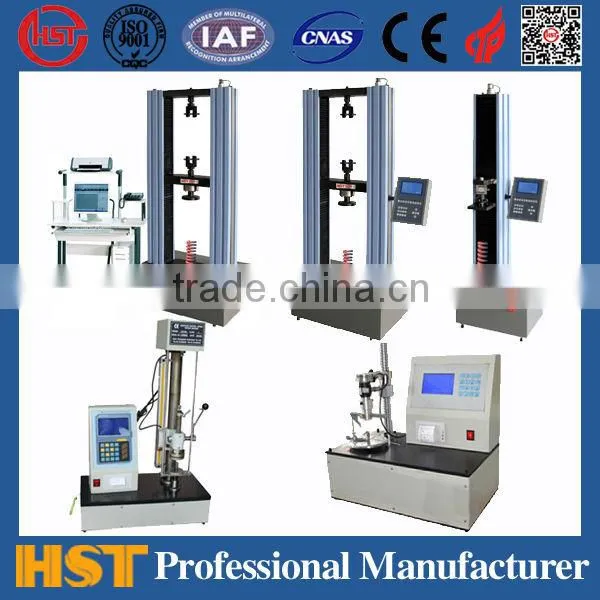

50N Automatic Spring Tension and Compression Testing Machine photo-2

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

HST

Model Number:

TLS

Contact Supplier Request Quote Chat Now

Jinan Hensgrand Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name HST

Model Number TLS

Power Electronic

Usage Universal Testing Machine

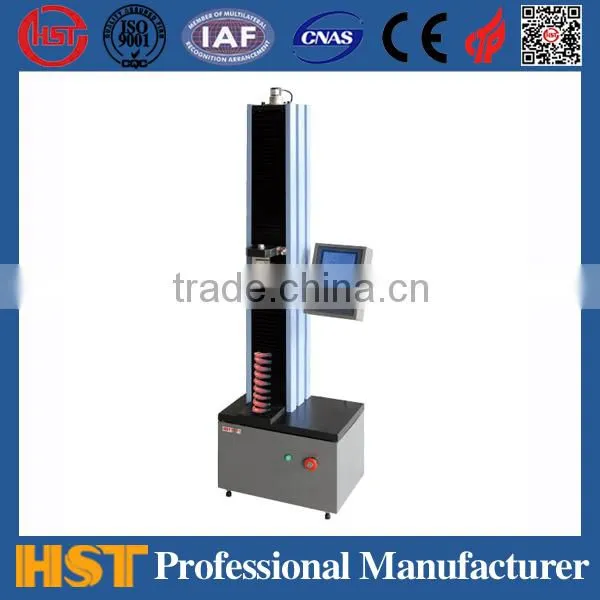

50N Automatic Spring Tension and Compression Testing Machine

Product Description

Application

This series testing machine is mainly used for tension spring, compression spring, saucer reed, tower spring, leaf spring, clip spring, flat spring, cpmposite spring,gas spring, mould spring, deformed spring and other precision spring tensile, compression, displacement and rigidity test and analysis.

Standards

GB/T, ASTM, DIN, JIS and other international standards

Main Technical Parameters

Model	TLS-005	TLS-01	TLS-02	TLS-05	TLS-1	TLS-2	TLS-3	TLS-5
Max.Load(N)	50	100	200	500	1000	2000	3000	5000
Structure	Single Colum Type Double space models ( lower is tensile,upper is compression)
Control Method	Microcomputer control
Load Accuracy	1 class
Load Range(F·S)	2%~100%F·S
Test force relative error value	≤±1%%
Displacement relative error value	≤±1%
Displacement display resolution	0.01mm
Deformation indication error	≤±(50+0.15L)um
Speed adjustment range	0.05-500mm/min (stepless speed)
Speed relative error	≤±1%
Tensile test space	Standard 600mm Heightening 850mm
Compression test space	Standard 600mm Heightening 850mm
Platen diameter	110mm
Upper and lower pressure plate parallelism	≤0.05mm
Power Supply	AC220V±10%,50Hz
Dimension	550×400×1600mm
Weight	100kg

Fixture

Function

1. Automatic calibration, automatic calibration: The system can automatically calibrate the value of accuracy

2. Automatic shutdown: After the destruction of the sample, moving beams automatically stop moving

3. Automatic screen: Spring force values can be displayed with the height, strength and deformation of two kinds of changes in the value curve, ease of analysis

4. Point or multi-point test: Can be preset standard value, upper and lower deviation, automatically determine eligibility spring

5. Measurements can be segmented, and calculate the stiffness K and the average stiffness of each segment

6. Auto return: After the test is completed testing machine automatically returns to the test beam movement initial position

7. Breaking judge: After specimen fracture, moving beams automatically stop moving

8. Limit protection: Has the level limit protection function of mechanical and SPC

9. Overload: When more than 3 ~ 5% of the rated load device automatically stop working

The main configuration

1 Single Colum Type High strength double space main unit-----1set

1.1 High precision arc synchronous deceleration system-----1suit

1.2 TaiWan ABBA High precision ball screw-----1set

1.3 Tester dedicated tensile fixture-----1set

1.4 Tester dedicated compression fixture-----1set
