Home > Products > NDT Testing Instrument > HST650 Portable Digital Ultrasonic Flaw Detector/metal flaw detector

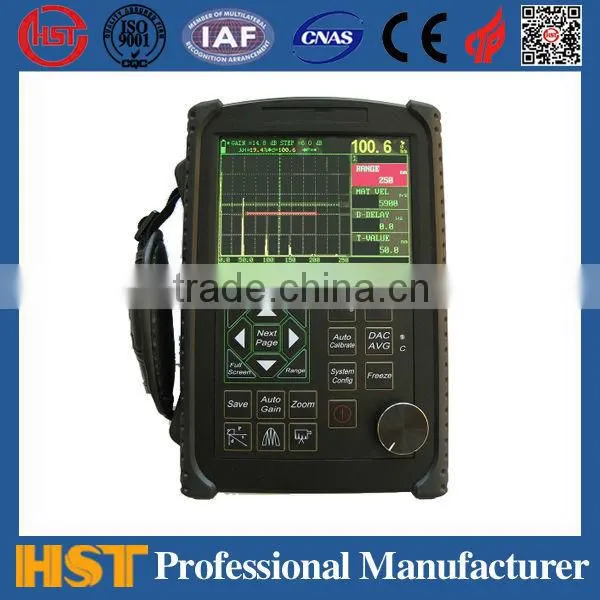

HST650 Portable Digital Ultrasonic Flaw Detector/metal flaw detector
- 300 Set / Sets per Month
- Qingdao
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | Hensgrand | Model Number: | HST650 |
Power: | Electronic | Usage: | Other, ultrasonic flaw detector |
Product Description
Specifications
Ultrasonic Flaw Detector1. Automated calibration, Automated gain
2. High-speed capture and very low noise
HST650 Ultrasonic Flaw Detector
Automated calibration, Automated gain
DAC, AVG, TCG, B scan, AWS
High-speed capture and very low noise
Solid metal housing
high contrast viewing of the waveform from bright
Powerful pc software and reports can be export to excel
Features
1. Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB);
2. Automated switch three staff gauge ((Depth d, level p, distance s);
3. Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity;
4. Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated
5. 6dB DAC functions;
6. Standards of test for DAC is saved.
7. 500 independence setup, any criterion can be input freely, we can work in the scene without test block;
8. Big memory of 1000 A graph
9. Automated gain and gain scan;
10. Peak Hold and Peak Memory;
11. B scan;
12. AWS D1.1
13. Automated make video of test process and play; use upan, the length of video is unlimited.
14. Powerful pc software and reports can be export to excel;
15. Li battery, continue working time up to 10 hours;
16.The embedded software can be online updated;
Other assistant function
Display freeze;
Automated echo degree;
Angles and K-value;
Lock and unlock function of system parameters;
Electronic clock calendar ;
Two gates setting and alarm indication;
Gate and DAC alarm;
Specifications
Title | Parameter | Title | Parameter |
Measuring Range(mm) | 0~10000 | Measurement Mode | Single, Dual, Thru |
Vertical Linearity Error | ≤3% | Reject | 0~80% |
Horizontal Linearity Error | ≤0.1% | Pulse Displacement(μs) | -20 ~ +3400 |
Sensitivity Leavings | ≥62dB | Zero(μs) | 0.0 ~ 99.99 |
Dynamic range | ≥34dB | Port Type | BNC(Q9) |
Resolving Power | ≥36dB | Operating Temperature (°C) | -20~50 |
Frequency Range(MHz) | 0.5~20 | H×W×D(mm) | 240×156×50 |
Gain(dB) | 0 ~ 120 | Weight(kg) | 1.0 (with battery) |
Material Velocity(m/s) | 1000 ~ 15000 |
CE certificate:
