NDT Equipment HST800 Digital Portable Automatic Ultrasonic Flaw Detector / Ultrasonic Test Equipment

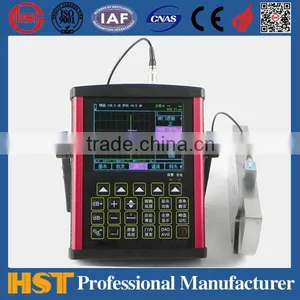

NDT Equipment HST800 Digital Portable Automatic Ultrasonic Flaw Detector / Ultrasonic Test Equipment thumbnail-1
NDT Equipment HST800 Digital Portable Automatic Ultrasonic Flaw Detector / Ultrasonic Test Equipment photo-1
US$ 500 - 3,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hensgrand
Model Number:
HST800
Contact Supplier Request Quote Chat Now
Jinan Hensgrand Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Hensgrand
Model Number HST800
Power Electronic
Usage Other, ultrasonic flaw detector

Specifications

Ultrasonic Flaw Detector
1. automatic calibration
2. 100 independent detection channels
3. Echo frequency analysis

HST800 Digital Portable Automatic Ultrasonic Flaw Detector / Ultrasonic Test Equipment





Product Description

Key Feature :

 1. The two hole test method: automatic calibration value K, frontier, zero, material velocity;

 2. 100 independent detection channels, free storage, playback 300 A sweep waveform and data (can be expanded according to the needs of users);

 3. DAC, AVG curves and can be sectioned, sampling point is not restricted, and can make correction and compensation;

 4. Automatic recording inspection process, and can be dynamic playback;

 5. Oblique angle probe (K) automatic calculation;

 6. Two detection methods: peak, edge;

 7. Three kinds of probe mode: single, double, penetration;

 8. High sampling rate, low noise;

 9. Echo frequency analysis.

 10. Five-range repetition frequency settings

Auxiliary function :

1.    Automatic gain, echo envelope, peak memory function to improve the detection efficiency;

2.    Automatic display of the defect echo location (Depth-d, level-p, distance-s, amplitude-H);

3.    Free switching of three scales (Depth-d, level-p, distance-s,);

4.    Angle and the K value of two input methods;

5.    Gate alarm;

6.    In both Chinese and English operation interface.

Characteristics of the instrument :

1.    Communication with the computer, the realization of computer data management;

2.    Can export Excel format, A4 paper inspection report;

3.    Can be upgraded instrumentation system using the PC end of the communication software;

4.    High performance environmental safety of lithium battery can work continuously 10 hours;

5.    IP65 standard aluminum magnesium alloy shell, durable, waterproof and dustproof, anti-interference ability is excellent;

6.    Large screen super bright display, adjustable brightness, suitable for light, weak light environment;

7.    Fast knob adjustment, convenient operation.

Technical parameter :

Title

Technical Data

The scanning range (mm):

0~10000

Horizontal linear error

≤ 0.1%

Vertical linearity error:

≤ 3%;

Flaw detection sensitivity:

≥ 62dB (deep 200mm φ 2 flat-bottomed
hole)

Dynamic range:

≥ 32dB

Resolution:

≥ 40dB

Frequency range:

0.5 ~ 20 (MHz)

Gain control (dB):

0~130

Material velocity:(m/s)

100 ~ 20000

Echo suppression:

0 ~ 80%

Working temperature: (°C)

-27 ~ 70

Dimensions: (mm)

225*170*50

Weight (Kg):

1.8



Standard Configuration :

List of standard configurations :

Designation

Quantity

Main unit

1

1.5A/9V power adapter

1

probe connecting cable

2

Carrying case

1

Instruction manual

1

Straight probe

10mm 4MHz (One)

Angle probe

8×9 60°4MHz (One)

Communication software for PC

1 set



CE certificate :

 NDT equipment HST800 Digital Portable Automatic Ultrasonic Flaw Detector / Ultrasonic Test Equipment
