Specifications
CDX-II Multi-functional Magnetic Particle Flaw Detector /non destructive testing magnetic particlesCDX-II Multi-functional Magnetic Particle Flaw Detector /non destructive testing magnetic particles
1.function

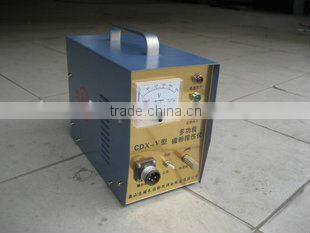

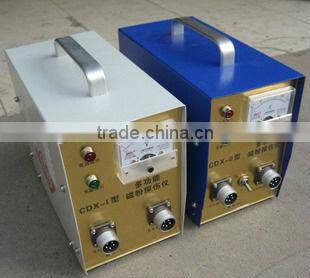

CDX-II multipurpose magnetic particle flaw detector is our newly-developed equipment for the testing of casting quality using magnetic particles. It is featured by complete functions, quick flaw detection, high sensitivity, ease of operation, lower rate of failures and easy maintenance. Its highly integrated electric circuit makes one instrument perform all the functions of several ones. It can be fitted with three types of probe-A, D, O and E with adjustable output current to meet the requirements for different sensitivity.
This machine adopts SCR trigger circuit. All electronic components are selected strictly, which ensures stable and reliable working performance and low failure rate. This machine outputs safety voltage, suitable for places which do not allow high voltage equipments.

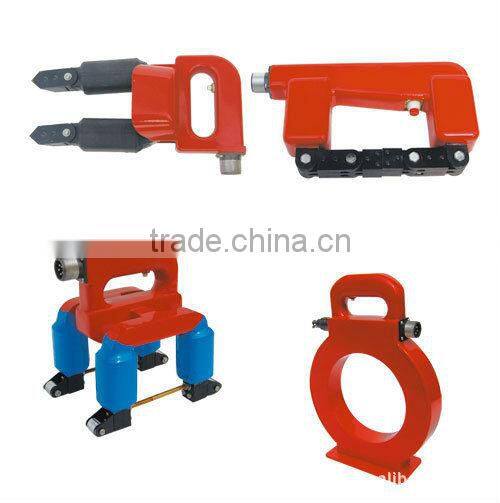

1) A probe
It is also named horseshoe probe or weld probe and features a movable inclined magnetic head. It has one working lamp and is especially applicable for partial AC or DC flaw detection of interior/exterior angles of irregular surfaces and work pieces. The pole distance is 20-160mm; hoisting capacity: AC≥5kg and DC≥18kg; weight: 1kg. This kind of probe is adopted by the Horseshoe Magnetic Yoke Tester or Angle Weld Tester. It features a wide scope of application with the movable probe.
2) D probe
It is also called electromagnetic yoke probe with various turning joints and great magnetization strength. It can be used for AC or DC flaw detection of plane and curved surface work pieces. Polar distance:50-200mm; lifting power: AC≥6kg,DC≥18kg; weight:2.5kg.
3) O probe
It is also called ring probe with an internal diameter of 150mm and center field ≥180Oe.Weight:2.5kg. It is designed on the principle of forming a strong magnetic field by energizing a coil and is suitable for sectional fault detection or demagnetization of complicated work pieces including axles, bars, pipes and vanes.
4) E probe
It is also called cross magnetic yoke probe or rotating-field probe. Different from D-shaped and A-shaped probe, it can conduct omnibearing magnetization flaw detection at a time. The equipped working lamp ensures users to work with enough light; the equipped roller ensures easy operation and high working efficiency.
Polar distance: 110mm,lifting power: AC≥7kg and weight:3kg.
2. main technical parameters
1) A probe
Pole distance: 20-160mm;
hoisting capacity: AC≥5kg and DC≥18kg;
power supply: AC=38V,DC=9V
Weight: 1kg.
2) D probe
Polar distance: 50-200mm (adjustable);
hoisting capacity: AC≥6kg, DC≥18kg(without joint);
working current: ≥8A
working voltage: AC=38V, DC=9V
Weight: 2.5kg.
3) O probe
Center magnetic field: 180Oe
Working voltage: AC=38V
Internal diameter: 150mm
Weight: 2.5kg
4) E probe
Hoisting capacity: ≥12Kg
Polar distance: 110mm
Working current: ≥7A
Flaw detecting speed: 6m/min
Working voltage: 38Vx2
Weight: 3.0 kg
5) Main frame
power supply: 220V±10% 50Hz 5A
Dimension: 262×130×228mm
Weight: 6.0kg
CDX-II Multi-functional Magnetic Particle Flaw Detector /non destructive testing magnetic particles
CDX-II Multi-functional Magnetic Particle Flaw Detector /non destructive testing magnetic particles

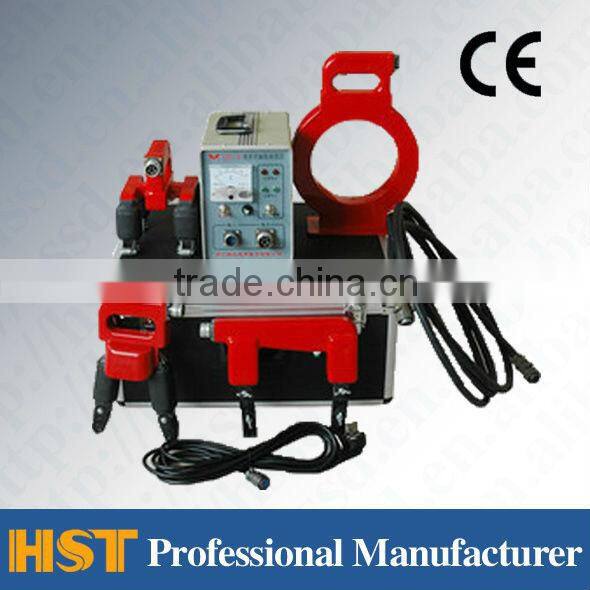

CE Certificat
