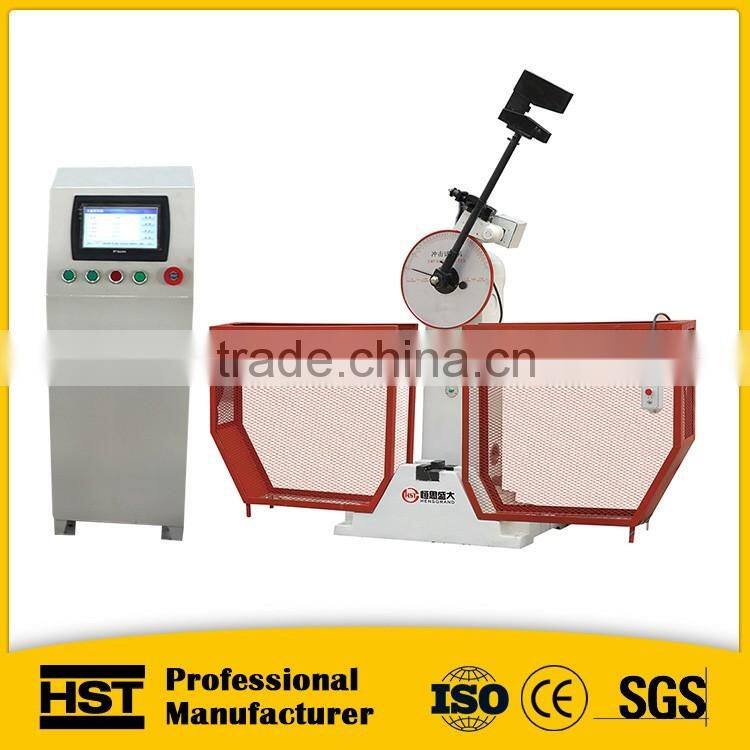

LCD touching screen display Pendulum 500J impact testing machine price
Contact: Sunny Whatsapp/Line/Phone: +86-15589960023
1. Application
JBS series LCD touching screen display Pendulum impact tester is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.
This series tester is operated semi-automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.
2. Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007
3. Main Technical Specifications:
Model |
JBS-300B |
JBS-500B |
JBS-800B |
||
impact energy |
150/300J |
250/500J |
500/800J |
||
|
The distance between the pendulum shaft and impact point |
750mm |
850mm |
800mm |
||
Impact speed |
5.2m/s |
5.4 m/s |
5.9m/s |
||
Pre-rising angle of the pendulum |
150° |
||||
Specimen bearer span |
40+0.2mm |
||||
Round angle of the jaw |
R1-1.5mm |
||||
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
||||
Angle accuracy |
0.1° |
||||
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
||||
Power supply |
3phs, 380V, 50Hz Or 220V,60Hz |
||||
Dimensions (mm) |
2124 x 600 x 1340 |
2200 ×650 ×1960 |
2450 x 1200 x 2455
|
||
Net Weight (kg) |
450 |
650 |
2300 |
||
4. Features:
4.1 Pendulum rising, impact, free releasing is realized as automatically by micro control meter or remote control box;
4.2 Safety pin guaranties the impact action, standard protection shell to avoid any accident.
4.3 Pendulum will automatically rising and ready for next impact action after specimen breakout.
4.4 With two pendulums (big and small), LCD touching screen display the energy loss, impact tenacity, rising angle, and test average value, meantime the dial scale show test result as well.
4.5 Built-in micro printer to print test result.
5. Configurations:
5.1 Main unit----------1 set
5.2 Pendulum
JBS-300B |
JBS-500B |
JBS-800B |
150J/300J--2 pcs |
250J/500J--2 pcs |
500J/800J--2 pcs |
5.3 Span specimen plate (L = 40mm)----1 pc
5.5 Specimen centering plate (L = 40mm)(U, V)----1 pc
5.6 Stripping attachment----1 pc
5.7 Internal hexagonal wrench (S=12mm)---1 pc
5.9 Anchor bolts (M16x300mm)---4 pcs
5.10 Impact testing security guards----1 pc
5.11 Touching screen control panel/ PC software
LCD touching screen display Pendulum 500J impact testing machine price
Lifelong after-sales service & maintenance;
24 hours’ consult pre-sale on line or by Phone
Overseas training, installation is avaliable.
Jinan Hensgrand Instrument Co., Ltd. was established in 2001, is specialized in developing and manufacturing of testing equipments. The machiens are designed to test mechanical property of metal, non-metal and composite materials.
Our main products are Hydraulic Universal Test Machine, Electronic Universal Test Machine, Compression Testing Machine, Spring Testing Machine, Impact Testing Machine, Torsion Testing Machine, Hardness Tester, Testing Machine Accessories, etc.
LCD touching screen display Pendulum 500J impact testing machine price
LCD touching screen display Pendulum 500J impact testing machine price
LCD touching screen display Pendulum 500J impact testing machine price
1.Are your company a trading one or a factory?
Factory + trade (integration),15 years focusing on test instruments field,6 years exporting experience.
2.After an order is placed, when to deliver?
Generally about 25 days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in
a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate.
All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
