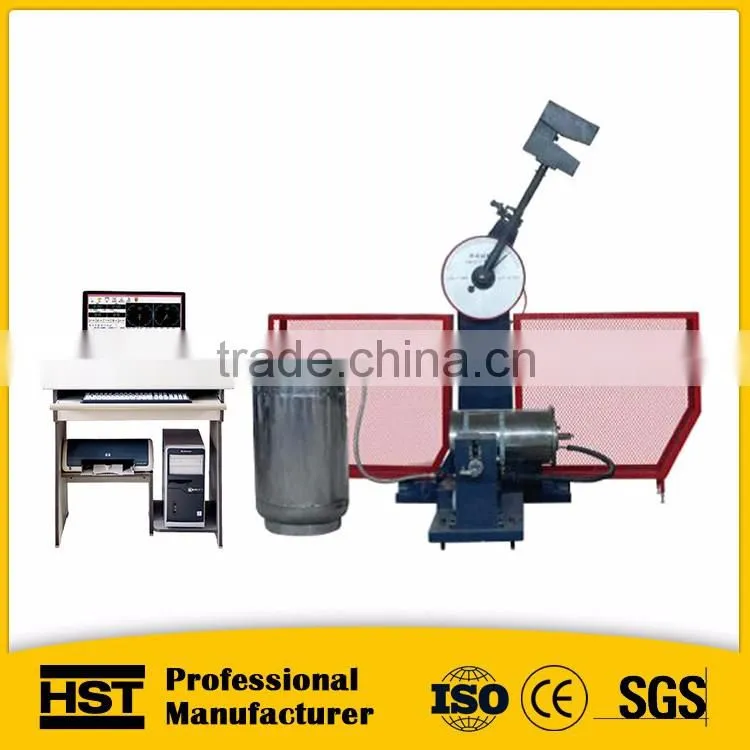

JBDW -C Series 300J Automatic impact tester price with low temperature chamber
Contact: sunny Whatsapp/Line/Phone: +8615589960023
1. Application:
JBDW-C type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load. It’s a necessary testing machine, not only used in the metallurgy, machine manufacture etc areas, but also used for the science research.
2. Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.
3. Features:
3.1 Cooling by liquid nitrogen refrigeration
3.2 Which adopts PC computer control, this machine can auto-complete the following actions: rising pendulum, hanging pendulum, sending specimen, positioning, impacting,temperature conditioning
3.3 After impacting the specimen, the machine can raise pendulum with surplus energy automatically so as to be ready for the next test
3.4 PC machine can display material impact absorption power, impact toughness, pendulum raising angle and test average value, and can print the test data and the average value of the test.
4. Main Technical Specifications:
Model |
JBDW-300C |
JBDW-500C |
||
impact energy |
150J |
300J |
250J |
500J |
Value of every grid |
2J |
1J |
5J |
2.5J |
|
Moment of pendulum(N.m)
|
160.7695
|
80.3848
|
267.9492
|
133.9746
|
|
The distance between the pendulum shaft and impact point |
750mm |
850mm |
||
Impact speed |
5.2m/s |
5.4 m/s |
||
Pre-rising angle of the pendulum |
150° |
|||
Specimen bearer span |
40+0.2mm |
|||
Round angle of the jaw |
R1-1.5mm |
|||
Round angle of impact edge |
R2-2.5mm,R8±0.05(special order)mm |
|||
Angle accuracy |
0.1° |
|||
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
|||
Thickness of impact knife |
16mm |
|||
Dip angle of supporting surface of supports |
11°
|
|||
Cooling way |
liquid nitrogen refrigeration |
|||
Capacity of sample box |
10 |
|||
Range of low temperature |
room tempeature-196°C |
|||
Precision of controlling temperature |
fluctuation ±1.5°C grades 2°C
|
|||
Speed of sending specimen |
≤2S |
|||
Power supply |
3phs, 380V, 50Hz Or 220V,60Hz |
|||
Dimensions (mm) |
2200 ×1500×1900 |
2200 ×1500×1900 |
||
Net Weight (kg) |
850 |
950 |
||
Lifelong after-sales service & maintenance;
24 hours’ consult pre-sale on line or by Phone
Overseas training, installation is avaliable.
Jinan Hensgrand Instrument Co., Ltd. was established in 2001, is specialized in developing and manufacturing of testing equipments. The machiens are designed to test mechanical property of metal, non-metal and composite materials.
Our main products are Hydraulic Universal Test Machine, Electronic Universal Test Machine, Compression Testing Machine, Spring Testing Machine, Impact Testing Machine, Torsion Testing Machine, Hardness Tester, Testing Machine Accessories, etc.
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
