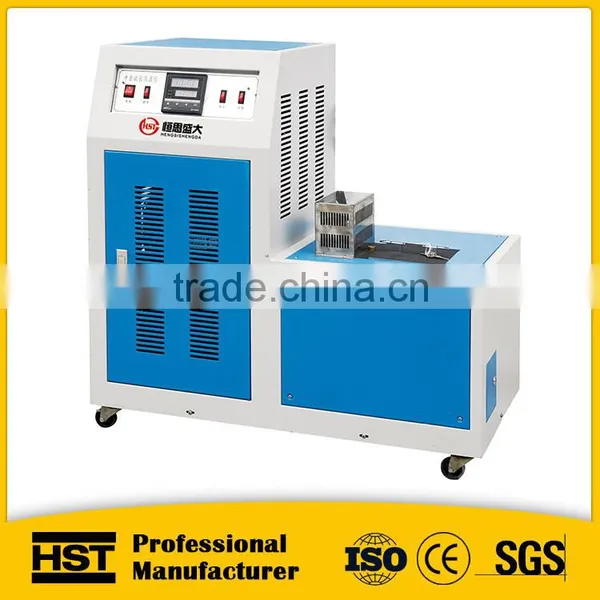

-40 Degree Centigrade Low Temperature Chamber for Charpy Impact TestUS$ 800 - 1,500MOQ: 1 Set

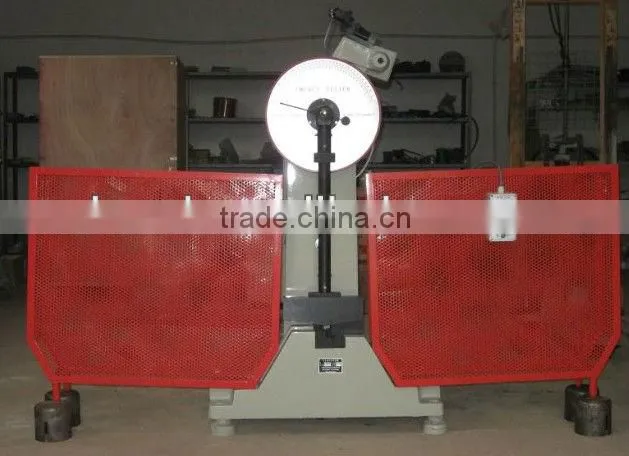

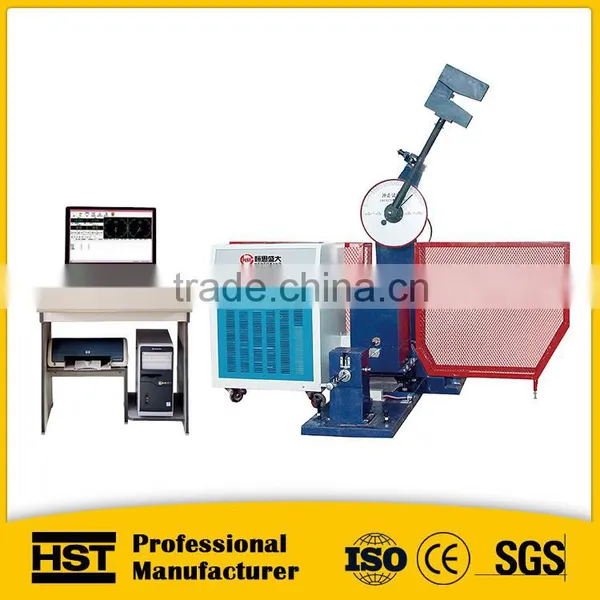

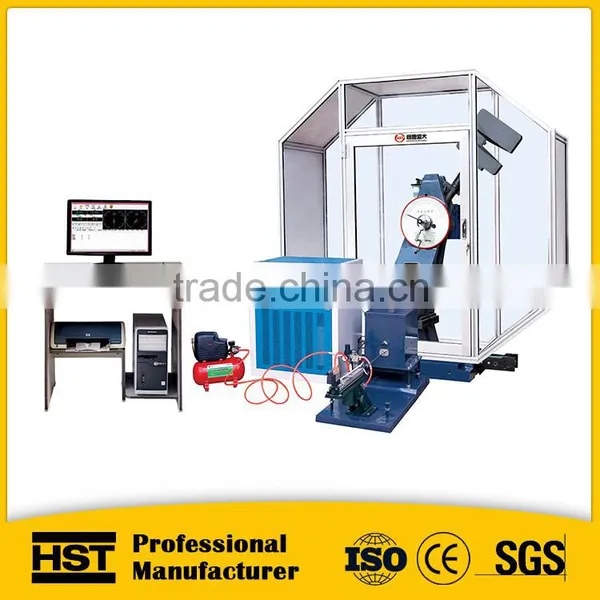

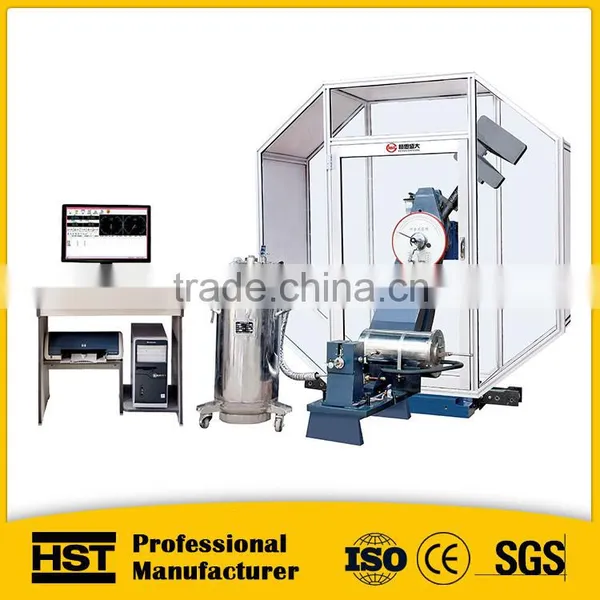

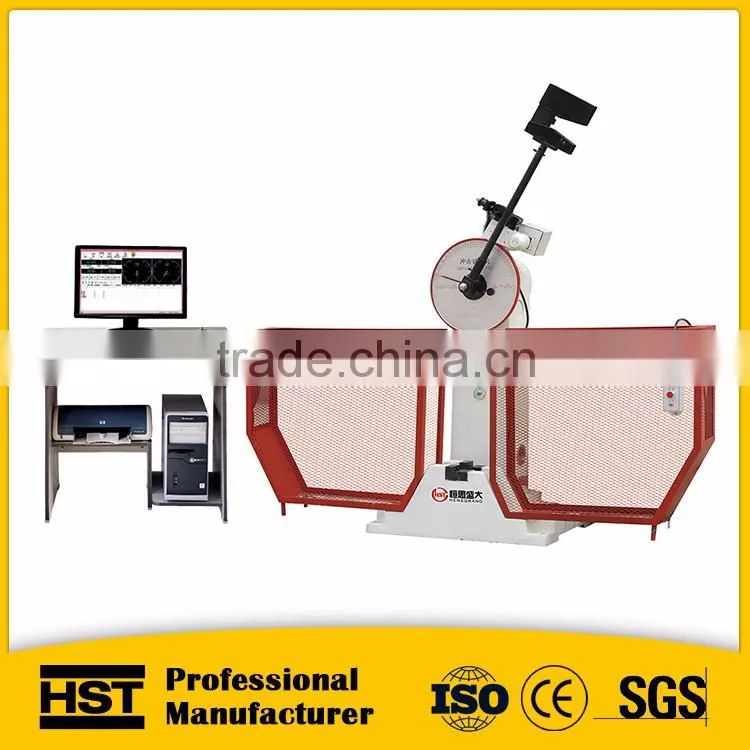

JBW-500 500J Computer Display impact charpy test machine price
Contact me:Sunny mobile/wechat/whatsapp:+86-15589960023 Skype:jessica-hssd
1.Application
JBW series Computer Monitor Pendulum Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load. Carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program, and the results can be monitored, stored and printed out. Control box or computer program control is alternative operating method. JB-W series impact testers are adopted by many institutes and high-tech enterprises
2. Standards
ISO148-2006, ASTM E23, GB/T3808-2002 ,GB/T229-2007
3. Main Technical Specifications:
Model |
JBW-300B |
JBW-500B |
JB-800B |
|
display |
computer control automatic |
|||
impact energy |
150/300J |
250/500J |
500/800J |
|
|
The distance between the pendulum shaft and impact point |
750mm |
800mm |
||
Impact speed |
5.2m/s |
5.4 m/s |
5.9m/s |
|
Pre-rising angle of the pendulum |
150° |
|||
Specimen bearer span |
40+0.2mm |
|||
Round angle of the jaw |
R1-1.5mm |
|||
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
|||
Angle accuracy |
0.1° |
|||
Standard specimen dimension |
10mm×10mm×55mm |
|||
Sample box capacity |
10 pcs |
|||
Power supply |
3phs, 380V, 50Hz Or 220V,60Hz |
|||
Dimensions (mm) |
2124 x 600 x 1340 |
2200 ×650 ×1960 |
2450 x 1200 x 2455 |
|
Net Weight (kg) |
450 |
650 |
2300 |
|
4. Features:
4.1 Fully automatic, sample feeding, auto position the sample; high efficiency;
4.2 Pendulum rising, impact, sample feeding, position, free releasing is realized automatically by easy PC mouse click;
4.3 Safety pin guaranties the impact action, standard protection shell to avoid any accident.
4.4 Pendulum will automatically rising and ready for next impact action after specimen breakout.
4.5 With two pendulums (big and small), PC software to display the energy loss, impact tenacity, rising angle, test average value etc. test data and result, also the curve display available; with calculation and report printing function. The dial scale can show test results too.
5. Configurations:
5.1 Main unit----------1 set
5.2 Pendulum
JB-300B |
JB-500B |
JB-800B |
150J/300J--2 pcs |
250J/500J--2 pcs |
500J/800J--2 pcs |
5.4 Span specimen plate (L = 40mm)----1 pc
5.5 Specimen centering plate (L = 40mm)(U, V)----1 pc
5.6 Stripping attachment----1 pc
5.7 Internal hexagonal wrench (S=30mm)---1 pc
5.8 Anchor bolts (M16x300mm)---4 pcs
5.9 Impact testing security guards----1 pc
5.10 PC software & PC& Printer

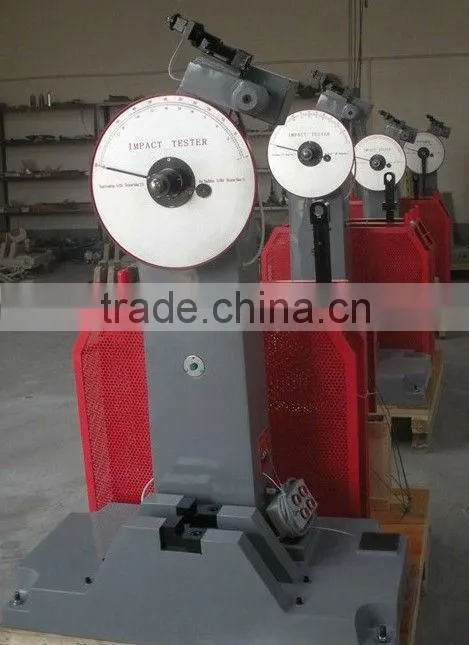

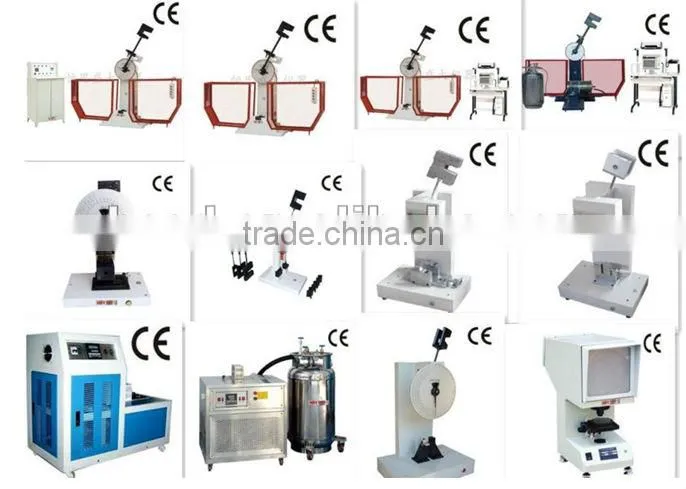

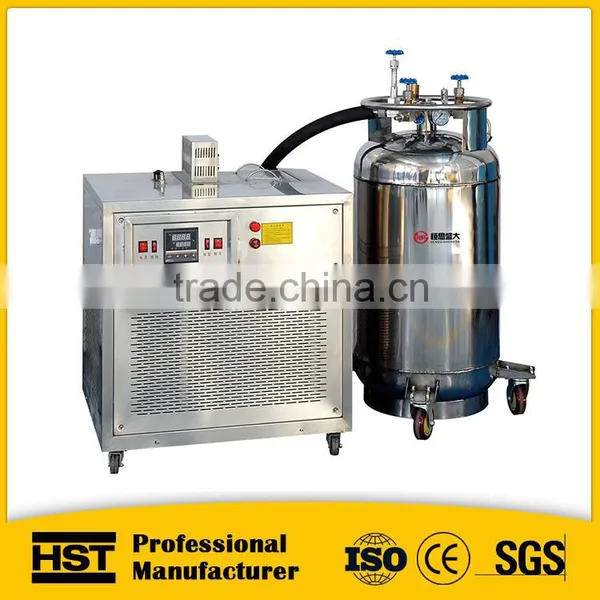

6.Related machines:
JBW-500 250J 500J Computer Display impact charpy test machine price
JBW-500 250J 500J Computer Display impact charpy test machine price
CE Certificate
Our customers:
Our services:
One year guarantee of the whole machine
24 hours techonical support by e-mail
calling or door-to-door service
RFQ:
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional aftersale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.
