JBDW-Y 300J PC Control Low-temperature Automatic impact testing machine price
- 900 Set / Sets per Month
- Qingdao or other port in CHINA
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shandong, China | Brand Name: | HST | Model Number: | JBDW-300Y |
Power: | Electronic | Usage: | Impact Testing Machine |
Product Description

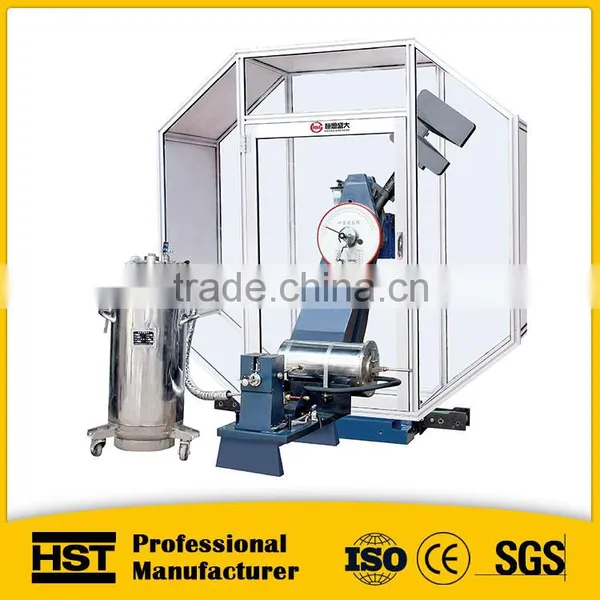

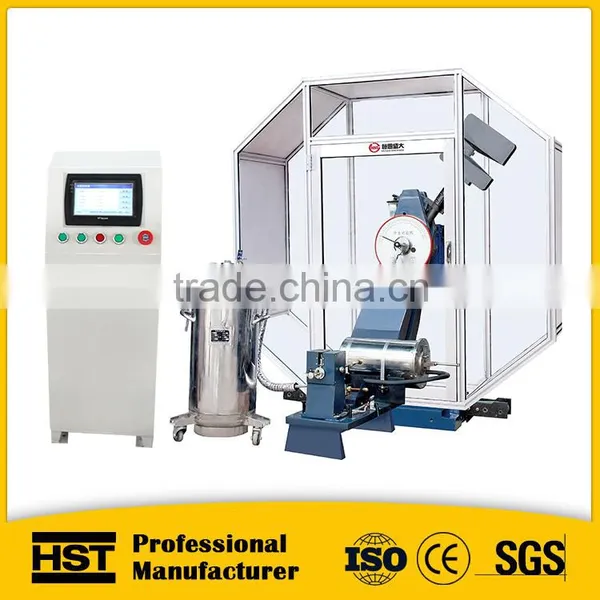

JBDW-300Y 300J PC Control Low-temperature Automatic impact testing machine price
Contact: Sunny Whatsapp/Line/Phone: +8615589960023
1. Application:
JBDW-Y type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load. It’s a necessary testing machine, not only used in the metallurgy, machine manufacture etc areas, but also used for the science research.
2. Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.
3. Features:

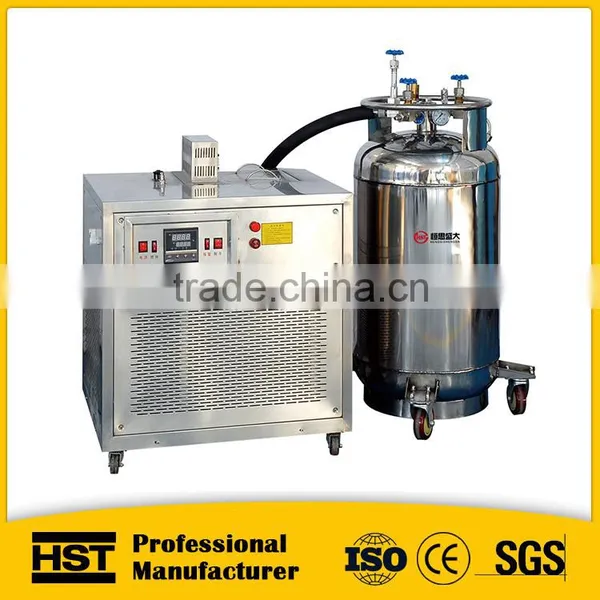

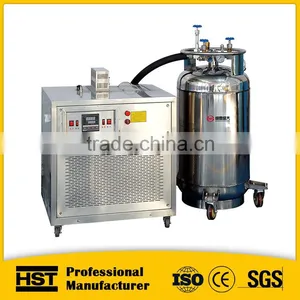

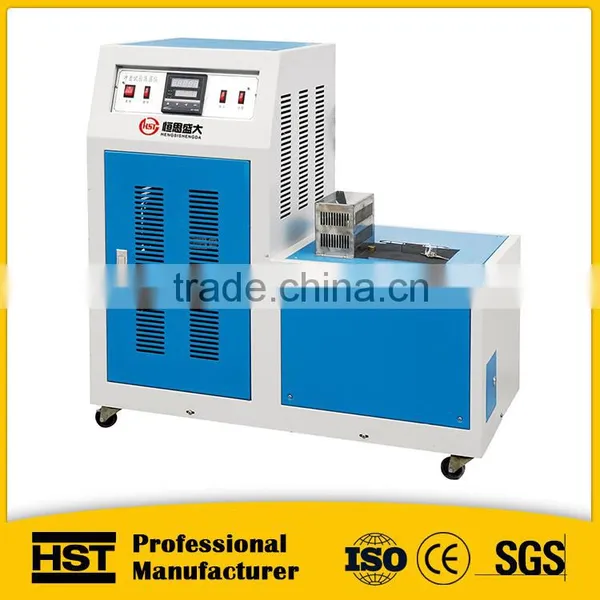

3.1 Low temperature system uses refrigeration compressor technology to achieve uniformity of the sample auto-cooling, with the use of heat balance principle and cycle mixing method.
3.2 Which adopts singlechip control, this machine can auto-complete the following actions: rising pendulum, hanging pendulum, sending specimen, positioning, impacting,temperature conditioning
3.3 After impacting the specimen, the machine can raise pendulum with surplus energy automatically so as to be ready for the next test
3.4 Can display material impact absorption power, impact toughness, pendulum raising angle and test average value, and can print the test data and the average value of the test.
4. Main Technical Specifications:
Model | JBDW-300Y | JBDW-500Y | ||
impact energy | 150J | 300J | 250J | 500J |
Value of every grid | 2J | 1J | 5J | 2.5J |
Moment of pendulum(N.m) | 160.7695 | 80.3848 | 267.9492 | 133.9746 |
The distance between the pendulum shaft and impact point | 750mm | 800mm | ||
Impact speed | 5.2m/s | 5.4 m/s | ||
Pre-rising angle of the pendulum | 150° | |||
Specimen bearer span | 40+0.2mm | |||
Round angle of the jaw | R1-1.5mm | |||
Round angle of impact edge | R2-2.5mm,R8±0.05(special order)mm | |||
Angle accuracy | 0.1° | |||
Standard specimen dimension | 10mm×10(7.5/5)mm×55mm | |||
Thickness of impact knife | 16mm | |||
Dip angle of supporting surface of supports | 11°
| |||
Cooling way | compressor | |||
Capacity of sample box | 20 | |||
Range of low temperature | 0 --80°c | |||
Precision of controlling temperature | fluctuation ±0.5°C grades 1°C | |||
Speed of sending specimen | ≤2S | |||
Power supply | 3phs, 380V, 50Hz Or 220V,60Hz | |||
Dimensions (mm) | 2200 ×1500×1900 | 2200 ×1500×1900 | ||
Net Weight (kg) | 850 | 950 |
5. Standard Accessories
5.1 Main unit----------1 set
5.2 Pendulum
JB-300B | JB-500B |
150J/300J--2 pcs | 250J/500J--2 pcs |
5.3 Span specimen plate (L = 40mm)----1 pc
5.4 Specimen centering plate (L = 40mm)(U, V)----1 pc
5.5 Stripping attachment----1 pc
5.6 Internal hexagonal wrench (S=30mm)---1 pc
5.7 Anchor bolts (M16x300mm)---4 pcs
5.8 Impact testing security guards----1 pc
5.9 Low temperature device---1 pc
5.10 Automatic sample sending and automatic positioning device---1 pc
5.11 PC Testing-software ---1 pc
5.12Lenovo computer---1 set
5.13 HP Printer---1 set
6. Related machines:
Lifelong after-sales service & maintenance;
24 hours’ consult pre-sale on line or by Phone
Overseas training, installation is avaliable.
Jinan Hensgrand Instrument Co., Ltd. was established in 2001, is specialized in developing and manufacturing of testing equipments. The machiens are designed to test mechanical property of metal, non-metal and composite materials.
1.Are your company a trading one or a factory?
Factory + trade (integration),15 years focusing on test instruments field,6 years exporting experience.
2.After an order is placed, when to deliver?
Generally about 25 days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in
a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate.
All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
