Specifications
1. Configurated with high low temperature box2. High Low Temperature Tensile Tester
3. Equipped with universal tester

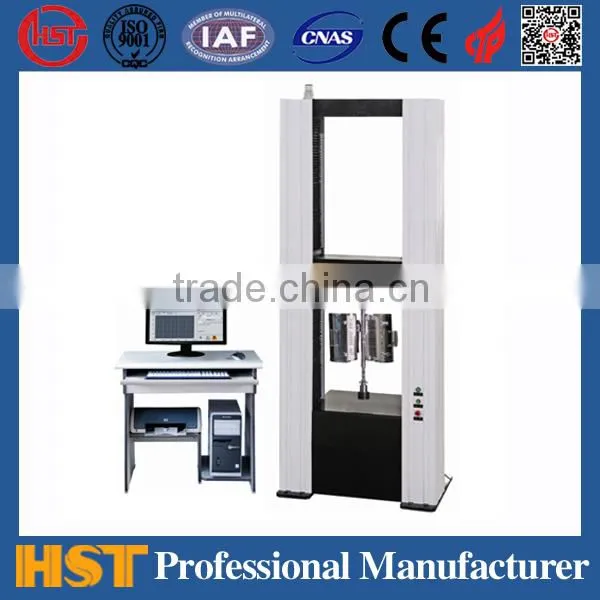

WDW-G HST Brand Universal High Low Temperature Tensile Tester
1. Application:
Applicable to the tensile and creep relaxation strength test of the round specimen, rectangular specimen and tubular product and other product under GB/T4338 " Metal materials high temperature tensile test method, HB5195"Metal high temperature tensiletest method", GB/T2039"Tensile creep
rupture and test method", HB5150"Metal high temperature tensile durable test method".
The high temperature test furnace adopting cylinder open structure or monolithic construction, normally is three step control.
2. Main Specifications:
Model |
WDW-1/2/5/10//30/50/100/ 200/300/500/600KN G |
||
Max test load |
1/2/5/10//30/50/100/200/ 300/500/600KN |
||
Installation way |
vertical type |
||
Working temperature |
-50°C~1100°C (Can customize) |
||
Long-term working temperature |
1000°C |
||
Heating element material |
FeCrAl resistance wire |
||
Furnace wire diameter |
φ1.5mm |
||
Thermometric element |
K type temperature measuring thermocouple (including special compensation conductor) |
||
Soaking zone length |
100mm |
||
Heating sections quantity |
3 |
||
Temperature measuring point number |
3 |
||
Temperature measuring sensitivity |
0.1°C |
||
|
Temperature measuring accuracy
|
0.2% |
||
Temperature accuracy |
Test temperature (°C)
|
temperature departure |
temperature gradient |
|
|
GB/T4338 |
|
|
≤300~600 |
±3 |
|
|
≥600~900 |
±4 |
|
|
>900 |
±5 |
|
Heath inner diameter |
Diameter x length: φ80 mm×360mm |
||
Dimension |
Diameter x length:φ300×450mm |
||
Tensile jig, bar sample |
M12×φ5 |
||
Temperature measurement and control system |
HMI human computer interface |
||
Working voltage |
380v |
||
Heating power |
Temperature limit power 5kw |
||
Thermostat specifications |
High precision temperature control meter, multilevel PID adjust, interval 1°C, accuracy: 0.5°C |
||
Temperature fluctuation |
±1°C |
||
Uniform temperature zone length |
More than 150mm |
||
Size of oven body |
Hearth: depth * width* height 650*240* 400mm Overall size:1000*390*600mm |
||
Material |
Stainless steel inner shell, long durability, good anti-corrosion performance |
||
3. Feature:
Mainly composed by test electric stove, temperature controller, high temperature rod, high temperature chuck, etc.
Can do high temperature tensile test of metal and non metal materials. If move high temperature
furnace away. normal temperature test, just
4.Temperature controll measurementt system
It is composed by Temperature measurement component, central computing unit(PLC),
temperature detection instrumentation(PID adjust, with AT function) and HIM, etc.
Real-time monitoring temperature data vibration, display curve, and record of curve and
invoking function
Human set the abnormal data Add short message sending module,send a police report to the stated mobile phone
Configuration:
Item |
QTY |
Remarks |
High temperature furnace |
1PC |
|
K-Thermocouple |
3PC |
|
Temperature control meter |
1PC |
|
Connecting rod, hot rod and fittings |
1SET |
|
High temperature fixture |
1SET |
|
Extensometer |
2 PC |
|
Cooling system |
1 SET |
optional |
Rotating arms |
1PC |
High Low Temperature Tensile Tester
WDW Series of CE Certificate:
