1200C HST Brand Universal High Temperature Universal Tensile Testing Machine
- 100 Set / Sets per Month
- Qingdao China
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | Hensgrand | Model Number: | WDW-G |
Power: | Electronic | Usage: | Tensile Testing Machine |
Product Description
Specifications
1. Configurated with high low temperature box2. High Temperature Creep Testing Machine
3. Max test force: 5/10/20....
WDW-G 1200C HST Brand Universal High Temperature Universal Testing Machine
1. Application:
Applicable to the tensile and creep relaxation strength test of the round specimen, rectangular specimen and tubular product and other product under GB/T4338 " Metal materials high temperature tensile
test method, HB5195"Metal high temperature tensiletest method", GB/T2039"Tensile creep
rupture and test method", HB5150"Metal high temperature tensile durable test method".
The high temperature test furnace adopting cylinder open structure or monolithic construction, normally is three step control.
2. Main Specifications:
Model | WDW-5 | WDW-10 | WDW-20 | WDW-30 | WDW-50 | WDW-100 | ||
Max. Load | 5kN 500kgf 1120lbf | 10kN 1000kgf 2240lbf | 20kN 2000kgf 4480lbf | 30kN 3000kgf 6720lbf | 50kN 5000kgf 11200lbf | 100kN 10000kgf 22400lbf | ||
Load accuracy | ≤±1% | |||||||
Load range | 2%-100% of full scale | |||||||
Load resolution | 1/200000 of full scale | |||||||
Disp. resolution | 0.01mm | |||||||
Test speed | 0.05-500mm/min | 0.05-300mm/min | ||||||
Tensile space | 750mm|30in | 650mm|25.6in | 650mm|25.6in | |||||
Comp. space | 750mm|30in | 650mm|25.6in | 650mm|25.6in | |||||
Test width | 375mm | 400mm | 420mm | |||||
Temperature range | 50°C~300°C | |||||||
Thermostat specifications | High precision temperature control meter, multilevel PID adjust, interval 1°C, accuracy: 0.5°C | |||||||
Temperature fluctuation | ±1°C | |||||||
Temperature gradient | Better than 3°C | |||||||
Heating up time | Room temperature to 300°C, less than 50 minutes | |||||||
Uniform temperature zone length | More than 150mm | |||||||
Size of oven body | Hearth: depth 650mm×width 240mm×height400mm Overall size:1000mm×390mm×600mm | |||||||
Material | Stainless steel inner shell, long durability, good anti-corrosion performance | |||||||
Structure | Large observation window, easy operation, with guide rail | |||||||
High temperature box power | 2kW/AC380V/50Hz | |||||||
Dimension | 730×430×1700mm | 755×480×1780mm | 825×600×1950mm | |||||
Power supply | 220V, 1ph, 0.5kW | 220V, 1ph, 0.75kW | 220V, 1ph, 1kW | |||||
Weight (kg) | 250kg|550lb | 280kg|616lb | 350kg|770lb |
3. Feature:
Mainly composed by test electric stove, temperature controller, high temperature rod, high temperature chuck, etc.
Can do high temperature tensile test of metal and non metal materials. If move high temperature
furnace away. normal temperature test, just
4.Temperature controll measurementt system
It is composed by Temperature measurement component, central computing unit(PLC),
temperature detection instrumentation(PID adjust, with AT function) and HIM, etc.
Real-time monitoring temperature data vibration, display curve, and record of curve and
invoking function
Human set the abnormal data Add short message sending module,send a police report to the stated mobile phone

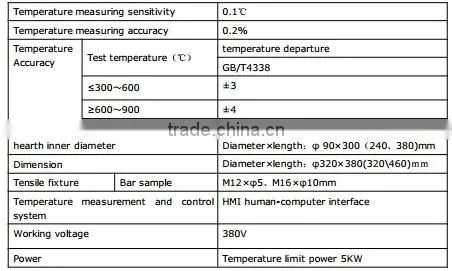

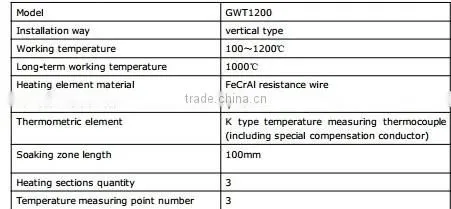

Specification:
Configuration:
Item | QTY | Remarks |
High temperature furnace | 1PC |
|
K-Thermocouple | 3PC |
|
Temperature control meter | 1PC |
|
Connecting rod, hot rod and fittings | 1SET |
|
High temperature fixture | 1SET |
|

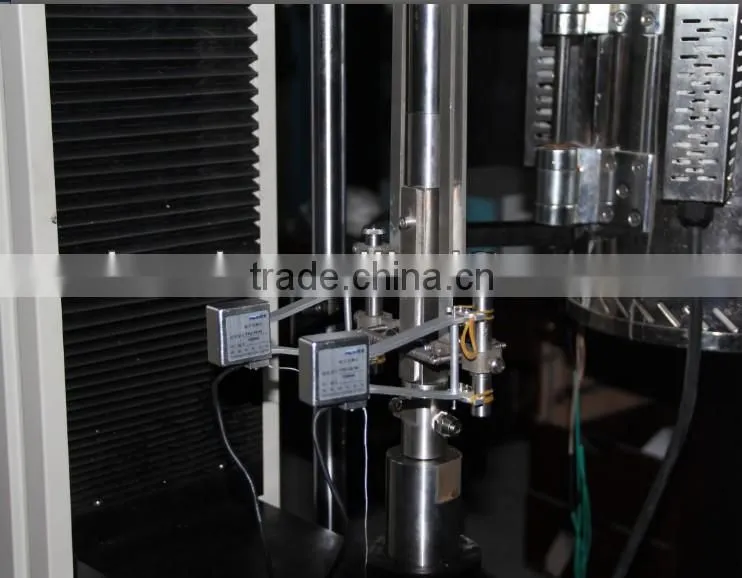

Extensometer | 2 PC |
|
Cooling system | 1 SET | optional |
Rotating arms | 1PC |

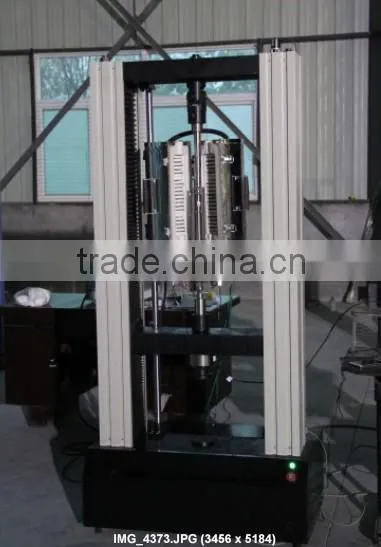

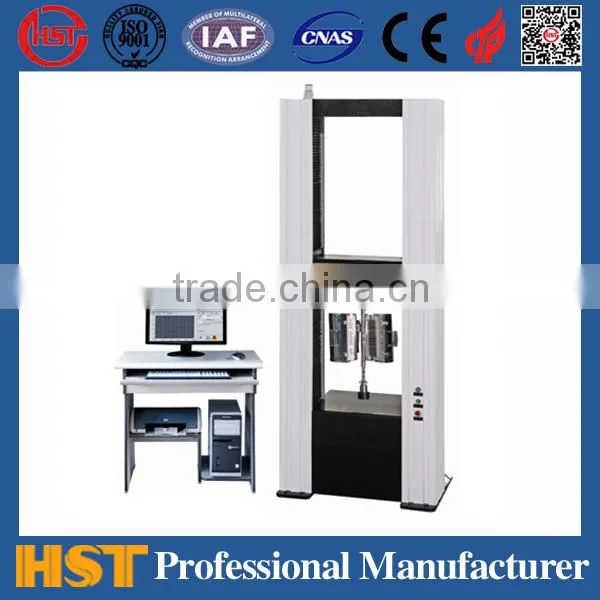

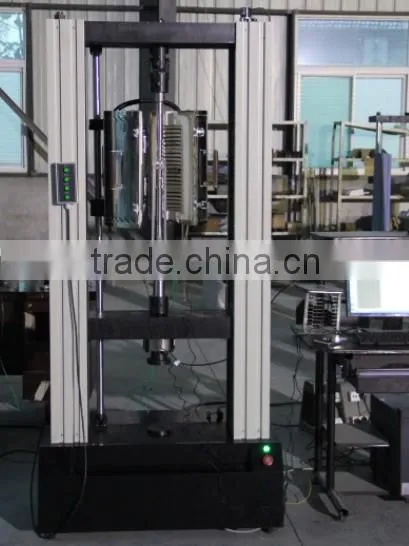

High Temperature Universal Testing Machine

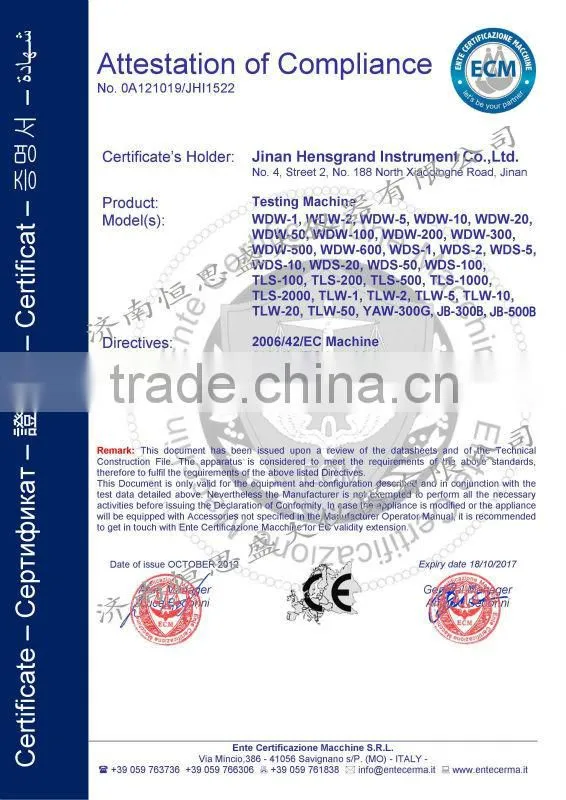

WDW Series of CE Certificate:
