HST-GZW-500D Micro-Computerized Rail Static Bending Testing Machine, 500kN Bend Tester
ALI: cn1510988092
SKYPE: hstbetty009
Phone/Whatsapp/Wechat:+86-15069028022
1. Instroduction
Application: This machine is used for static loading anti caracking tension testing of concrete sleepers (Ⅲ type sleeper,Ushaped sleeper, III type sleeper, fork sleeper, bridge sleeper, wide sleepers, etc.), can quickly and accurately detect static load strength of various sleeper and be able to test the actual carrying capacity of the sleeper.

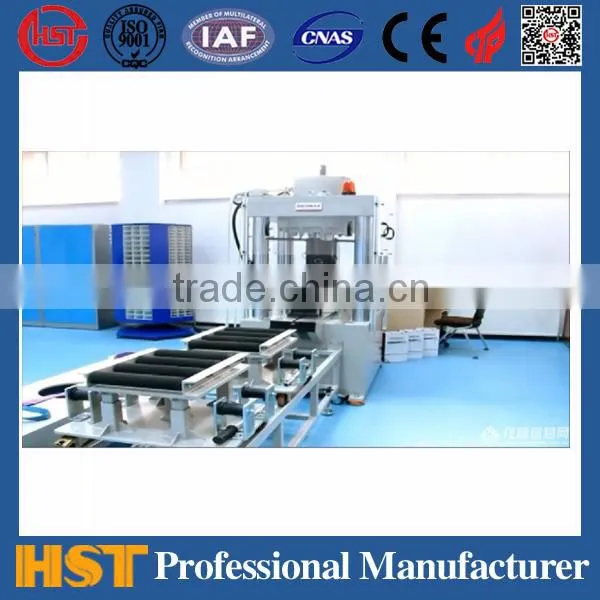

Structure:Mainly composed by the main unit, moving car, feeding track, lifting mechanism, hydraulic system, electrical control system, etc
Working Principle: Lift the sleeper into the small moving car, push the car into the testing machine, useing the positioning ruler to adjust sleepers place to make the load center coincides with the pressure platen center, according to the setting working procedures, oil cylinder with a given loading speed, constant load or Dwell to complete sleeper testing.
2. Standards compliant
GB/T16826-2008 “Electro hydralic servo universal testing machine”
JJG139-1999 "test procedures of tension, pressure, and universal testing machine "
TB / T 1879-2002 "static load cracking Test Method for prestressed concrete sleeper "
JJG (Railway) 158-96 "500kN concrete sleeper static load testing machine test procedures"
Features
Main Unit:
Adopting a four-column structure. Easy handling specimens, good stability.
Main unit is composed by the base, cylinder piston, the upper and lower pressure platen, columns, the beams, the indenter and related parts and other components.
3. Technical Parameter:
NO |
Item |
Technical parameter |
1 |
Max test force(kN) |
500 |
2 |
Test range(kN) |
2%-100%FS |
3 |
Test value accuracy |
≤±1% |
4 |
Max compression space(mm) |
0-450 |
5 |
Distance between four columns(LxW)mm |
850x930 |
6 |
Upper loading span (mm) |
500,600,adjustable |
7 |
Lower loading span (mm) |
600, 700, 800,1500 adjustable |
8 |
Max piston stroke (mm) |
450 |
9 |
Loading rate |
adjustable |
|
10
|
Overall Dimension :L×W×H(mm) |
|
Main Unit (Inlcuding loading frame)(mm) |
3400x1100x2300mm |
|
Servo oil source control cabinet (mm) |
1200x800x1100 |
|
11 |
Power supply |
380V±10% 50Hz,2.0kw |
12 |
Weight(kg) |
≈3000 |
1.Shipping & delivery:
It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
2. Machine' Packaging:
Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
