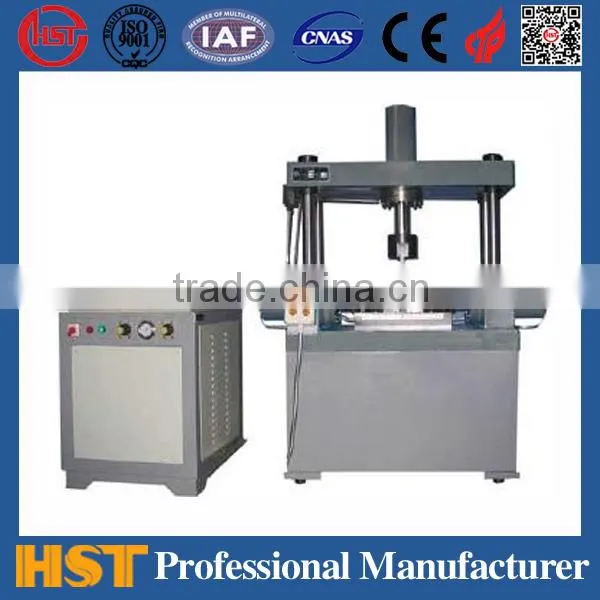

HBT-1000 Series PLC Touch Screen Digital Bending Tester
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
Application:
HBT Series PLC Touch Screen Electro-hydraulic Servo Bending Testing Machine is mainly used for the metallic sheet & round bars bending and pressing test and meets requirements of GB/T232-2010 & ISO7438-2005 Metallic Materials-Bend Test. An axial oil cylinder for bending test is installed inside a crossbeam at the upper end of the frame; two pressing oil cylinders, which are installed on two sides of the frame, adopts synchronous control, are connected with a bending support, with dual functions of adjusting distance between pivots and pressing; a pressure meter indicates the pressure in bending or pressing; the display of force value can have multiple selection, such as the pressure meter, digital display, computer screen display etc. and the tester can also adopt a microcomputer control type to control the applied bending force by an oil feed valve manually or a computer automatically.
Features:
l Load frame: four columns.
l Control mode: computer servo control or manual control.
l Bending & pressing can be finished at the same time.
l Vertical oil piston with stroke position function will be benefit for batch test.
l Span positioning system.
l Protecting functions for over-press, over-load and over
stroke etc.
l With electro-hydraulic servo system, it can realize constant
test load, constant test load speed ratio, and
l constant speed close-loop control, and with functions of auto return, auto control bending angle etc.
Specifications:
Model |
HBT-200 |
HBT-500 |
HBT-1000 |
HBT-2000 |
|
Max. Vertical bending load (kN) |
200 |
500 |
1000 |
2000 |
|
Max. Horizontal pressing load (kN) |
100 |
250 |
500 |
1000 |
|
Span range (mm) |
40-300 |
50-300 |
60-300 |
80-400 |
|
Roller diameter (mm) |
30 |
50 |
60 |
80 |
|
Roller length (mm) |
120 |
160 |
200 |
260 |
|
Piston stroke (mm) |
Vertical |
250 |
300 |
||
Horizontal |
160 |
200 |
|||
Max. Speed (mm/min) |
Vertical |
350 |
180 |
250 |
130 |
Horizontal |
350 |
180 |
230 |
120 |
|
Power supply (kW) |
4.4 |
11 |
|||
Roller diameter available (mm) |
6,8,10,12,14,18,20,24,28,30,32,36,40,44,46,50 ,54,56,60,70,80,90,100,110,120,128,160,180 |
||||
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
♥ More information welcome to contact us now!
And welcome to our company! We display more new design in our showroom.
♥ Main web site: : http://www.
Tel: 86 531-58618759| Fax: 86 531 86113759
