Specifications
1.usage:steel tube bend test2.display bending angle directly and lubricate easily
2. reasonable design of limit position

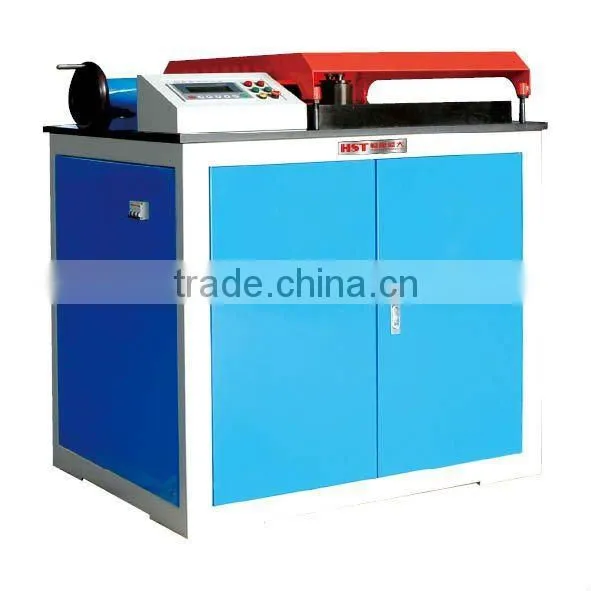

Steel Tube Bend Test Machine
Usage:
This machine is suitable for cold bend test of the steel tube. The main technical parameters accord with GB/T244-2008 <Metallic materials-Tube - Bend test>,GB/T3091-2008<Welded steel pipes for low pressure liquid delivery>.This machine is suitable for bend test of the metallic material rods and bars, the plate, spiral steel, and widely applies in the building materials, the metallurgy, the Scientific research Unit, the universities, colleges and institutes, the quality detection center and the commodity inspection department. It is indispensable ideal testing machines to test the cold bending property of the steel tube .
Main specifications:
Mode |
GG-50 |
GG-65 |
Max bending diam of Steel Tube |
50mm |
60mm |
bending angle |
0° to 120°at will |
|
Rotating speed of working table |
≤20°/s |
|
Distance between the center of two rolls |
165mm |
165mm |
Diameter of the working table |
Φ760mm |
Φ860mm |
Motor power |
1.5kw |
2.2KW |
Standard bending accessory |
Φ20,φ40 |
Φ30,φ50 |
Dimension (mm) |
1200*900*1188 |
1700*1170*1150 |
Weight |
1500kg |
2500kg |
