Specifications
GG-50 Steel Tube Bend Testing MachineCE certificat

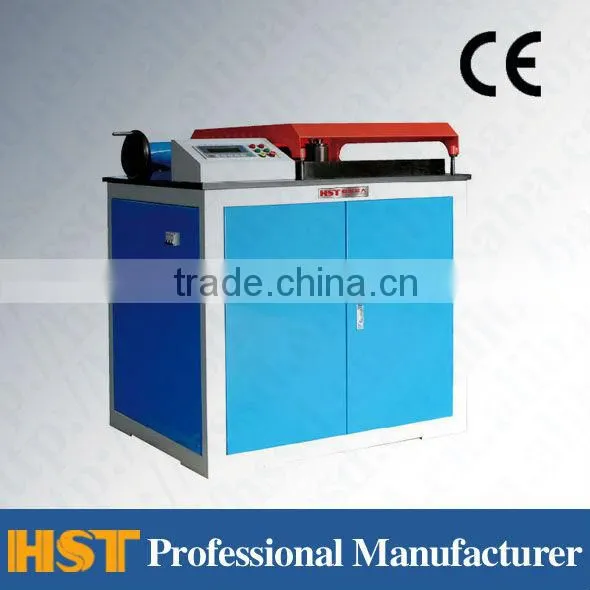

Steel Tube Bend Tester
1.Usage:
This machine is suitable for cold bend test of the steel tube.
Suitable for bend test of the metallic material rods and bars, the plate, spiral steel,
and widely applies in the building materials, the metallurgy, the Scientific research Unit,
the universities, colleges and institutes, the quality detection center and the commodity inspection department.
It is indispensable ideal testing machines to test the cold bending property of the steel tube .
2.Main specifications:
Mode |
GG-50 |
GG-65 |
Max bending diam of Steel Tube |
50mm |
65mm |
bending angle |
0° to 180°at will |
|
Rotating speed of working table |
≤20°/s |
|
Distance between the center of two rolls |
165mm |
165mm |
Diameter of the working table |
Φ760mm |
Φ860mm |
Motor power |
1.5kw |
2.2KW |
Standard bending accessory |
Φ20,φ40 |
Φ30,φ50 |
Dimension (mm) |
1200*900*1188 |
1700*1170*1150 |
Weight |
1500kg |
2500kg |

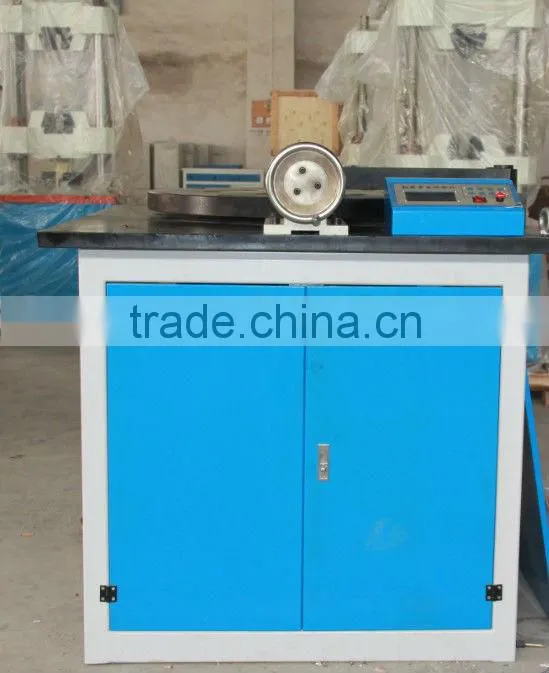

Steel Tube Bend Tester
