Home > Products > Bending Testing Machine > 40mm Rebar Bending Testing Machine /bending machine /bend fatigue testing machine

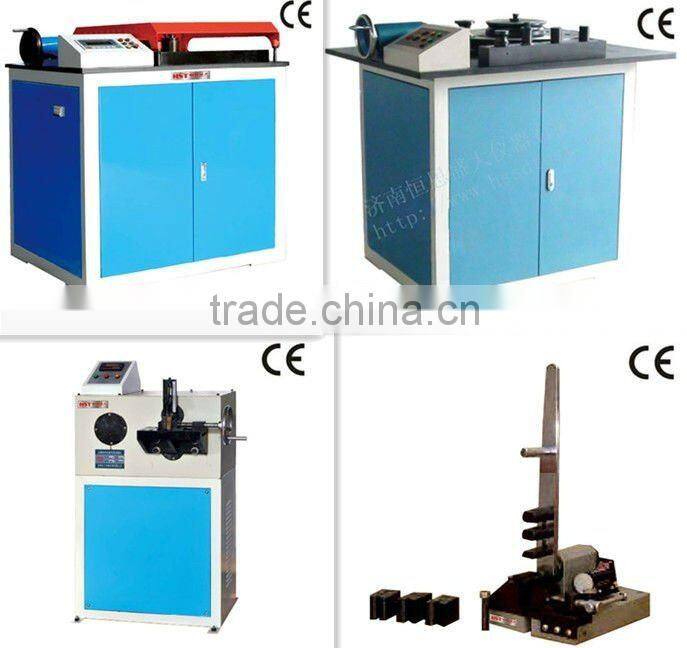

40mm Rebar Bending Testing Machine /bending machine /bend fatigue testing machine
- 300 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | hensgrand | Model Number: | GW-40B |
Power: | Electronic | Usage: | Bending Testing Machine |
Product Description
Specifications
1. Usage:steel bar bending test2. Easy to operate, low noise
3. Large carry capacity
4. Smooth and reliable operation
GW Series Rebar Bending Testing Machine + Steel Bar Tester
Application:
This testing machine can be used to do cold bend and rebend test on plane. The main technical parameters accord with GB1499._22007 <The second part of Steel tube for the reinforcement of concrete: hot rolled ribbed steel bars>, YB/T51262003 <Program of steel bars plane rebend tests> .This machine is suitable for bend test of the metallic material rods and bars, the plate, spiral steel, and widely applies in the building materials, the metallurgy, the Scientific research Unit, the universities, colleges and institutes, the quality detection center and the commodity inspection department. It is indispensable ideal testing machines to test the recurvate character and cold bending property of screw thread steel bar .
The testing machine has many advantages, such as small size, compact structure, easy to operate, low noise, smooth and steady running, display directly bending angle and lubricate easily, especially reasonable design of limit position and easily damaged parts, so it has a long using time.
Main specifications:
Mode | GW-40B | GW-50B | |
Max of bending diam of Steel Bar | 40mm | 50mm | |
Forward bending angle | 0° to 180°at will | ||
Reverse bending angle | 0° to 25°at will | ||
Rotating speed of working table | ≤2.0r/min | ||
Distance between the center of two rolls | 165mm | 165mm | |
Diameter of the working table | Φ580mm | Φ760mm | |
Motor power | 1.5kw | 2.2KW | |
Standard bending accessory | HRB-335/φ6-φ40/or other configuration option | HRB-335/φ6-φ50/or other configuration option | |
Weight | 1500kg | 2500kg |
